4
Installing the Latch Rod
Parts needed for this procedure:
1 Latch rod
1 Hairpin cotter
Procedure

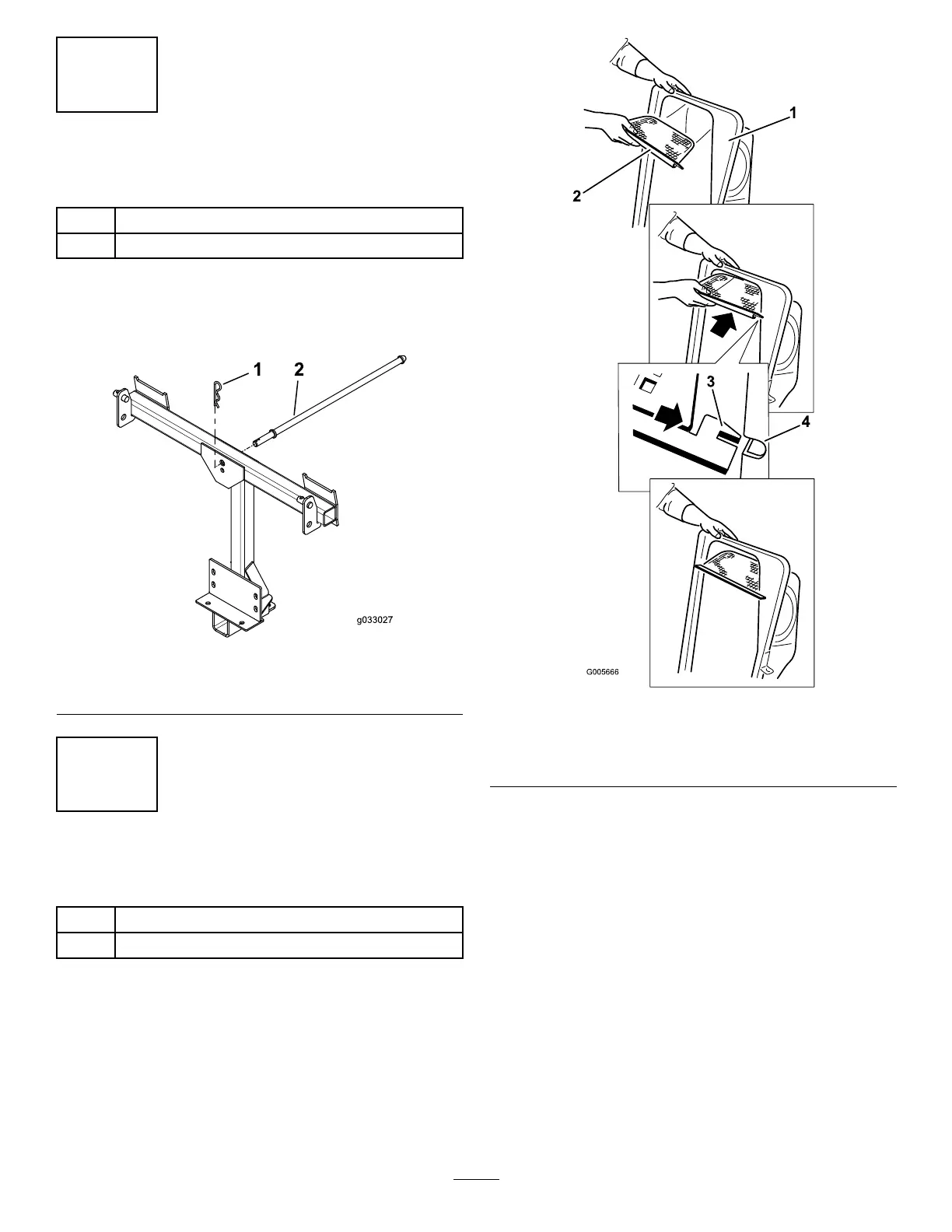

Install the latch rod with a hairpin cotter ( Figure 19 ).
g033027
Figure 19
1. Hairpin cotter 2. Latch rod
5
Assembling the Bagger T op
Parts needed for this procedure:
1 Bagger top
1 Bagger screen
Procedure
1. T urn the bagger top over .
2. Install the screen as shown in Figure 20 and that
it slopes down toward the collection bags.
Note: Make sure that the screens snap into
place and the tabs engage the bagger top.
g005666
Figure 20
1. Bagger top
3. Screen tab
2. Screen 4. Slot in bagger top
