Toro 79391 - 1. Draw Bar Decal; Hairpin Cotter

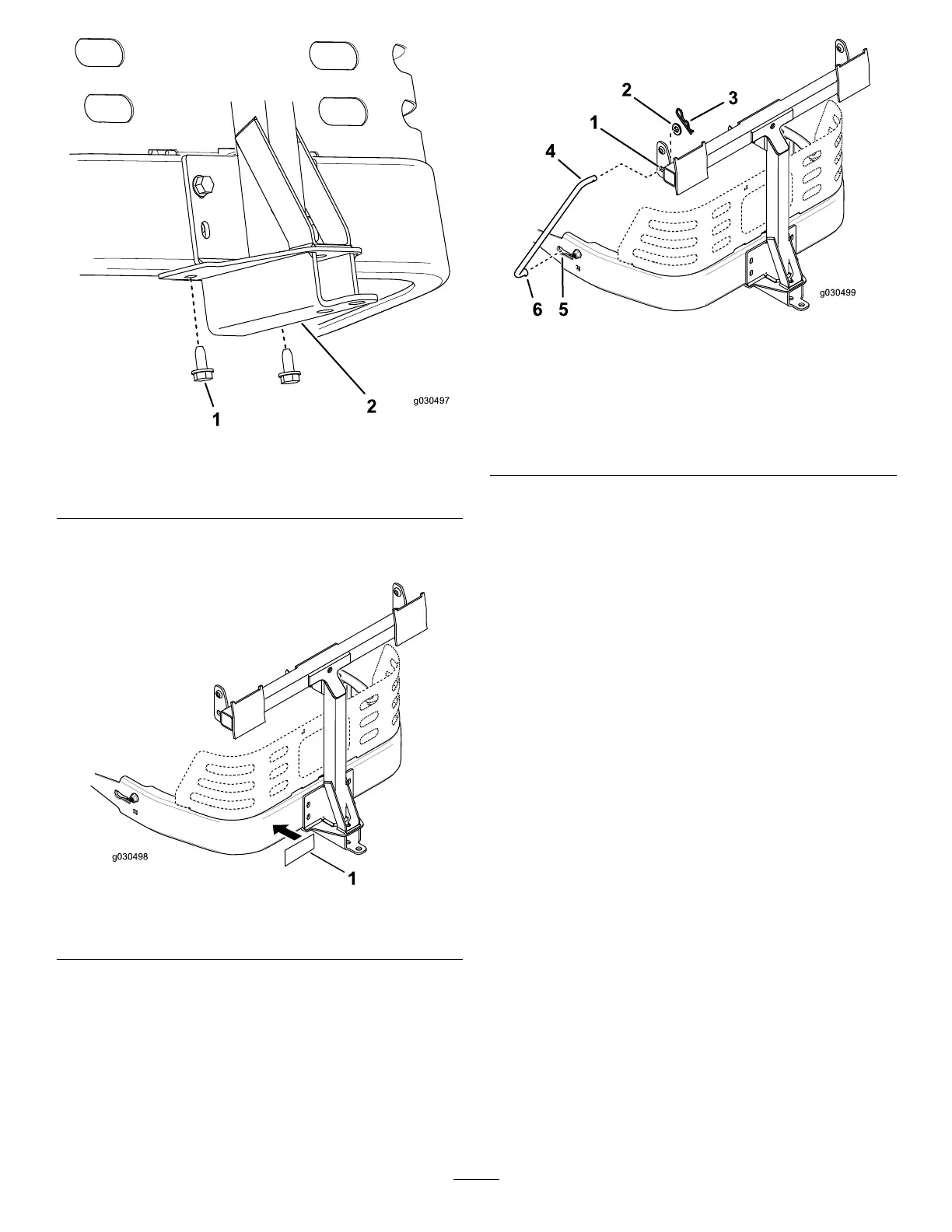

g030497
Figure 16
1. Self-tapping screw (5/16 x
3/4 inch)
2. Pivot frame
3. Attach the draw-bar decal 1.3 cm (1/2 inch) to
the left of the attachment mount ( Figure 17 ).
g030498
Figure 17
1. Draw bar decal
4. Install a bent, ared end of a rod into the keyed
slot in the left side of the machine frame, and
move the rod rearward to seat it in the frame
( Figure 18 ).
Note: Repeat this step for the right side of the
machine.
g030499
Figure 18
Left side shown
1. Pivot-frame hole 4. Support rod
2. W asher
5. Keyed slot (existing)
3. Hairpin cotter
6. Bent, ared end of support
rod
5. Insert the bent ends of the rod into the
attachment mount as shown in Figure 18 and
secure the end of each rod with a washer and
hairpin cotter .
12
