Toro 79391 - Bag Frame; Bag Assembly; Upper Bagger Tube; Pivot Bracket (Model 79392 Only)

6
Installing the Bagger T op
Parts needed for this procedure:
2
Bag frame
2 Bag assembly
1 Upper bagger tube
2
Pivot bracket (Model 79392 only)
4
Bolt (5/16 x 1 inch) (Model 79392 only)
4
Nut (5/16 inch) (Model 79392 only)
Procedure

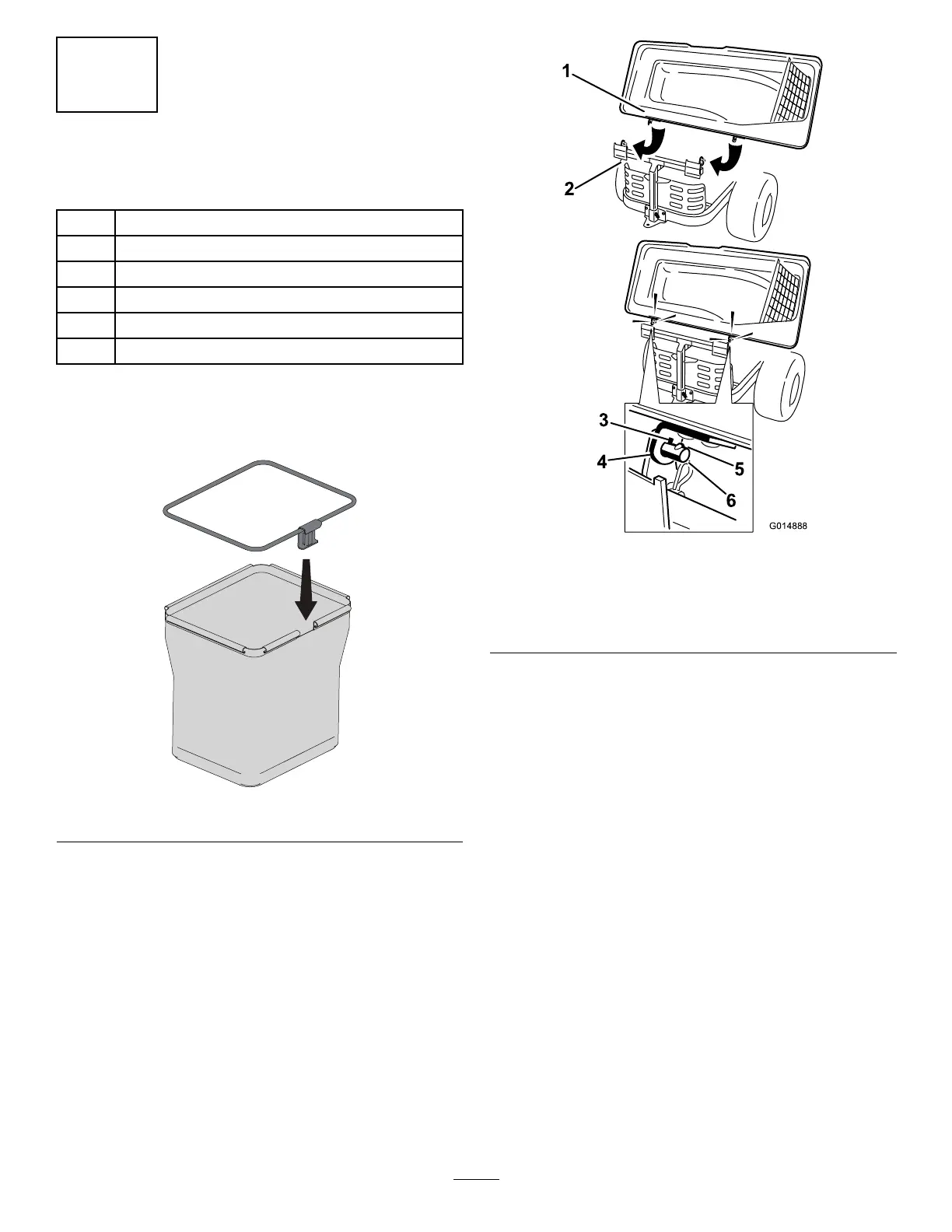

1. Install the 2 bag frames to the 2 bag assemblies.
g453040
Figure 21
2. Install the bagger top to the bagger frame.
3. For models 79390, 79391, and 79393 only:
rotate the bagger top to align the key holes in
the bagger top brackets with the keys in the
posts on the bagger frame ( Figure 22 ).
4. For models 79390, 79391, and 79393 only:
slide the brackets over the posts and rotate the
bagger top down to the operating position.
Note: The bagger top is easier to install if 2
people work together .
g014888
Figure 22
1. Bagger top 4. Bracket, bagger top
2. Bagger frame
5. Key
3. Key hole 6. Post
5. For model 79392 only: install the pivot brackets
onto the pivot frame ( Figure 23 ).
6. For model 79392 only: secure the bagger top
to the pivot brackets with 4 bolts (5/16 x 1 inch)
and 4 nuts (5/16 inch).
Note: The bagger top is easier to install if 2
people work together .
