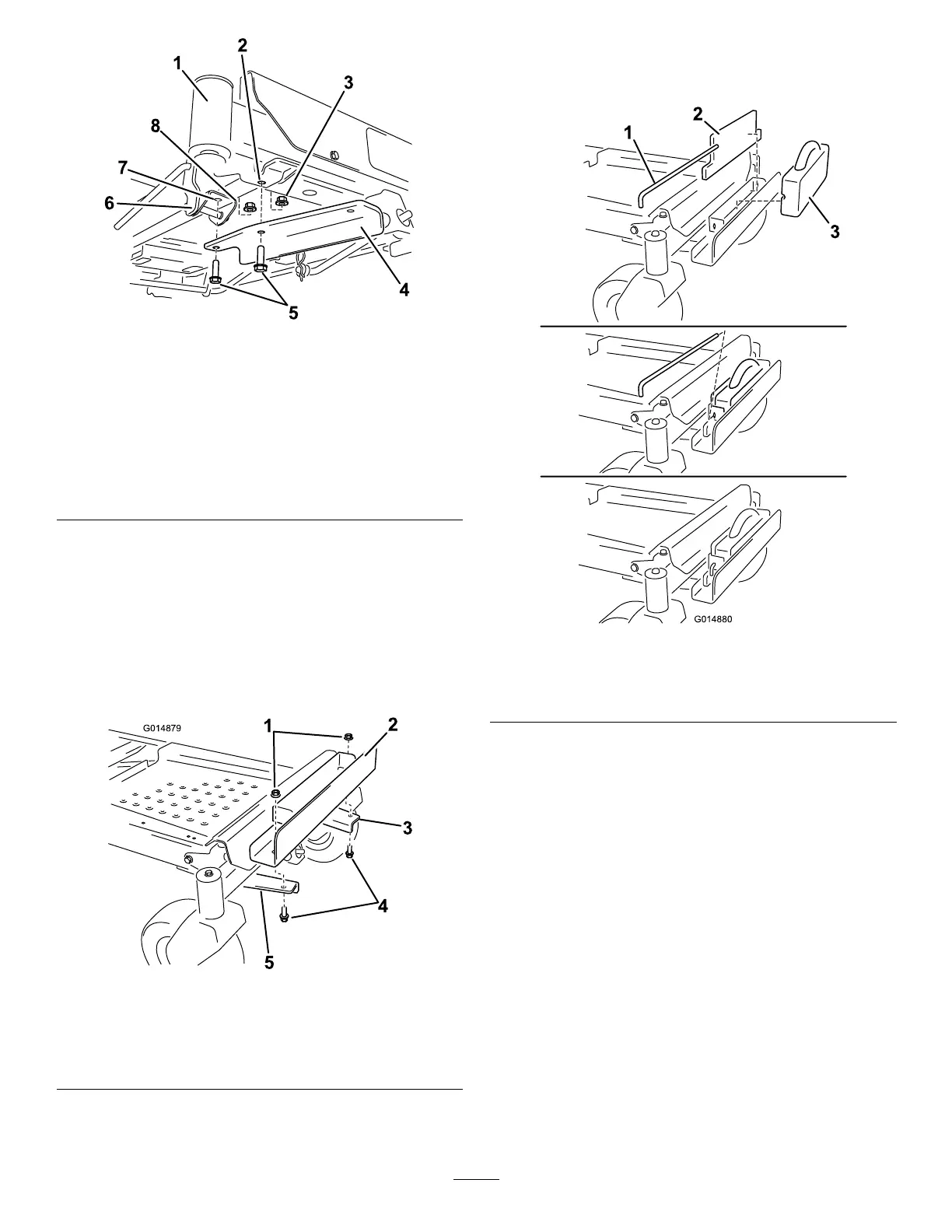

Figure 7
1. Front right caster (castor
fork and wheel not shown
for clarity)
5. Bolt (3/8 x 1-1/4 inches)
2. Front hole, right side
6. Foot-assist lift pedal
bracket
3. Locknut (3/8 inch), existing
7. Hole, existing in bracket
4. Right mounting bracket
8. Locknut (3/8 inch), loose
parts
6. Install the weight bracket to the mounting
brackets by aligning the outboard holes in the
bracket with the mounting brackets installed
previously ( Figure 8 ).
Note: Make sure the bracket is centered on
the frame.
7. Secure the weight bracket with 2 bolts (3/8 x 1
inch) and 2 locknuts (3/8 inch) ( Figure 8 ).
g014879
Figure 8
1. Locknut (3/8 inch) 4. Bolt (3/8 x 1 inch)
2. W eight bracket 5. Right mounting bracket
3. Left mounting bracket
8. Install a at weight to the weight bracket and
move it rearward, ush with the bracket ( Figure
9 ).
g014880
Figure 9
1. Keyed cross bar
3. Suitcase weight
2. Flat weight
9. Install a suitcase weight in front of the at weight
( Figure 9 ).
10. Secure the weights to the weight bracket with a
keyed-cross bar ( Figure 9 ). Install the bar and
rotate it 90 degrees downward to lock it in place.
1 1. After you install all the weights and brackets,
check that all the fasteners are tight. T ighten
them as necessary .
Important: Whenever you remove the bagger
attachment, remember to remove the front weights
to return the proper stability to the machine.
