g300208

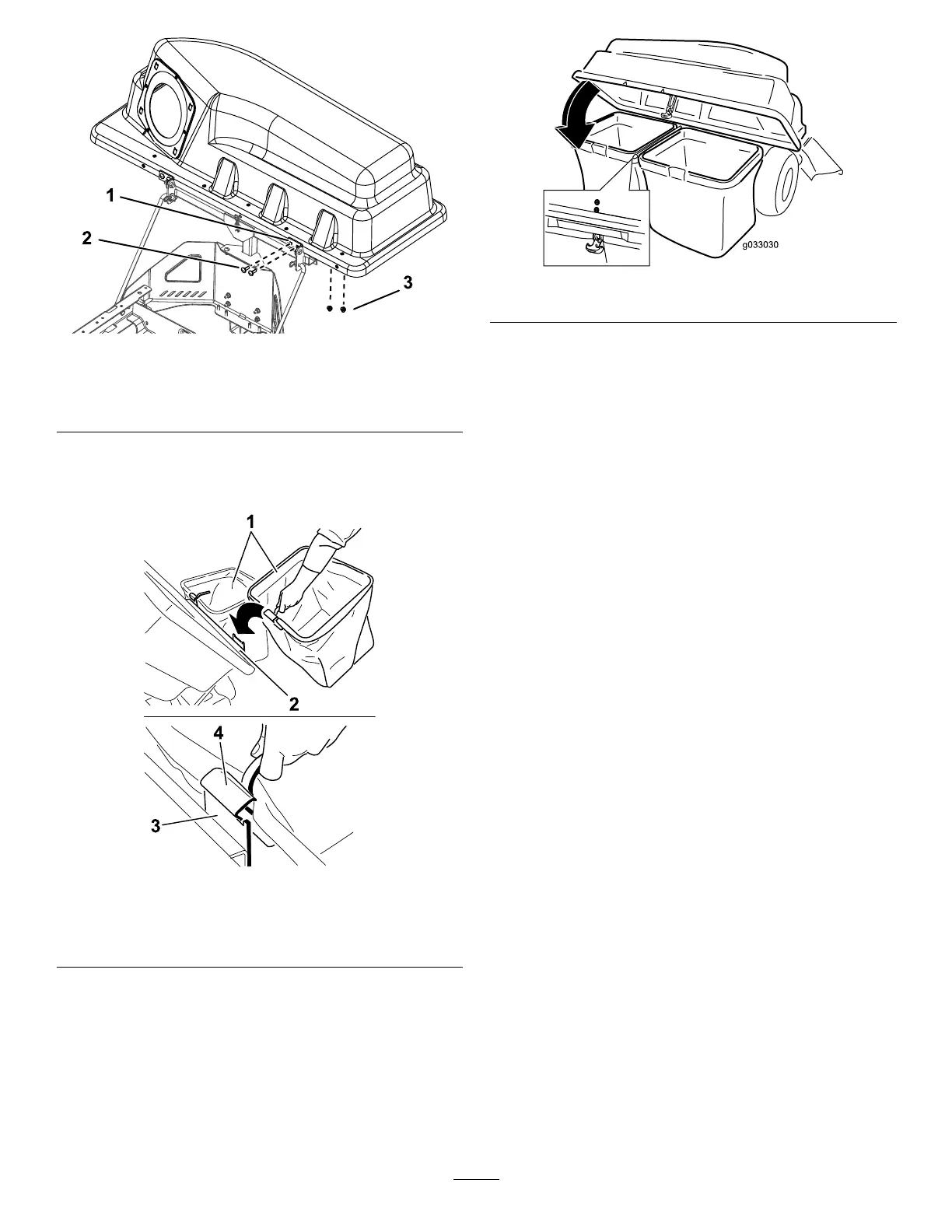

Figure 23
1. Bagger posts
3. Nuts (5/16 inch)
2. Bolts (5/16 x 1 inch)
7. Lift the bagger top and install the bags by sliding
the bag frame hooks onto the retaining brackets
( Figure 24 ).
g033032
Figure 24
1. Bag 3. Retaining bracket
2. Bagger frame 4. Bag frame hook
8. Lower the bagger top onto the bags ( Figure 25 ).
g033030
Figure 25
9. Secure the hood with the latch ( Figure 25 ).
10. Install the upper bagger tube by inserting the
curved end into the opening in the bagger top.
Note: Make sure that the ared end with the
retention post is pointing down and forward in
preparation to be mated with the Finishing Kit.
15
