8
Chapter 2: Overview
DXi Quick Start Guide
Menu Navigation
Navigating menus and executing commands in the DXi is easy with the various
buttons and the Control Dial.

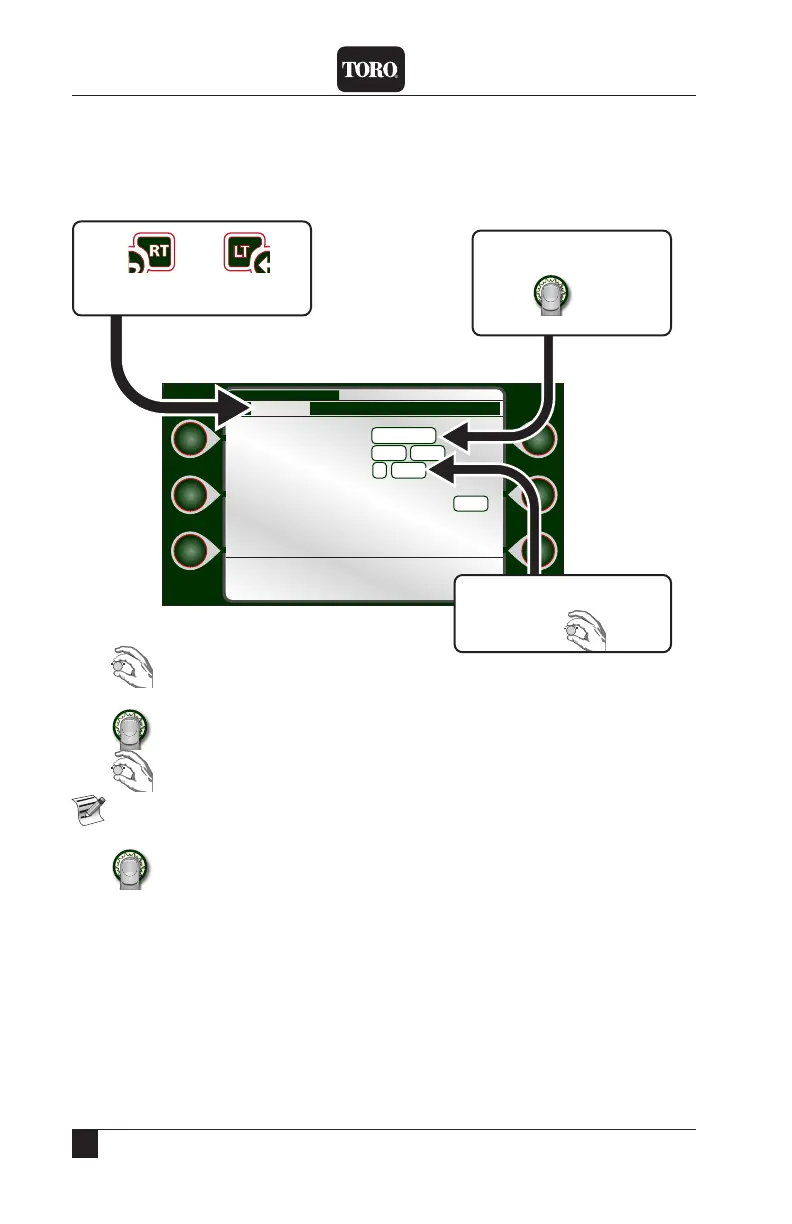

To navigate the typical DXi screen, we will use the below as an example.
Navigating and Executing
1. to navigate between adjustable elds.
e “active” eld will have a black box around it.
2. to enter the “active” eld.
3. to adjust the value.
Some elds have preset options like “Custom” vs. “Data Ind”. Other elds
are numeric and are adjusted incrementally.
4. to set desired option.
5. Repeat steps 1 - 4 for all adjustable elds.
Sensor 1 Type Custom
K Factor 003.001
Offset 8.001
Include In Total Flow YES
Setup Flow Sensors WED 5:43:40 PM
|Sensor 1|Sensor 2 | Sensor 3
Press and
to move between the dier-
ent “top” screens.
Some elds have
preset options.
Press to switch
between them.
Number elds must be
adjusted by .
To Next Page
