Toro Edge Series Service Manual

Reelmaster 7000- DHydraulic System Page 5 - 100

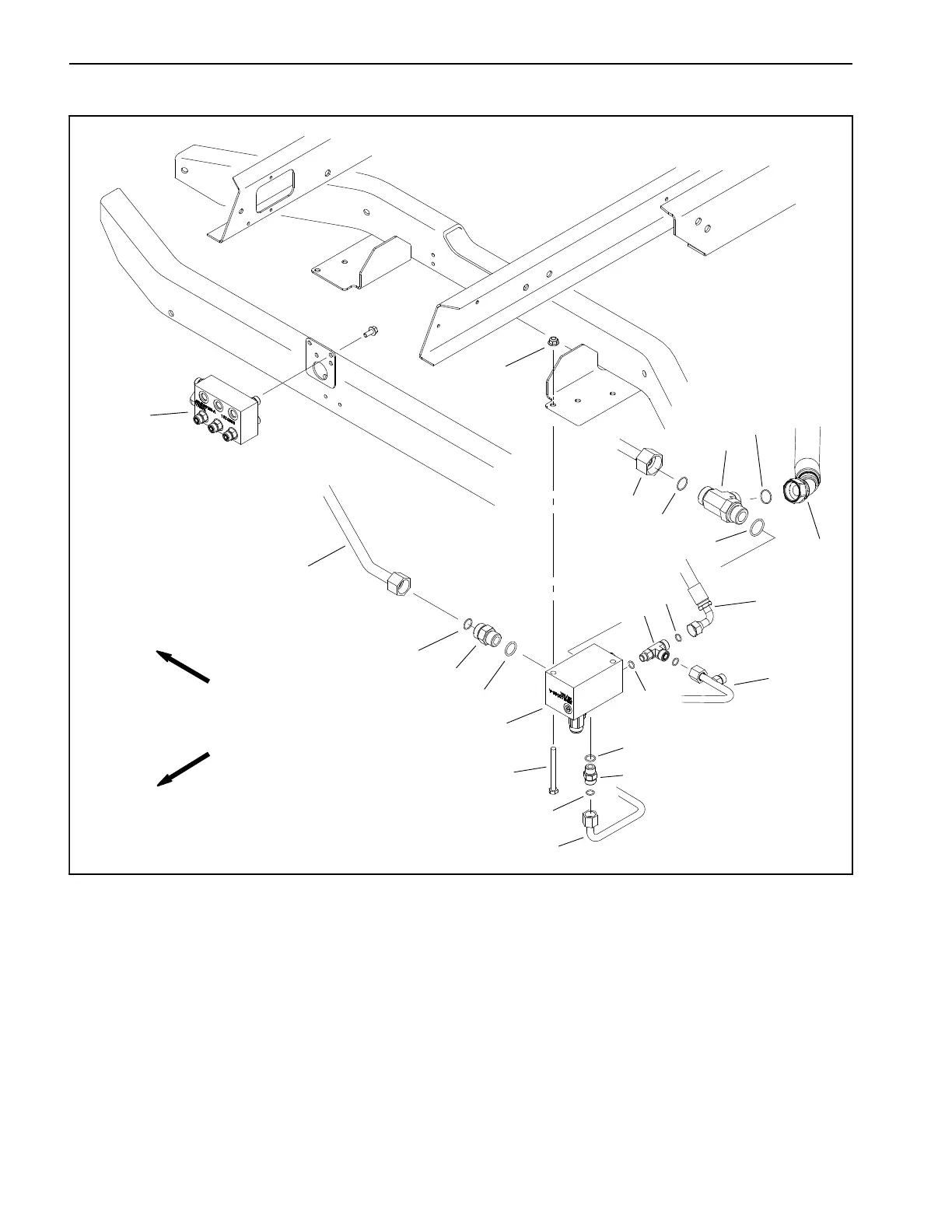

Rear Traction Manifold
1. Rear traction manifold
2. Cap screw (2)
3. Flange nut (2)
4. Lift circuit junction manifold
5. Hydraulic tube
6. O- ring
7. Hydraulic straight fitting
8. O- ring
9. Hydraulic tube
10. O- ring (3)
11. Hydraulic straight fitting
12. O- ring
13. Hydraulic hose
14. Hydraulic tube
15. Hydraulic tee fitting
16. O- ring
17. Hydraulic hose
18. Hydraulic tube
19. O- ring (2)
20. Hydraulic tee fitting
21. O- ring
Figure 58
FRONT
RIGHT
4
2
3
5
7
8
9
10
12
1
6
11
13
14
15
16
17
18
19
10
19
20
21
