Reelmaster 7000−DPage 8 − 6Chassis

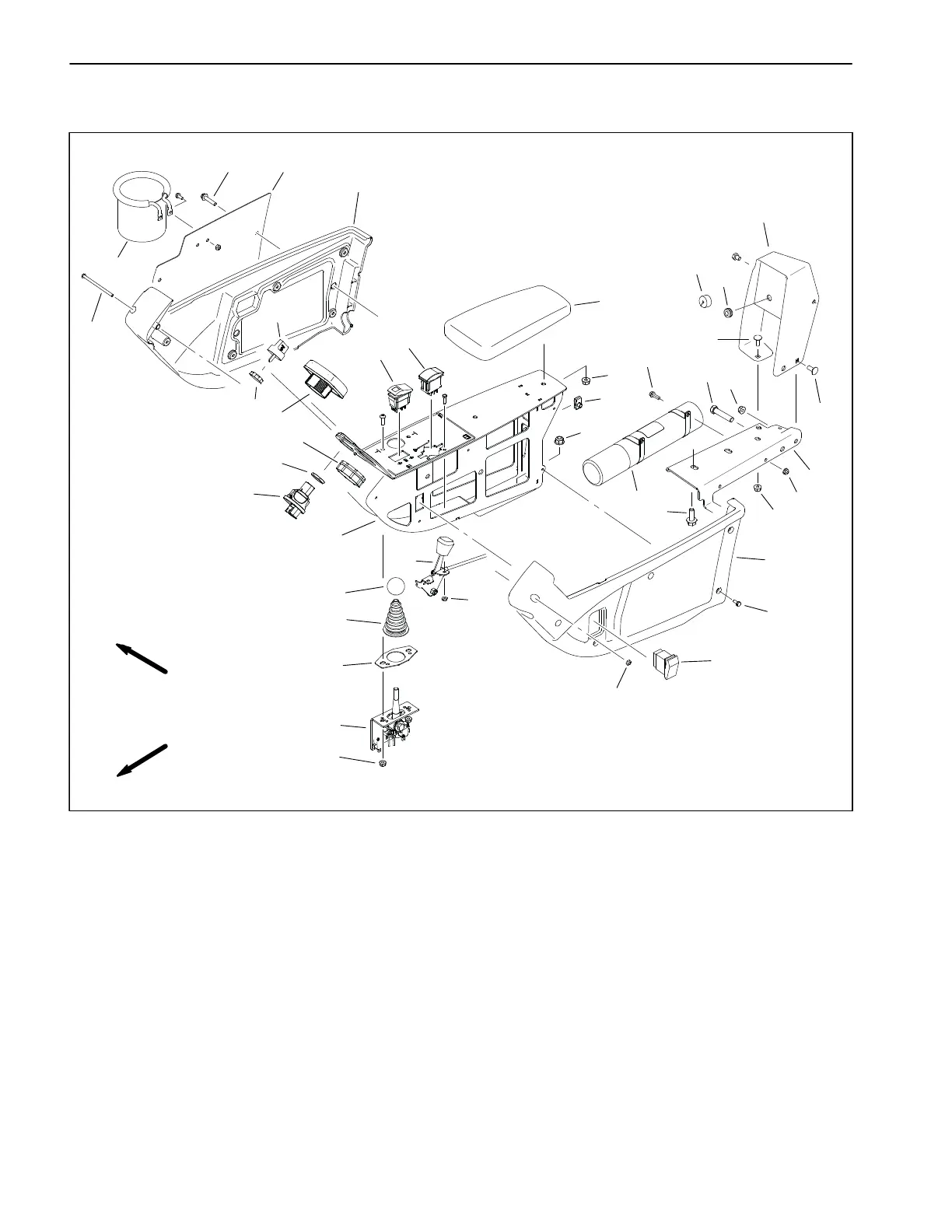

Console Arm
1. Console arm frame
2. RH cover
3. LH cover
4. Phillips head screw
5. Lock nut
6. Washer head screw (10)
7. Bag holder
8. Flange head screw (2)
9. Cover plate
10. Ignition key
11. Nut
12. InfoCenter display
13. Nut
14. Nut
15. Ignition switch
16. Reel enable/disable switch
17. Engine speed switch
(Yanmar diesel engine)
18. Arm rest
19. Knob
20. Boot
21. Plate
22. Joystick
23. Flange nut (2)
24. Throttle
(Kubota diesel engine)
25. Lock nut (2)
26. Headlight switch
27. Manual tube
28. Flange head screw (2)
29. Flange nut (2)
30. Panel clip (2)
31. Flange nut (2)
32. Washer head screw (2)
33. Hex head screw
34. Flange nut (2)
35. Carriage screw (4)
36. Foam seal
37. Grommet
38. Console arm support
39. Support channel
40. Flange nut (2)
41. Flange nut (4)
Figure 5
FRONT
RIGHT
1
2
3
4
5
6
7
8
9
10
11
12
14
15
13
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
35
39
40
41
