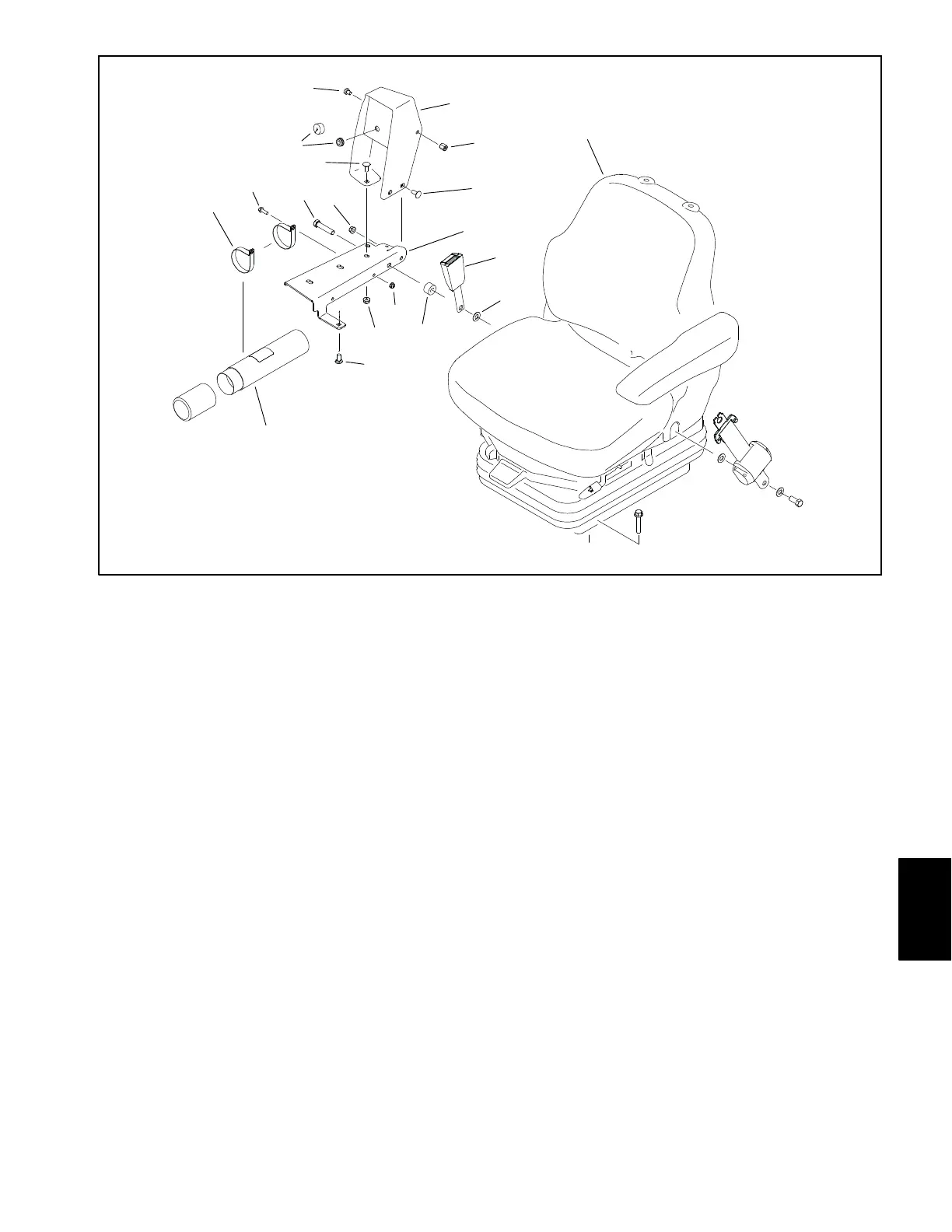

Reelmaster 7000−D Page 8 − 7 Chassis
1. Hex head screw
2. Spacer
3. Seat belt buckle
4. Flat washer
5. Operator seat
6. Carriage screw (4)
7. Hex head screw
8. Coupling nut
9. Flange nut (4)
10. Console arm support
11. Support channel
12. Grommet or foam seal
13. Manual tube
14. Clamp (2)
15. Cap screw (2)
16. Flange nut (2)
Figure 6
1
3
8
2
6
5
7
14
13
9
10
11
12
6
4
6
9
15
16
Disassembly (Fig. 5)
1. Park machine on a level surface, lower cutting units,
stop engine and engage parking brake. Remove key
from ignition switch.
2. Remove two (2) flange head screws (item 8) and
cover plate (item 9) from outside of console arm.
3. At front of console arm, remove screw (item 4) and
lock nut (item 5) that secure console arm covers to each
other.
4. Remove five (5) washer head screws (item 6) that
secure each cover to console arm panel.
5. Remove console arm covers from machine. As LH
cover (item 3) is removed from console arm, unplug wire
harness connector from headlight switch.
6. Remove components from console arm as needed.
7. If necessary, remove console panel and supports
from machine (Fig. 6).
Assembly (Fig. 5)
1. Install all removed console arm components.
2. Position covers to console arm. Install headlight
switch wire harness connector to switch before installing
LH cover (item 3).
3. Secure each cover to console arm with five (5) wash-
er head screws (item 6). Install screw (item 4) and lock
nut (item 5) to secure covers at front of console arm.
4. Position cover plate (item 9) to outside of console
arm. Secure with two (2) flange head screws.
