Toro Edge Series Service Manual

Reelmaster 7000−D Page 3 − 19 Yanmar Diesel Engine
Engine

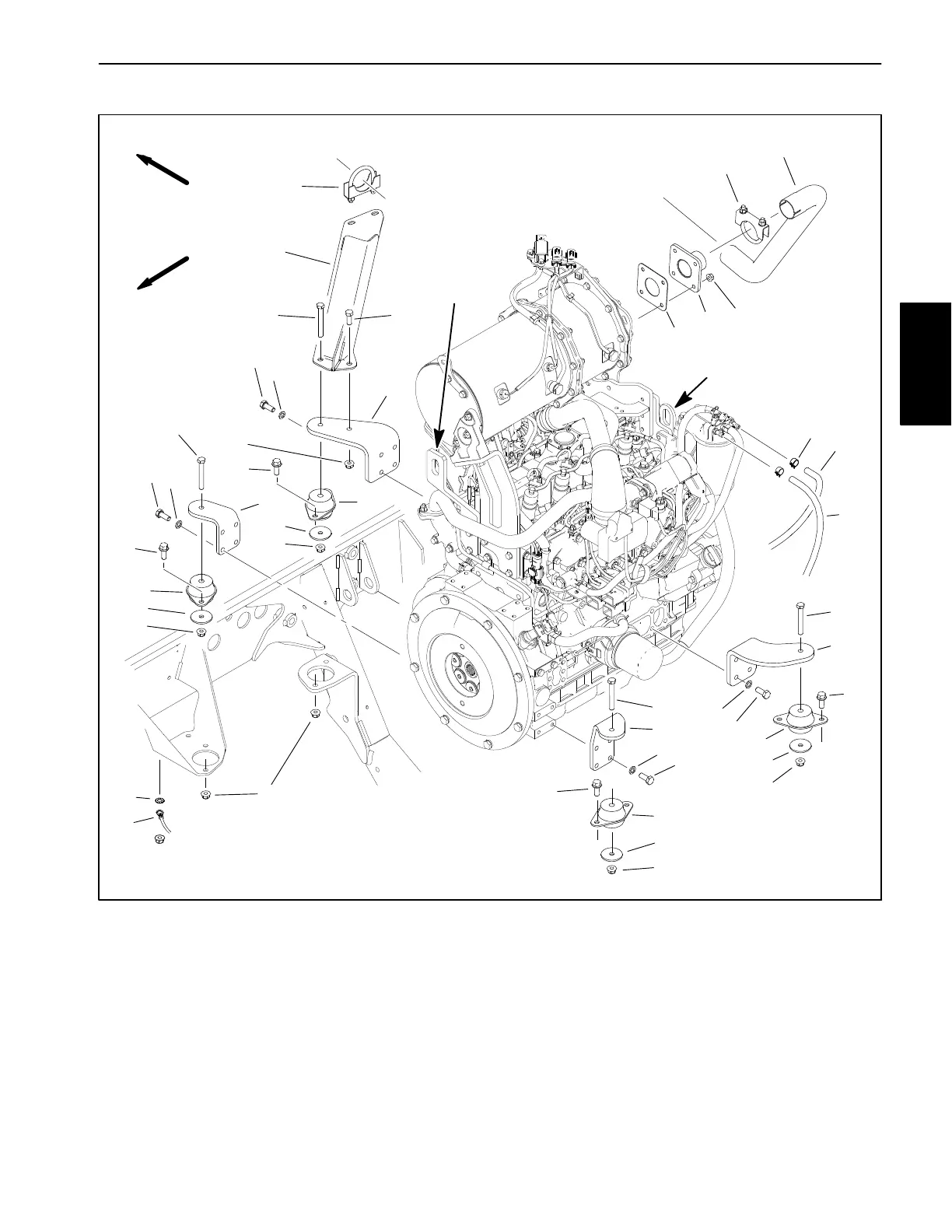

Figure 13
1. Mount bracket − left front
2. Mount bracket − right front
3. Mount bracket − left rear
4. Mount bracket − right rear
5. Lock washer (16)
6. Cap screw (16)
7. Engine mount (4)
8. Flange head screw (7)
9. Flange nut (12)
10. Rebound washer (4)
11. Cap screw (3)
12. Cap screw
13. Cap screw
14. Tailpipe support
15. Hose clamp (2)
16. Fuel hose (filter to engine)
17. Fuel hose (engine to tank)
18. Clamp (2)
19. Exhaust tailpipe
20. Flange nut (4)
21. Exhaust flange
22. Exhaust gasket
23. External tooth lock washer
24. Battery ground cable
FRONT
RIGHT
1
2
3
4
5
6
7
8
9
10
11
12
14
15
16
17
5
5
5
6
6
6
7
7
7
8
8
8
9
9
9
13
9
9
10
10
10
11
11
18
18
19
20
21
22
Rear
Lift
Tab
Front
Lift Tab
23
24
Yanmar
Engine
