Reelmaster 7000- DHydraulic System Page 5 - 144

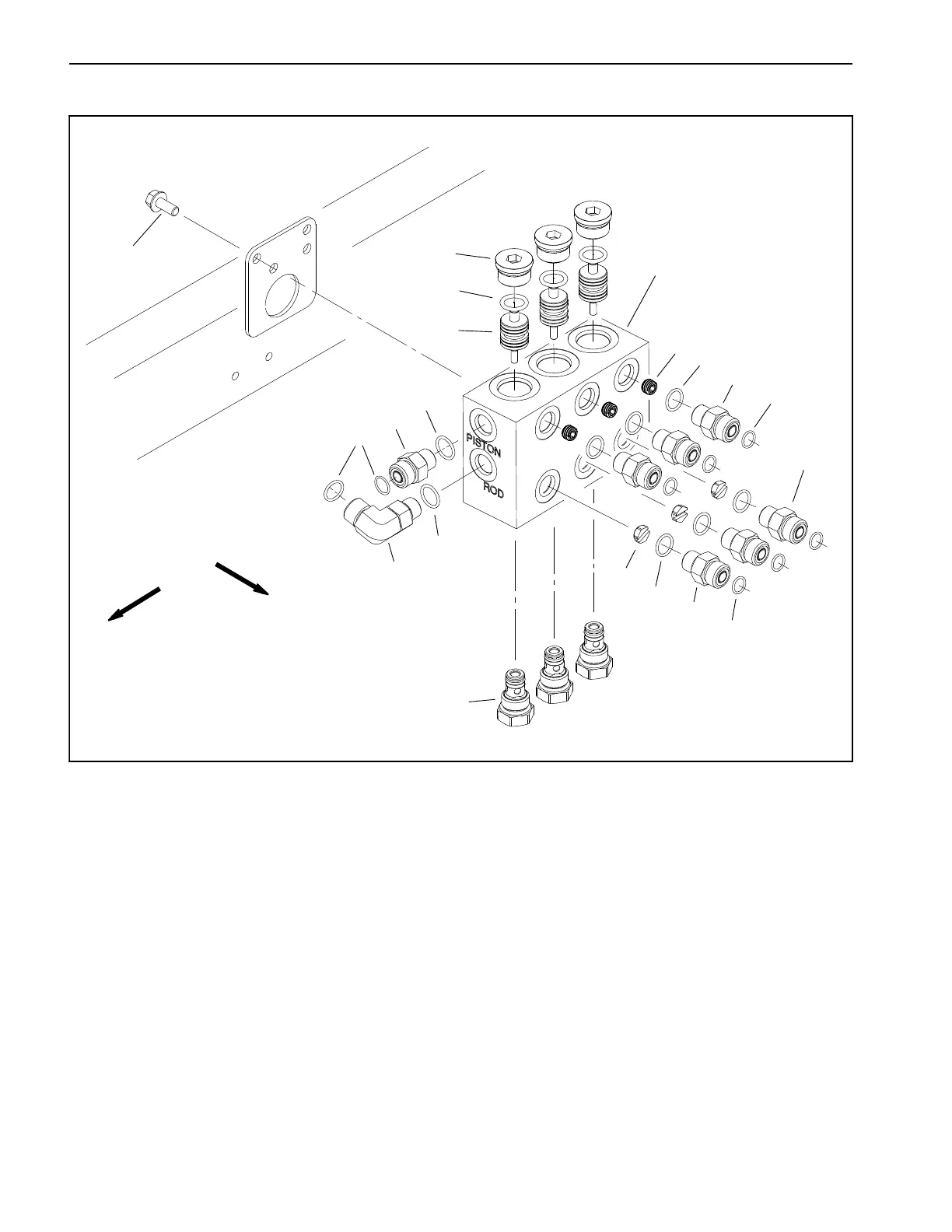

Lift Junction Manifold
1. Lift junction manifold
2. Orifice - .030” (3)
3. Orifice - .046” (3)
4. Straight fitting (7)
5. Socket plug (3)
6. O- ring (8)
7. Check valve (3)
8. O- ring (8)
9. 90
o
hydraulic fitting
10. O- ring (3)
11. Pilot piston (3)
12. Cap screw (2)
Figure 95
FRONT
RIGHT
2
8
6
8
9
10
11
1
5
7
4
4
6
6
6
4
8
4
3
12
NOTE: The ports on the lift junction manifold are
marked for easy identification of components (e.g. P1 is
the gear pump connection port). See Hydraulic Sche-
matic in Chapter 10 - Foldout Drawings to identify the
function of the hydraulic lines at each port.
