Reelmaster 7000−DPage 6 − 10Electrical System
Splash Screen
When the ignition switch is turned from the OFF position
to the ON/PREHEAT or START position, the fault indica-
tor illuminates for a few seconds to verify indicator oper-
ation and the InfoCenter splash screen appears (Fig. 8).
The splash screen provides the following information to
the operator:
Voltmeter
Hourmeter (displayed for first five seconds)
Glow plug indicator (displayed only while glow
plugs are energized)
Tachometer (displayed after five seconds)
After the splash screen has been displayed for ten sec-
onds, the main information screen will be appear on the
InfoCenter.
T
13.2V
0000.0
T
13.2V
RPM
1200

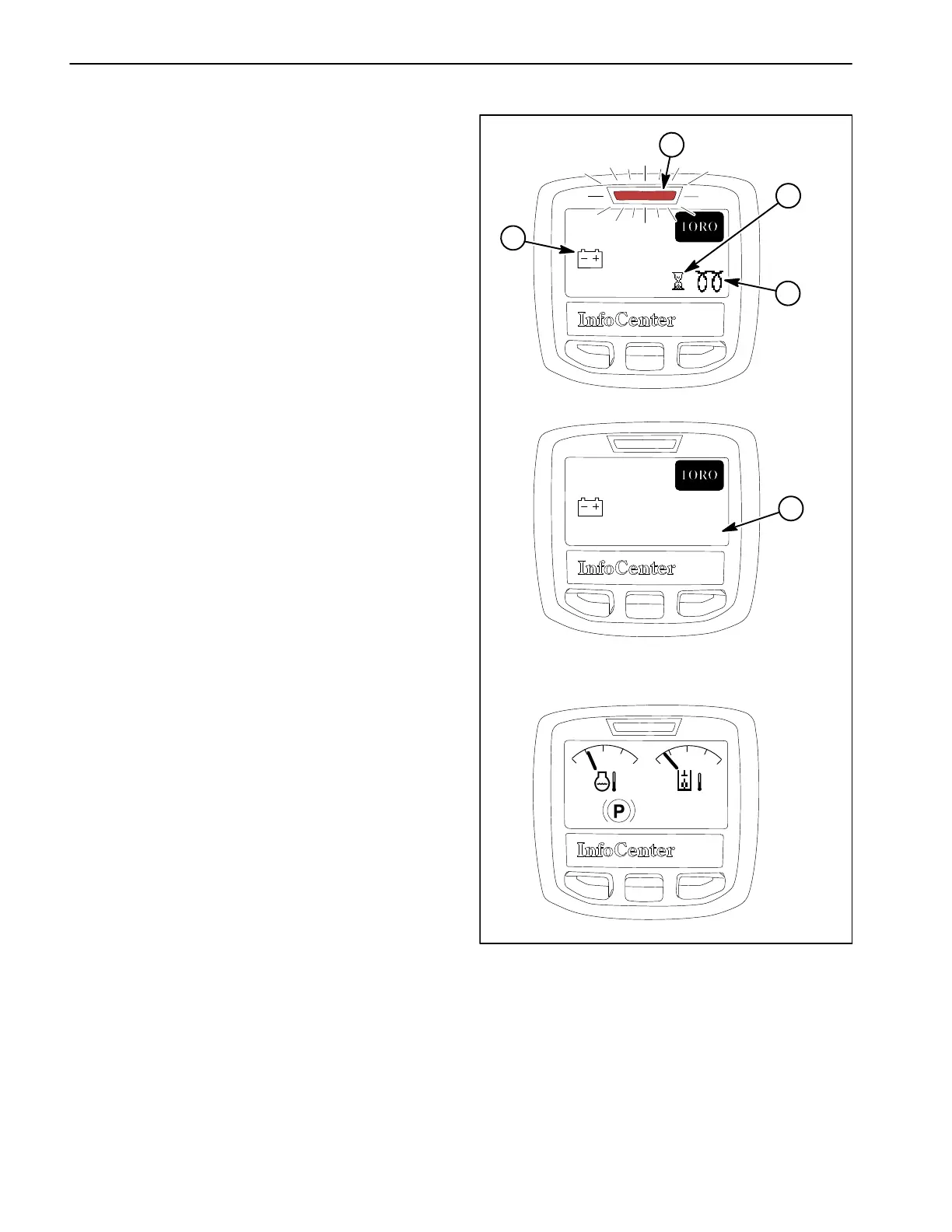

1. Fault indicator
2. Voltmeter
3. Hourmeter
4. Glow plug indicator
5. Tachometer
Figure 8
1
4
2
3
5
INITIAL
DISPLAY
DISPLAY
AFTER
FIVE
SECONDS
SPLASH SCREEN
100
170
240
N
140
180
220
MAIN INFORMATION SCREEN
DISPLAY
AFTER
TEN
SECONDS
