Toro Edge Series Service Manual

Reelmaster 7000--D
DPA Cutting Units
Page 9 -- 22

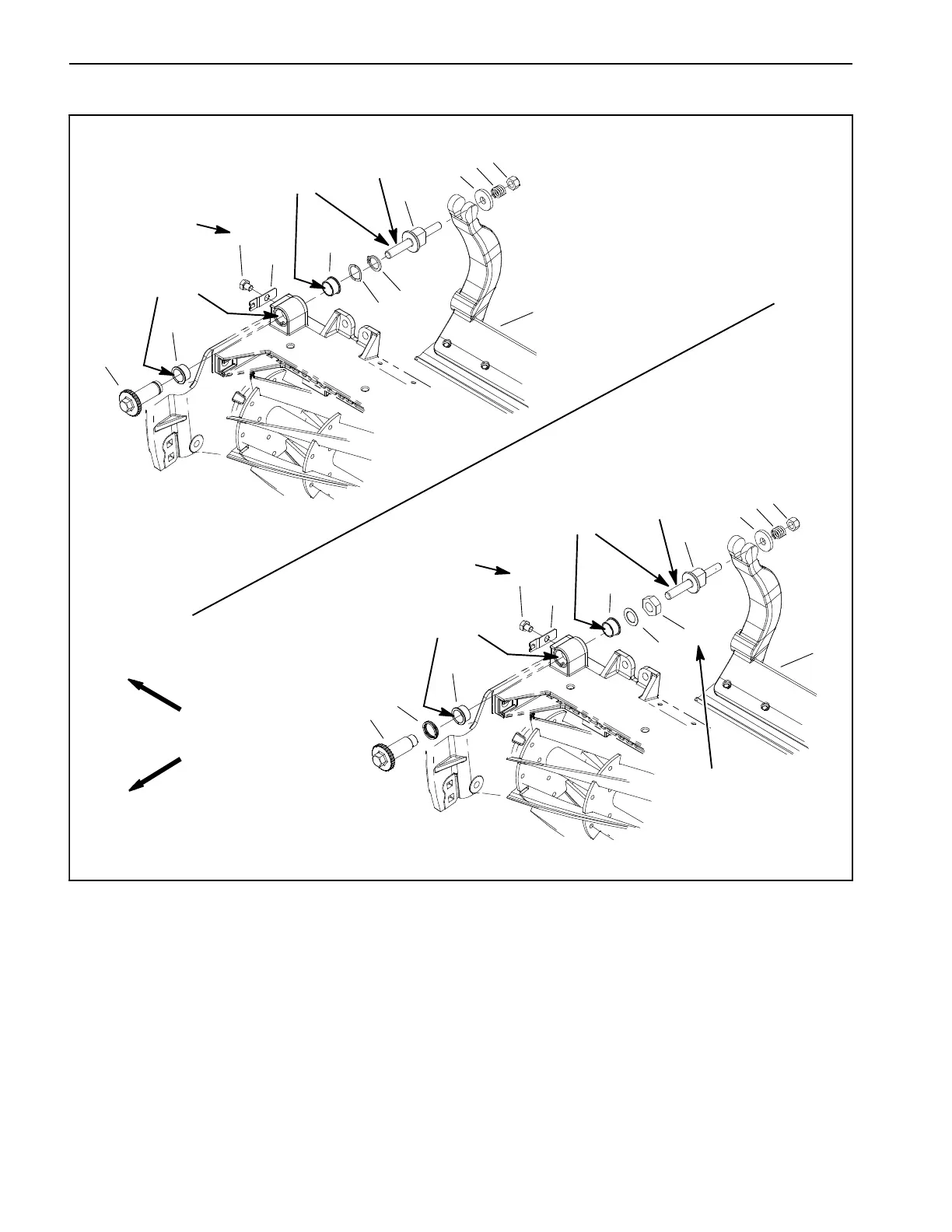

Bedbar Adjuster Service
Figure 32
1. Bedbar assembly
2. Compression spring
3. Lock nut
4. Bedbar adjuster screw
5. Flange bushing
6. Cap screw
7. Detent
8. Wave washer
9. Retaining ring
10. Bedbar adjuster shaft
11. Washer
12. Lock nut
13. Flat washer
14. Wave washer
FRONT
RIGHT
14 to 16 ft--lb
(19to21N--m)
Antiseize
Lubricant
Loctite #243
1
2
11
3
4
5
6
7
8
9
10
5
A
B
Left
Antiseize
Lubricant
Hand
Threads
14 to 16 ft--lb
(19to21N--m)
Antiseize
Lubricant
Loctite #243
1
2
11
3
4
5
6
7
13
12
10
5
Left
Antiseize
Lubricant
Hand
Threads
14
15 to 20 ft--lb
(21to27N--m)
NOTE: The bedbar adjuster system for early produc-
tion DPA cutting units (Fig. 32 A) used a retaining ring
on the end of the bedbar adjuster shaft. Current produc-
tion DPA cutting units (Fig. 32 B) include a lock nut on
the e nd of the bedbar adjuster shaft. Upgrading to the
current production style adjusters is recommended us-
ing Heavy Duty DPA Kit p/n 120--7230. The bedbar ad-
juster service procedures for either style of adjuster
shaft is very similar.
