Toro Edge Series Service Manual

Reelmaster 7000- DHydraulic System Page 5 - 152

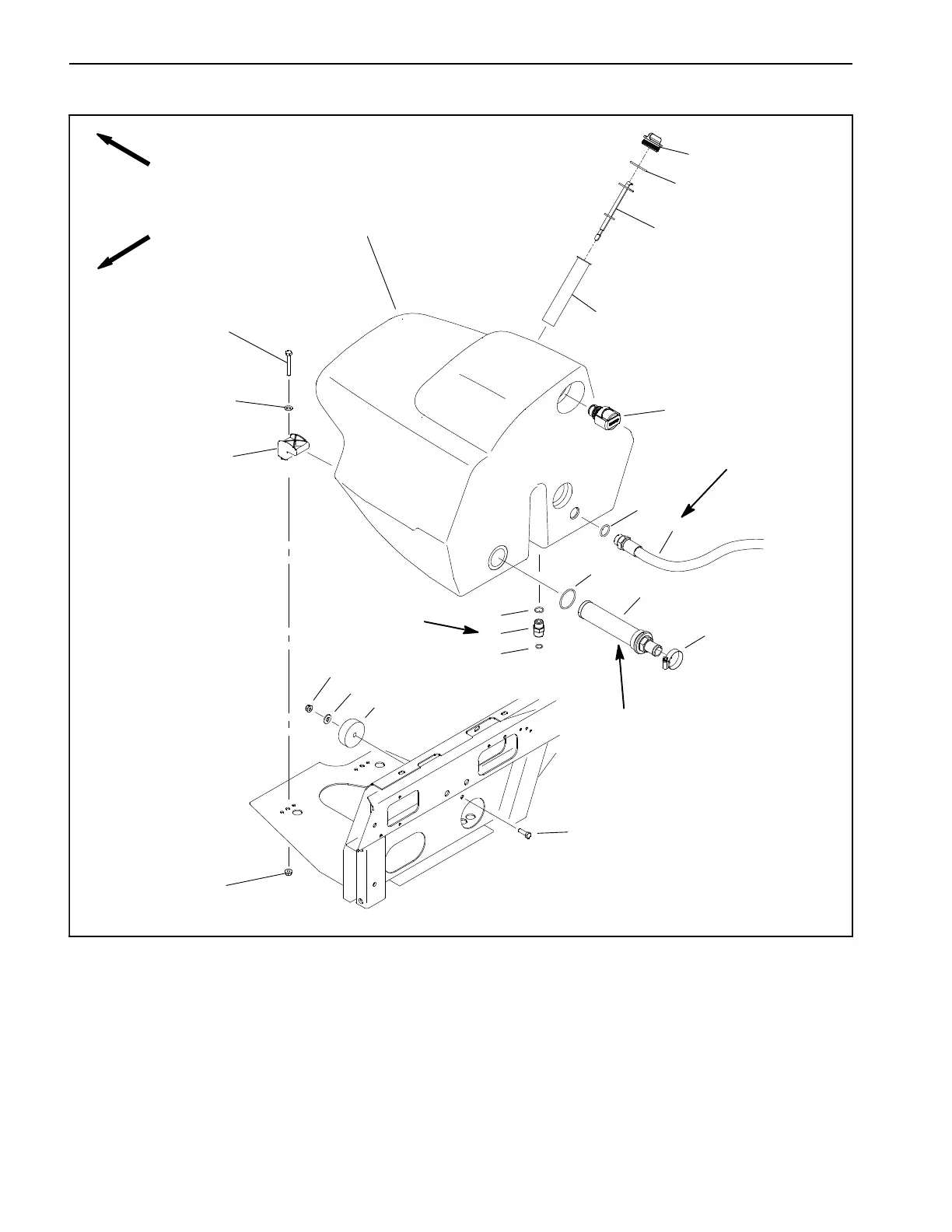

Hydraulic Reservoir
1. Hydraulic reservoir
2. Tank strainer
3. Hose clamp
4. Hydraulic hose assembly
5. Hydraulic straight fitting
6. Bumper
7. Flat washer
8. Flange nut (3)
9. Clamp (2)
10. Cap screw (2)
11. Flat washer (2)
12. Breather
13. Screen filter
14. Dipstick
15. Plug
16. O- ring
17. Cap screw
18. O- ring
19. O- ring (19)
20. O- ring
Figure 101
FRONT
RIGHT
68 to 75 ft- lb
(93 to 101 N- m)
1
2
3
4
5
6
7
8
9
10
11
12
13
15
16
8
14
17
18
19
20
19
35 to 47 ft- lb
(48to63N-m)
25 to 29 ft- lb
(34to39N-m)
