Toro Edge Series Service Manual

Reelmaster 7000−DPage 7 − 18Axles, Planetaries and Brakes

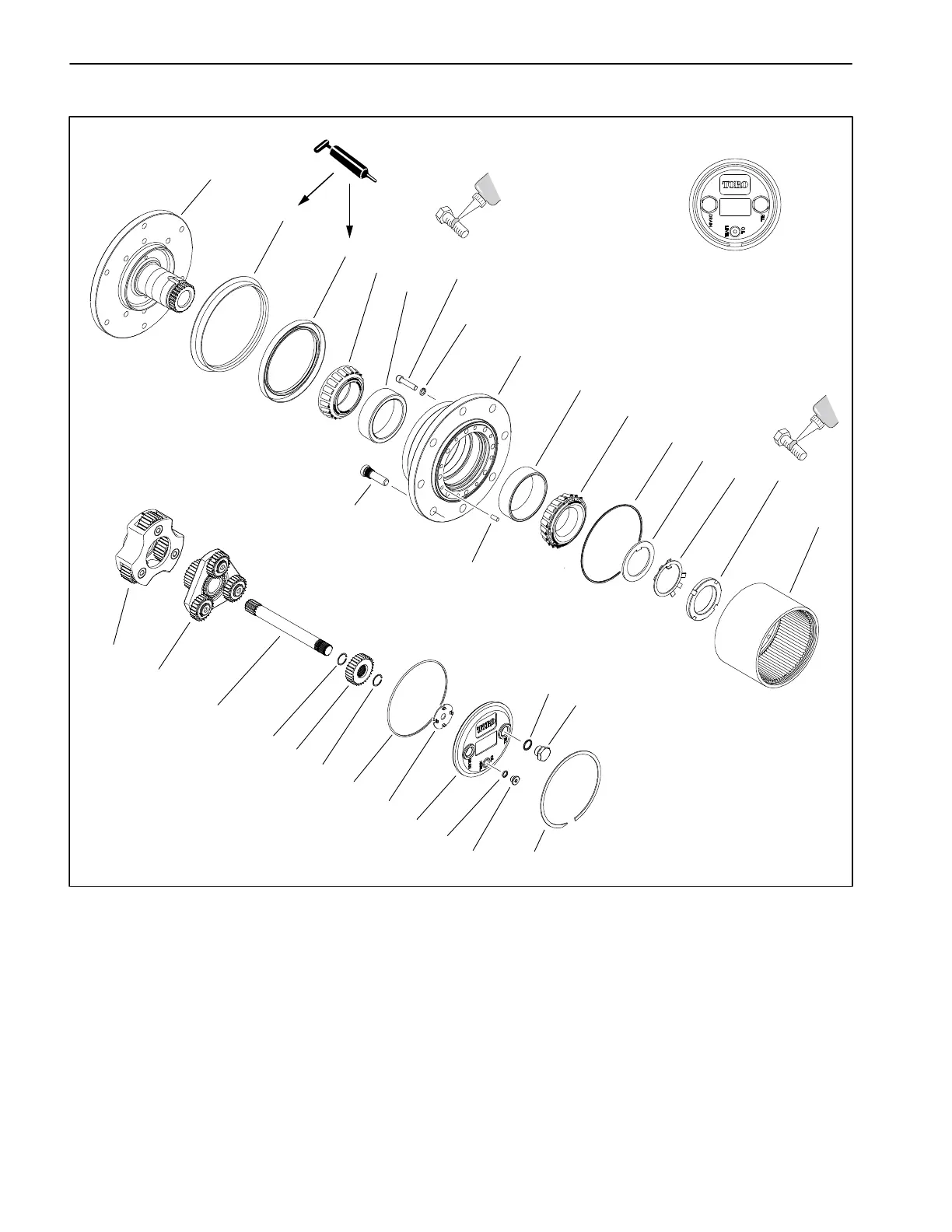

VA02 Series Planetary Drive Service
VA02 series planetary
1. Spindle
2. Boot seal
3. Lip seal
4. Inner bearing cup (2)
5. Inner bearing cone (2)
6. Wheel stud (8)
7. Socket head screw (8)
8. Lock washer (8)
9. Housing
10. Dowel pin (4)
11. O−ring
12. Spacer
13. Locking washer
14. Lock nut
15. Ring gear
16. Retaining ring
17. Plug
18. O−ring
19. Plug (2)
20. O−Ring (2)
21. End cap
22. Thrust plate
23. O−Ring
24. Retaining ring (2)
25. Primary gear
26. Drive shaft
27. Primary carrier assembly
28. Secondary carrier assembly
Figure 7
G248465
11
12
13
14
15
1617
18
19
20
1
2
3
4
4
5
5
6
7
8
9
10
21
22
24
24
23
25
26
27
28
37 N−m (27 ft−lb)
Grease
High Strength
Thread Locking
Compound
High Strength
Thread Locking
Compound
