Toro Greenmaster 1000 - Drum Drive Assembly

Greensmaster 1000/1600Traction and Reel Drive Systems Page 4 – 12
Drum Drive Assembly
1. Spacer
2. Backup washer
3. Pulley (LH)
* Pulley (RH)
4. Housing (LH)
* Housing (RH)
5. Cap screw
6. Lock nut
7. Grease fitting
8. Seal
9. Bearing
10. Spacer
11. Grease fitting
12. Belt
13. Pulley
14. Nut
15. Washer
16. V–ring seal
17. Bearing cover
18. Cap screw
19. Lock washer
20. Flangette
21. Bearing
22. Flangette
23. Grease fitting
24. Bearing lock nut
25. Seal
26. Bearing
27. Bearing housing
28. Closure
29. Bearing clamp
30. Seal
31. Lock nut
32. Cap screw
33. Drum belt cover (LH)
* Drum belt cover (RH)
34. Seal strip
35. Cap screw
36. Lock washer
37. Idler pulley
38. Ball bearing
39. Snap ring
40. Flat washer
41. Spacer

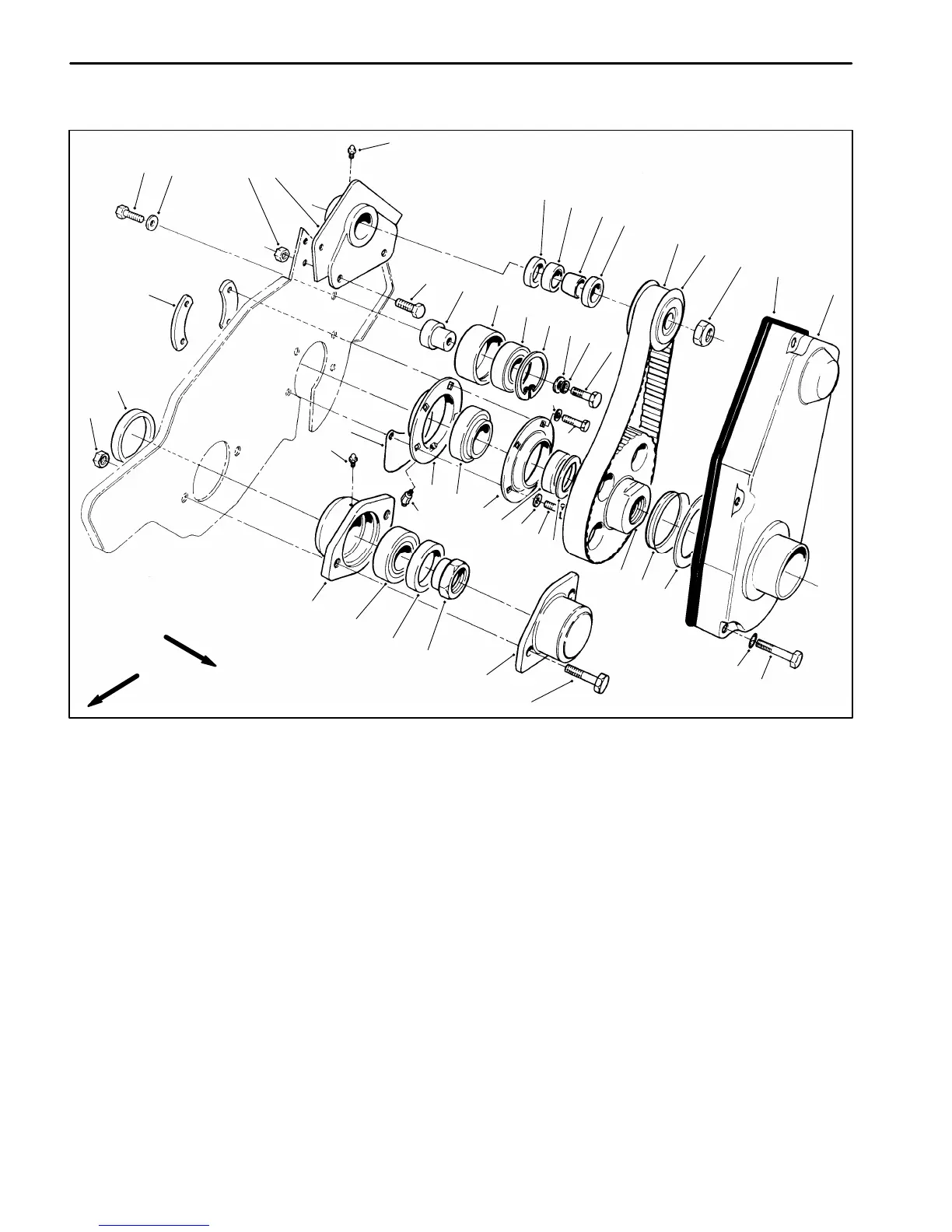

Figure 17
30
31
32
*33
34
35
36
37
38
39
40
19
18
1
2
*3
*4
5
6
7
8
9
10
16
17
18
19
20
21
22
23
24
25
26
27
18
28
29
11
12
13
14
15
8
18
19
41
19
FRONT
LEFT
FRAME
Note: All parts are identical on both sides of the mow-
er frame except as noted.
