Greensmaster 1000/1600 Page 7 – 3 Cutting Unit
Specifications

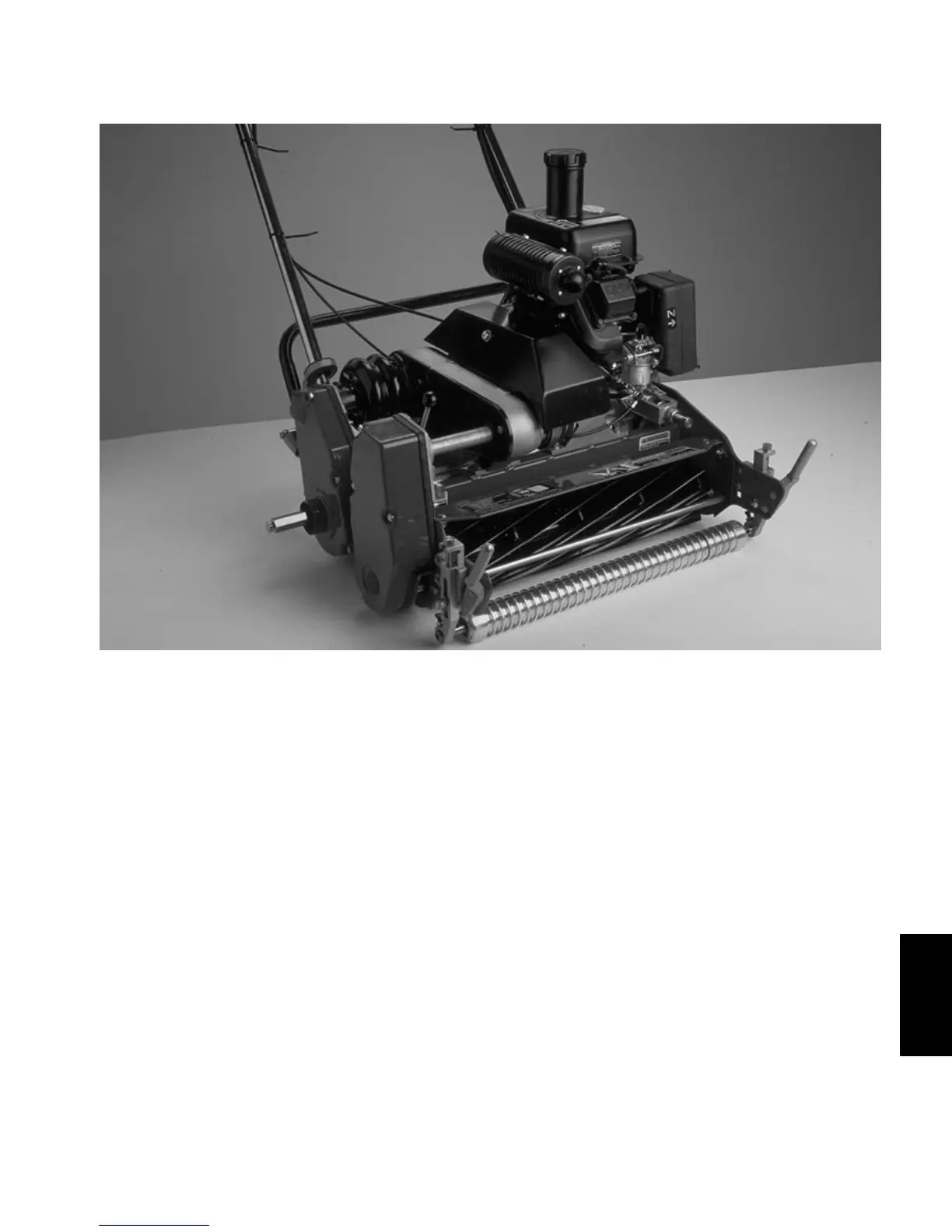

Figure 1
REEL CONSTRUCTION (GR1000): 5–inch (12.7 cm)
diameter, 11 carbon steel blades (optional 8 blades)
welded to 5 stamped steel spiders.
HEIGHT–OF–CUT RANGE (GR1000): 5/64 to 1 inch
(2 to 25 mm)
WIDTH–OF–CUT (GR1000): 21 inches (53.3 cm)
CLIP (GR1000): 0.16 inch (0.41 cm)
REEL CONSTRUCTION (GR1600): 5–inch (12.7 cm)
diameter, 8 carbon steel blades welded to 6 stamped
steel spiders.
HEIGHT–OF–CUT RANGE (GR100): 1/8 to 1–1/4 inch
(3 to 32 mm)
WIDTH–OF–CUT (GR1600): 26 inches (66.0 cm)
CLIP (GR1600): 0.23 inch (0.58 cm)
BEDKNIFE AND BEDBAR: Single edged high carbon
steel bedknife, hardened to RC 48-54. A cast iron bed-
bar is fastened to the mower. Tournament bedknife (Part
No. 93–4263) is standard.
Cutting Unit
