AdjustingtheTraction
Cable
Adjustthetractioncabletoachieveagapof1.5mm
(0.06inch)betweenthefrictiondiscandthepressure
plate.
1.Accessthefrictiondiscandpressureplateby
removingtheclutchcover(Figure28).
g274480

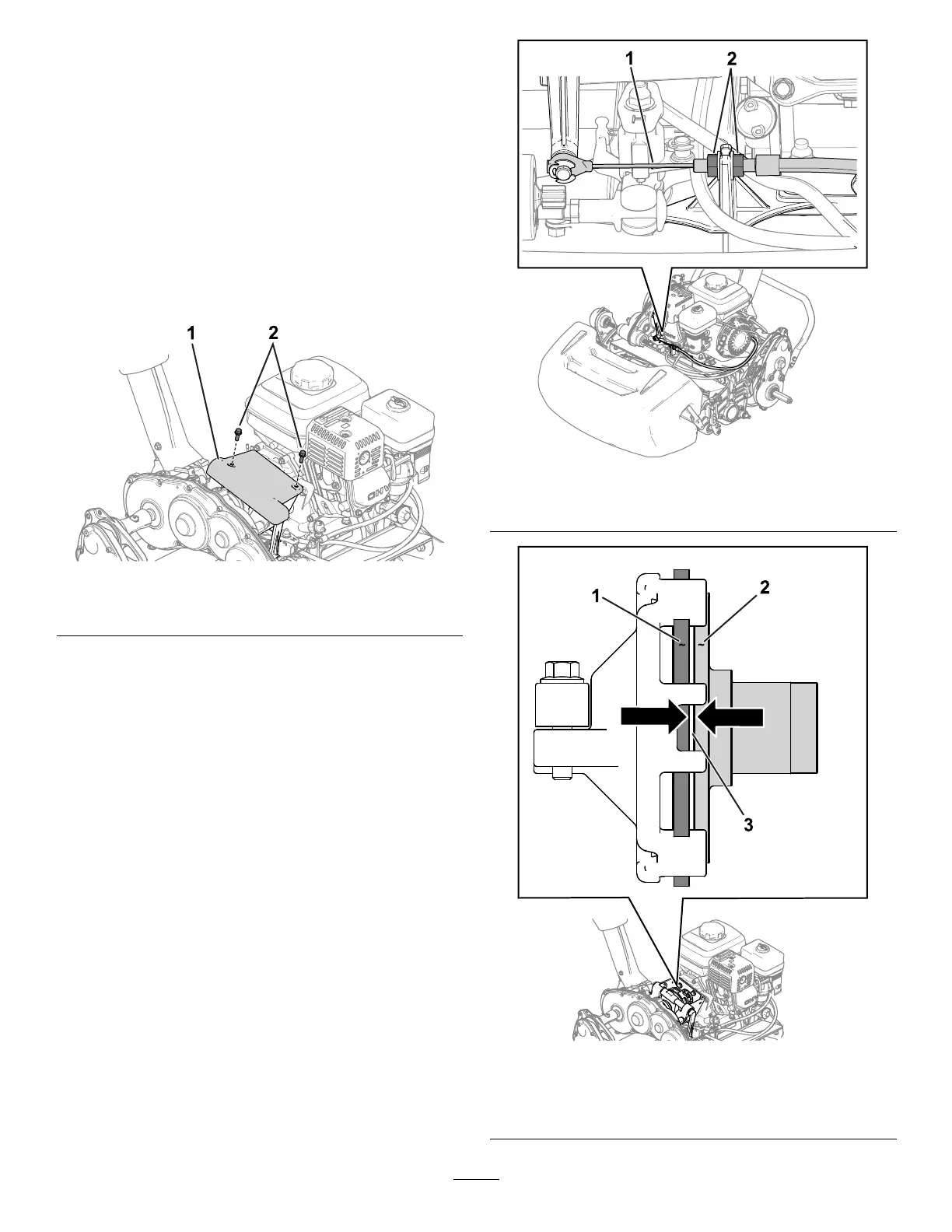

Figure28
1.Clutchcover
2.Bolt
2.Loosenthejamnutsandadjustthetraction
cablesothata1.5mm(0.06inch)gapis
betweenthefrictiondiscandthepressureplate
(Figure29andFigure30).
g274532
Figure29
1.Tractioncable2.Jamnut
g274479
Figure30
1.Frictiondisc
3.Gap—1.5mm(0.06inch)
2.Pressureplate
