Controls
g271082

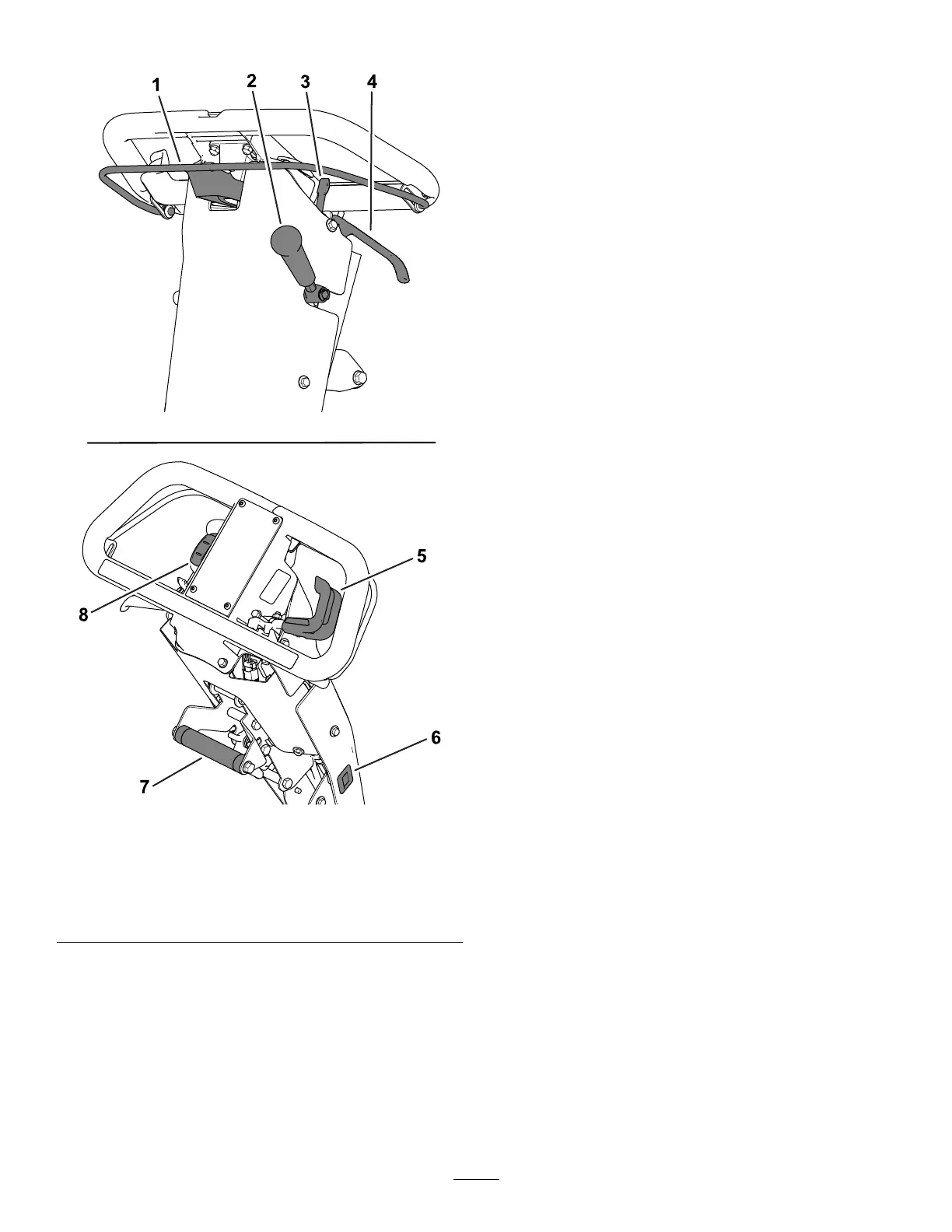

Figure7
1.Clutchbail
5.Throttlecontrol
2.Cutting-unit-drivelever
6.Hourmeter
3.Parking-brakelatch
7.Lift-assisthandle
4.Service-brakelever8.On/Offswitch
ClutchBail
Usetheclutchbail(Figure7)toengageordisengage
thetractiondrive.
•Engagethetractiondrive:Pullupandholdthe
bartothehandle.
•Disengagethetractiondrive:Releasethebar.
ThrottleControl
Usethethrottlecontrol(Figure7)toadjusttheengine
speed.
•Increasetheenginespeed:Rotatetheleverup.
•Decreasetheenginespeed:Rotatethelever
down.
On/OffSwitch
Theswitch(Figure7)allowsyoutostartorshutoff
theengine.
•Starttheengine:Pushdownontheupperpart
oftheswitch.
•Shutofftheengine:Pushdownonthelowerpart
oftheswitch.
Service-BrakeLever
Usetheservicebrake(Figure7)tosloworstopthe
machine.Pullthelevertowardthehandletoengage
theservicebrake.
Parking-BrakeLatch
Usetheparking-brakelatch(Figure7)toengagethe
parkingbrakewhileyouareawayfromthemachine.
•Engagetheparkingbrake:Engageandholdthe
service-brakeleverandrotatetheparking-brake
latchtowardyou.
•Disengagetheparkingbrake:Pullthe
service-brakelevertowardthehandle.
Cutting-Unit-DriveLever
Usethecutting-unit-drivelever(Figure7)toengage
ordisengagethecuttingunitwhiletheclutchbailis
engaged.
•Engagethecuttingunit:Movetheleverdown.
•Disengagethecuttingunit:Movetheleverup.
HourMeter
Thehourmeter(Figure7)recordsthetotalnumberof
hoursthattheenginehasbeenrunning.Refertothe
meterforschedulingregularmaintenance.
