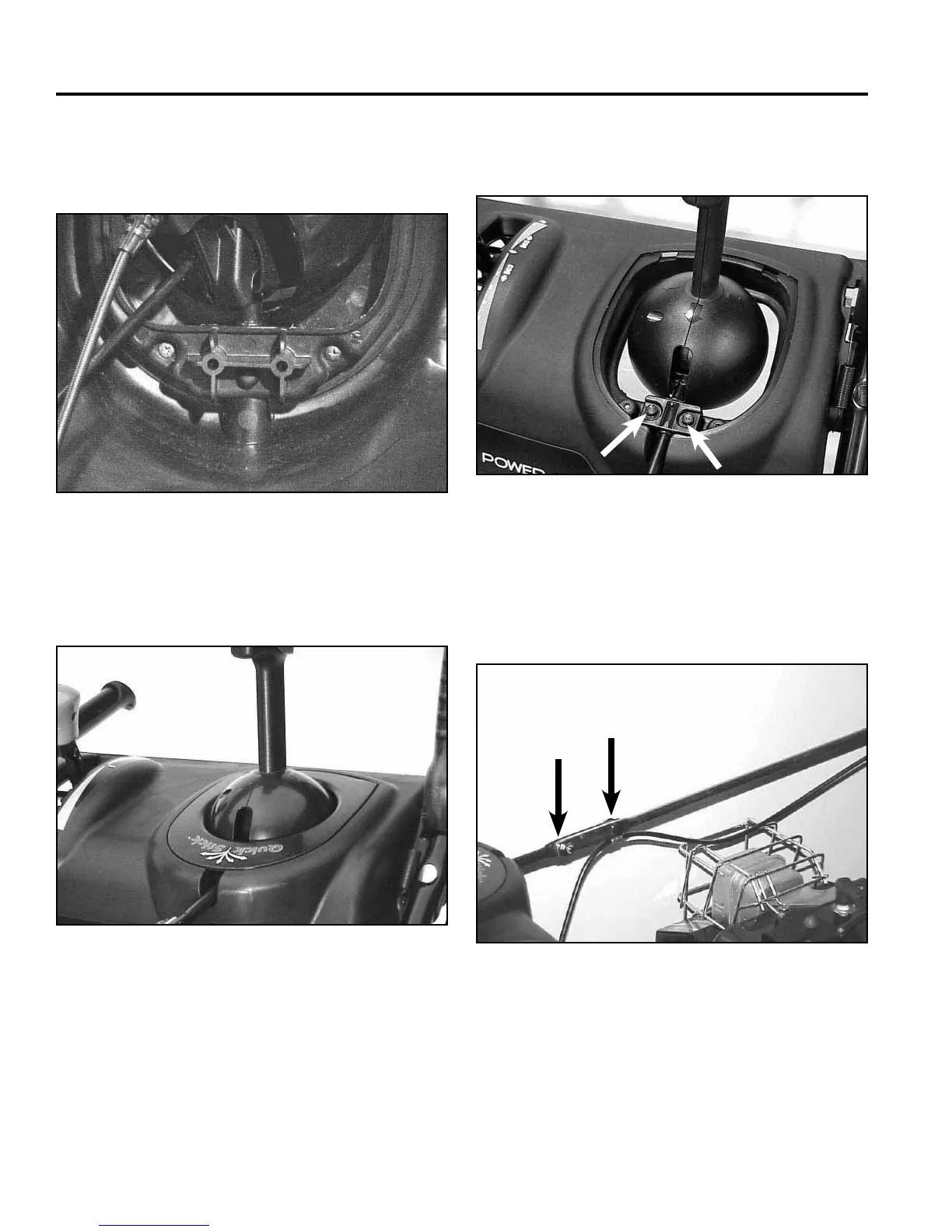

4-2 Power Max Service Manual
2. On the underside of the control panel, remove the
two screws holding the Quick Stick cover in place
(Fig. 015).
CONTROLS
4. Remove the two screws that retain the rod support
to the control panel (Fig. 017).
Fig 017 MVC-819X
5. Remove the two carriage bolts and nuts on the chute
control rod and lift the Quick Stick out of the control
panel. Note the location of the cable clamp, as it is
necessary for latch cable function (Fig. 018).
Fig 018 MVC-725F
Fig 016 MVC-902X
3. Lift the front cover and pull forward to release the
latch tabs on the rear. Set the cover aside (Fig. 016).
Fig 015 MVC-1869X
