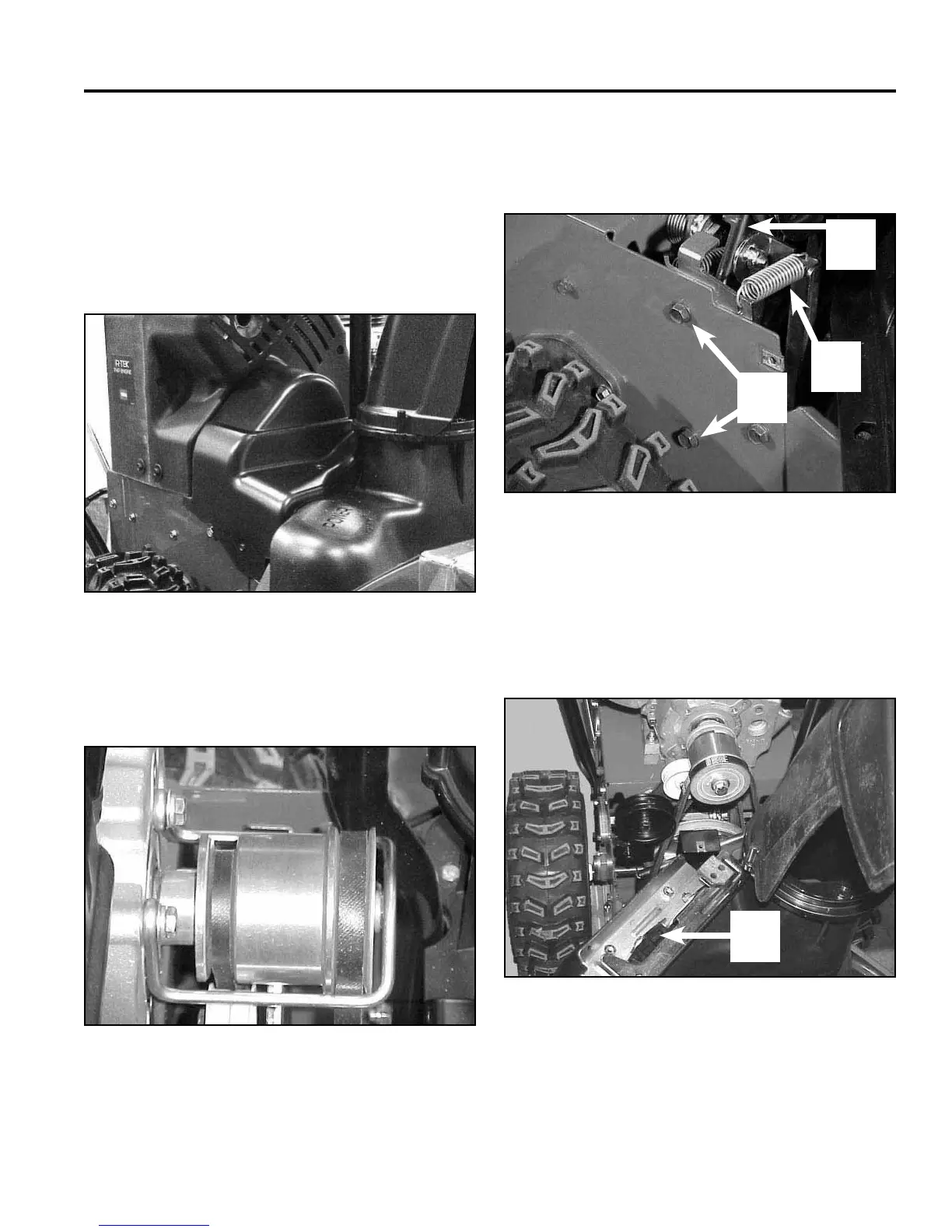

5-1Power Max Service Manual
BELT REPLACEMENT
1. To replace the belts begin by removing both belt
covers (Fig. 058). (On 2-cycle models only, remove
3 screws holding the front half of the engine shroud
to the chassis and the rear shroud. The belt cover
slides under the front of the engine shroud so this
will make belt cover removal much easier.)
Fig 058 MVC-006XB
2. Remove the belt guide. Be careful to avoid bending
the guide (Fig. 059).
Fig 059 MVC-007F
Fig 061 MVC-067X
4. The brake assembly can be lifted out of the chassis
(Fig. 061).
Fig 060 MVC-1883X
3. Remove the brake assembly for more working room.
Disconnect the spring, then remove the two bolts
through the side plate (Fig. 060).
AUGER BELT
A
B
C
A. Spring C. Bolts
B. Brake Assembly
A. Brake Assembly
A
