4-5Power Max Service Manual
Reverse the removal process for installation.
Note: The cable clamp must be installed on the
chute control rod or the cable latch will not
function.

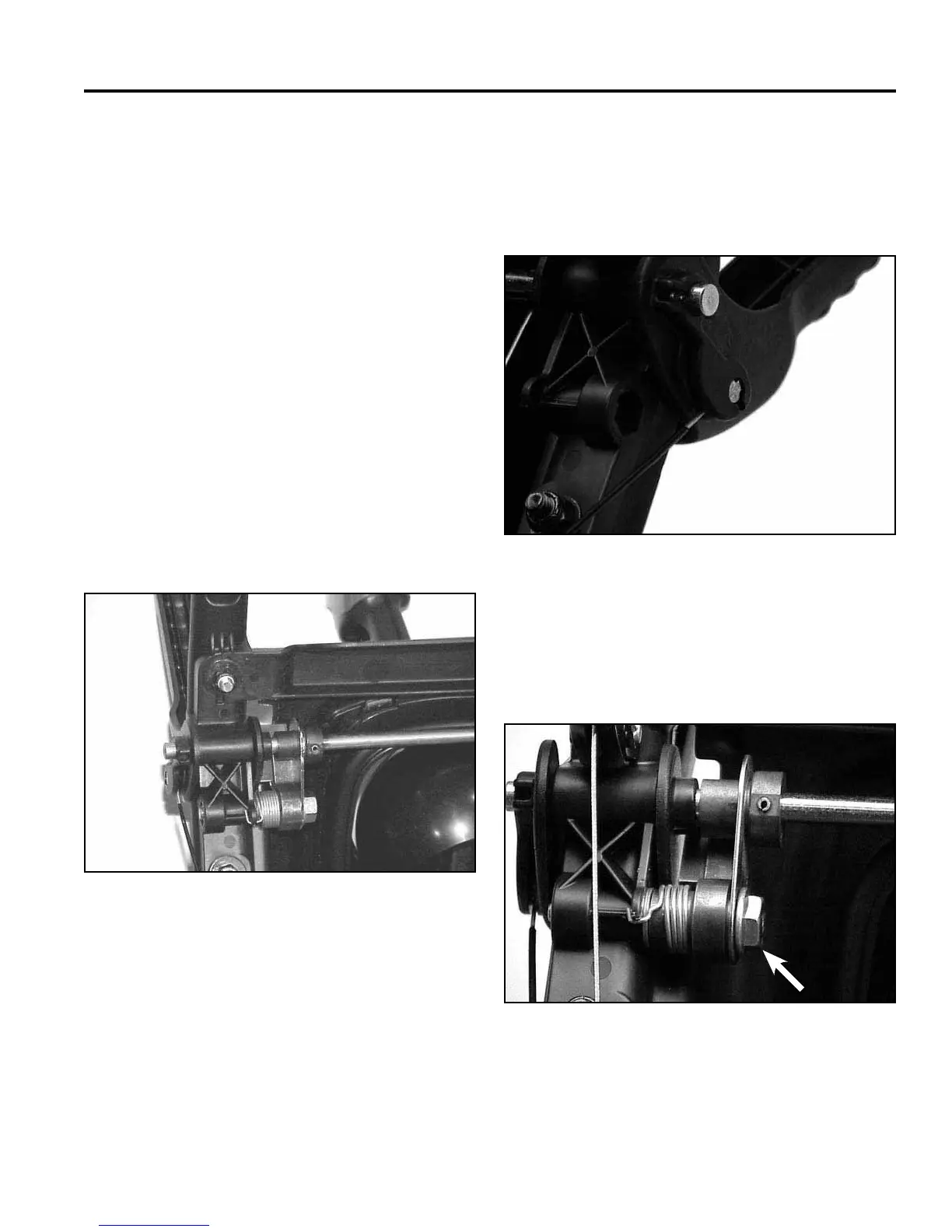

Fig 027 MVC-872X
For operator convenience there is an interlock between
the auger and traction lever. Once both are engaged
you only need to hold the auger lever. This allows a
free hand to change chute direction without having to
stop. The latch mechanism is located under the dash
(Fig. 027).
Fig 029 MVC-167X
2. Remove the Shoulder Screw under the left handgrip
(Fig. 029). When it is removed the Lockout Latch,
Torsion Spring, Flat Washer, and Locknut will drop
out.
Fig 028 MVC-171X
1. Disconnect the auger and traction cables from the
levers. If this is a wheel clutch model, disconnect the
wheel clutch cables (Fig. 028).
CONTROLS
3. Reverse the disassembly process for the remainder
of the assembly.
Installation
Disassembly
CONTROL INTERLOCK
