4-6 Power Max Service Manual
CONTROLS

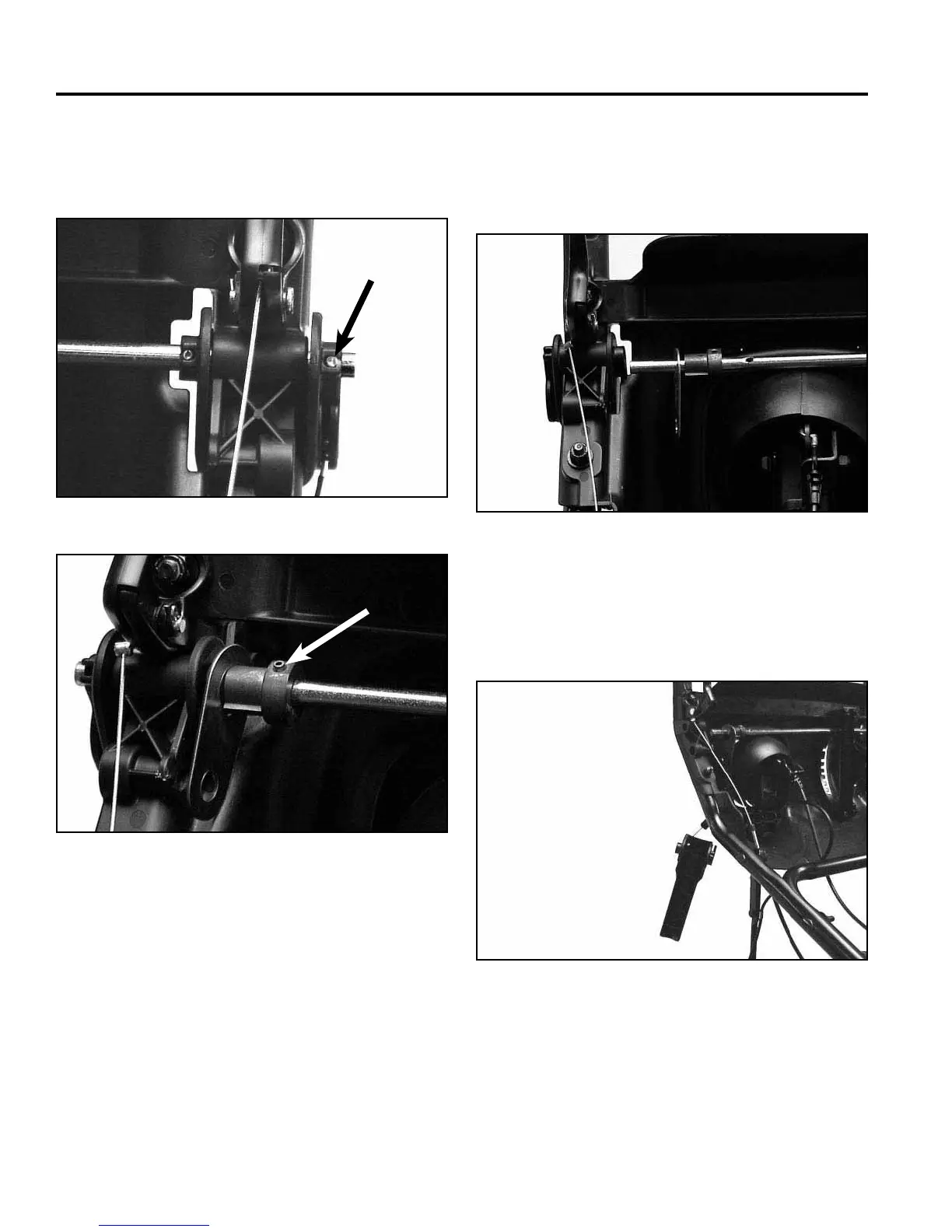

3. To remove the lockout rod, go to the right hand end.
There are 2 roll pins on the right side (Fig. 030) and
one in the lockout cam on the left (Fig. 031).
Fig 030 MVC-169X
Fig 031 MVC-170X
Fig 033 MVC-174X
5. Since the auger and traction levers pivot on the
lockout rod this is the method required to replace the
levers (Fig. 033).
Fig 032 MVC-172X
4. Once they are driven out the lockout rod can be
moved to the side and removed (Fig. 032). The
lockout link can now be removed from the lockout
rod.
Note: Steps 1 and 2 above do not need to be done
in that order. In fact you can remove the rod
without removing the shoulder bolt and vice
versa.
