10-4 Power Max Service Manual
DISCHARGE CHUTE

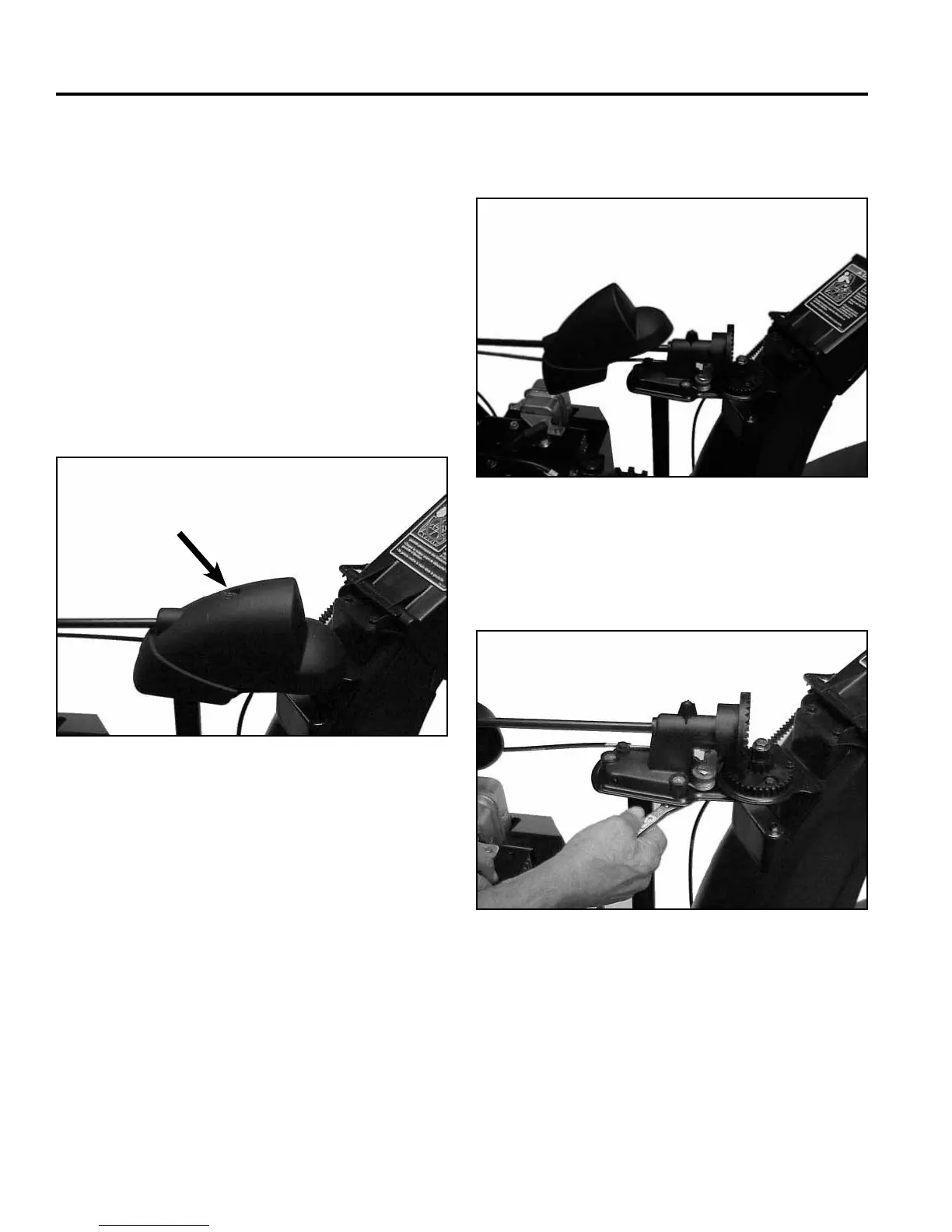

Fig 217 MVC-143X
The chute gears are located on top of the support tube
under a cover. These gears connect the Quick Stick to
the chute and provide the means to rotate the chute side
to side.
Operation
CHUTE GEARS
2. Raise the front of the cover and slide it to the rear
(Fig. 218).
Fig 218 MVC-144X
3. Remove the locknut and washer from the bottom of
the 3 shoulder screws (Fig. 219).
Fig 219 MVC-146X
1. To disassemble the chute gears, begin by removing
the screw on the chute gear cover (Fig. 217).
Disassembly
