10-5Power Max Service Manual
DISCHARGE CHUTE

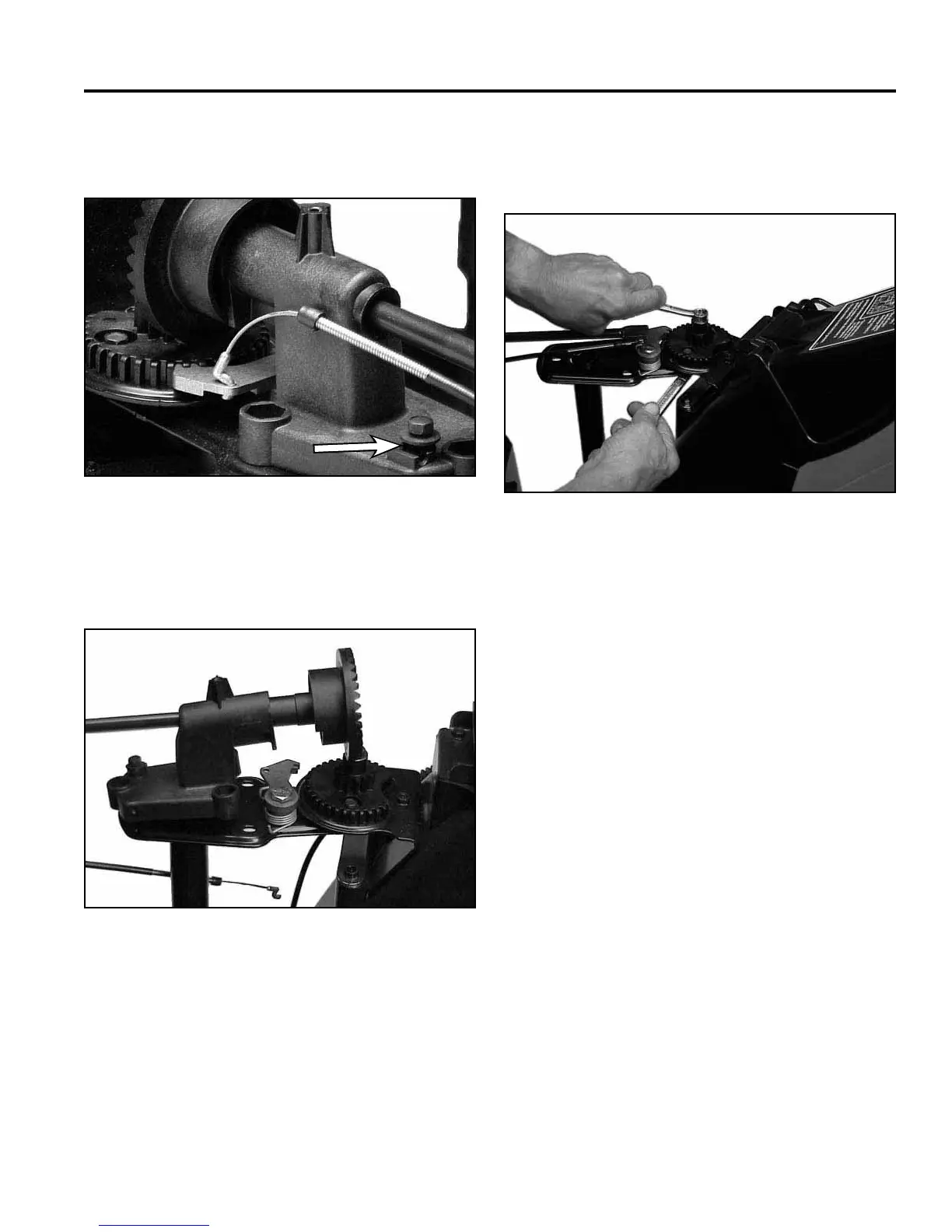

Fig 221 MVC-149X
5. Raise the front of the face gear and slide it off the
chute rod (Fig. 221).
Fig 220 MVC-152X
4. Loosen the screw securing the latch cable and
unhook the cable from the latch (Fig. 220).
7. The chute gear is attached to the bracket by two
screws. Remove the screws and lift the gear off the
bracket. Note: a plastic spacer is under the bracket.
Fig 222 MVC-154X
6. Remove the shoulder bolt from the chute gear
(Fig. 222).
