WHEEL CLUTCH
TRACTION DRIVE SYSTEM

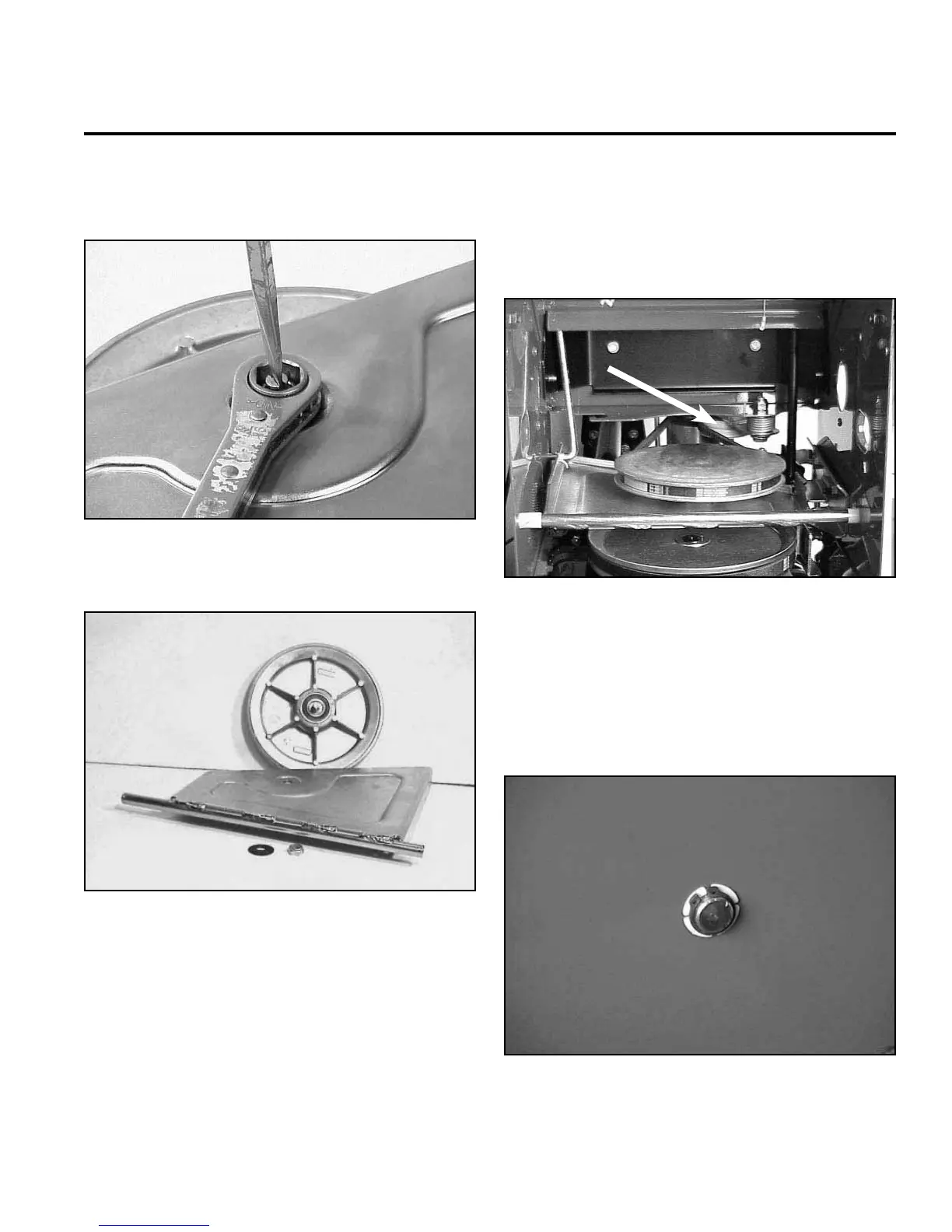

1. Install pivot plate assembly into the housing and
install belt. The idler pulley should be pushed away
from you to install the pivot plate (Fig. 147).
Fig 147 MVC-036X.jpg
2. Install the two bushings and the two “C” clips onto
the pivot plate shaft (Fig. 148).
Fig 148 MVC-037X.jpg
DRIVE SYSTEM REASSEMBLY
28. Remove the locknut from pivot pulley and separate
pulley from pivot plate (Fig. 145 and Fig. 146).
Fig 145 MVC-870XB.jpg
Fig 146 MVC-010X.jpg
A. Idler Pulley
