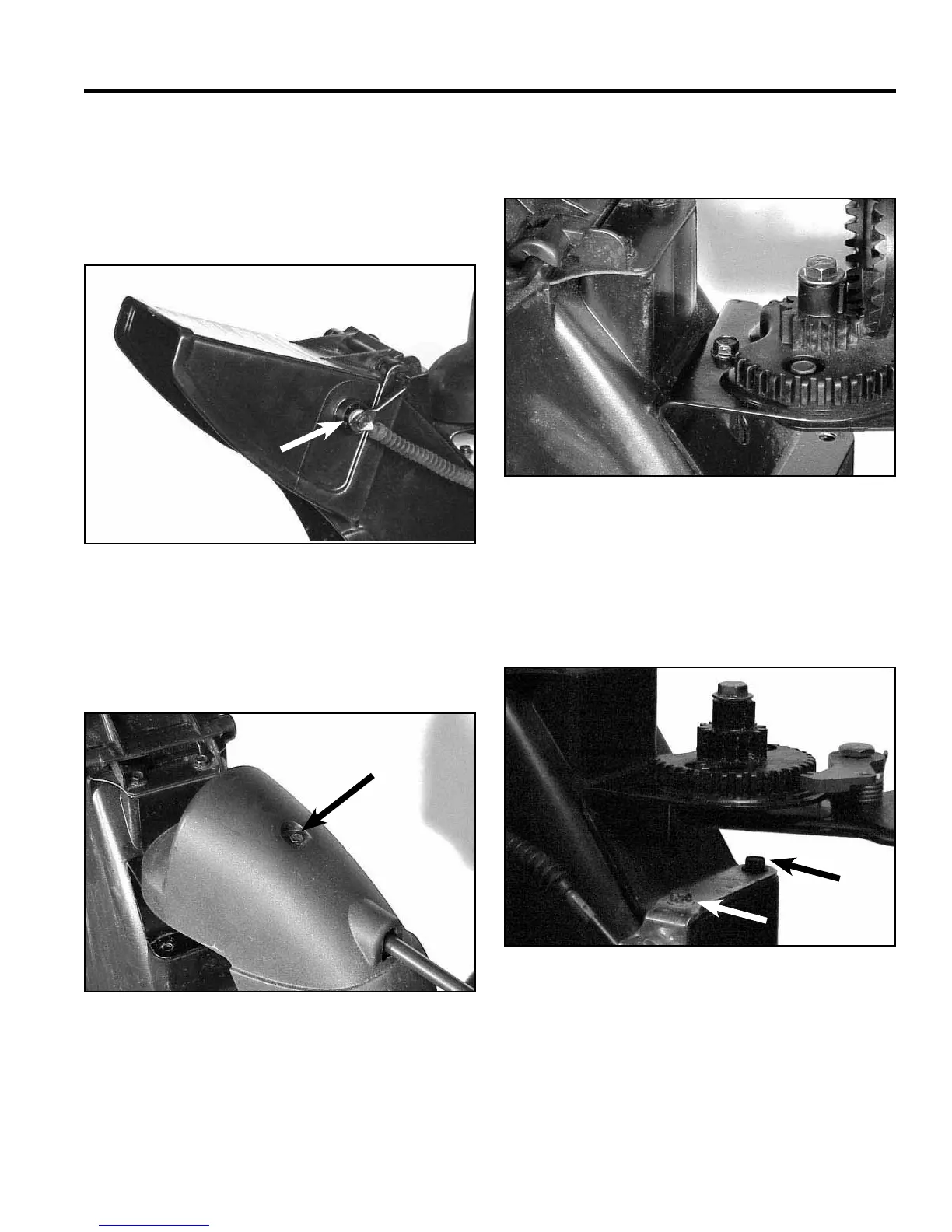

10-1Power Max Service Manual
Fig 207 MVC-883X
2. Remove the single screw retaining the gear cover,
lift the front of the cover, and slide it to the rear
(Fig. 207).
Fig 206 MVC-3878X
1. Disconnect the defl ector cable from the defl ector
(Fig. 206).
CHUTE AND AUGER COVER
REMOVAL
DISCHARGE CHUTE
3. Remove the single screw between the gear and the
chute (Fig. 208).
Fig 208 MVC-884X
4. Remove two screws that secure the cable clamp
bracket and the chute support bracket to the chute
(Fig. 209). Leave the cable clamped to the bracket
unless the cable is to be replaced and set aside.
Fig 209 MVC-824X
