10-6 Power Max Service Manual
DISCHARGE CHUTE

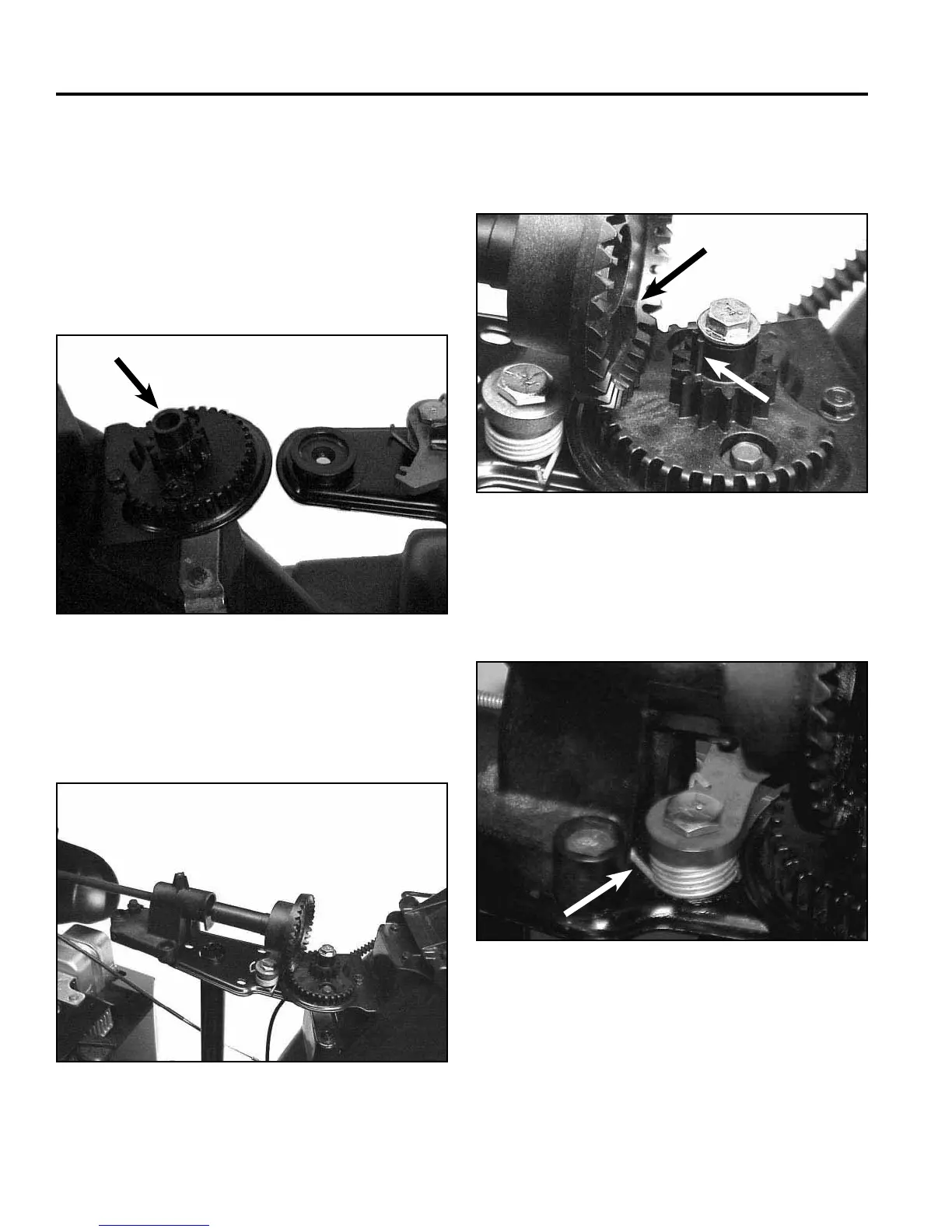

Fig 224 MVC-161X
3. Slide the face gear mount on the chute rod, if
removed. Slide the face gear on the chute rod
(Fig. 224).
Fig 223 MVC-818X
1. Attach the chute gear to the bracket with the two
screws.
2. Place the spacer cupped side up on the support
tube, then set the gear and bracket down on it. The
shoulder bolt goes through and it secured with the
washer and locknut (Fig. 223).
Assembly
4. The face gear has a rib molded into it and the chute
gear has 2. Line up the ribs and place the face gear
mount onto the support tube (Fig. 225).
Fig 225 MVC-160X
5. One end of the spring hooks over the chute latch,
the “L” end rests against the front edge of the face
gear mount (Fig. 226).
Fig 226 MVC-828X
