WHEEL CLUTCH

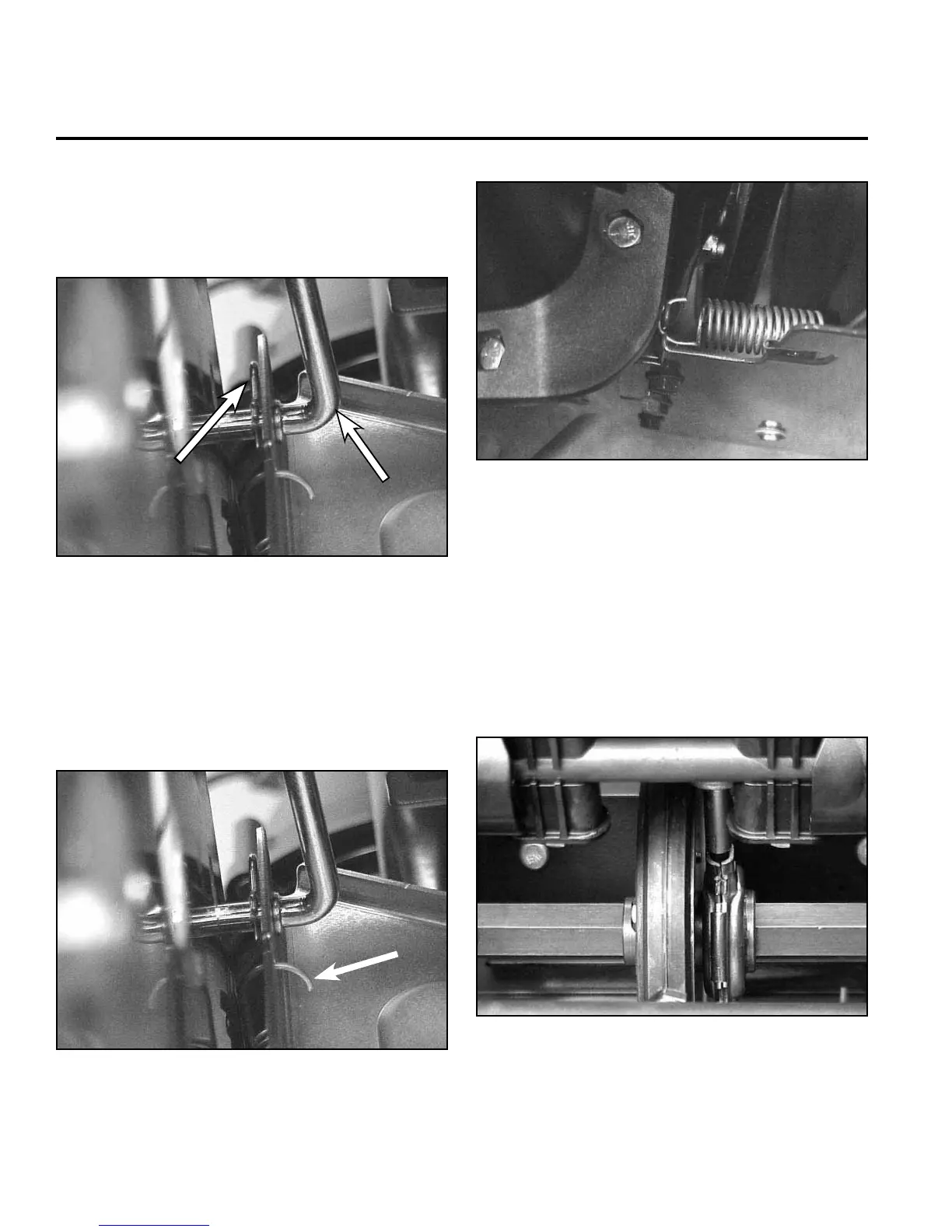

TRACTION DRIVE SYSTEM
Fig 150 MVC-039X.jpg
4. Install long end of spring to cut out on the pivot plate
(Fig. 150) and the short end of the spring to the
frame (Fig. 151).
Fig 149 MVC-039X.jpg
3. Install the speed control linkage through the pivot
plate and install the hair clip into the hole of the
speed control linkage on the outside of the pivot
plate (Fig. 149).
Fig 151 MVC-041X.jpg
5. Install friction wheel assembly. You can lay the
shift mechanism onto the housing and insert shift
shaft into friction wheel assembly in the direction
shown. It is important that the friction wheel and shift
mechanism are to the right of the snowthrower (Fig.
152).
Note: Make sure the wheel is free of dirt, oil, anti-
seize or any other lubricant.
Fig 152 MVC-031XYX.jpg
A
A
B
B
A. Hairpin Cotter B. Speed Control Link
A. Spring
A
