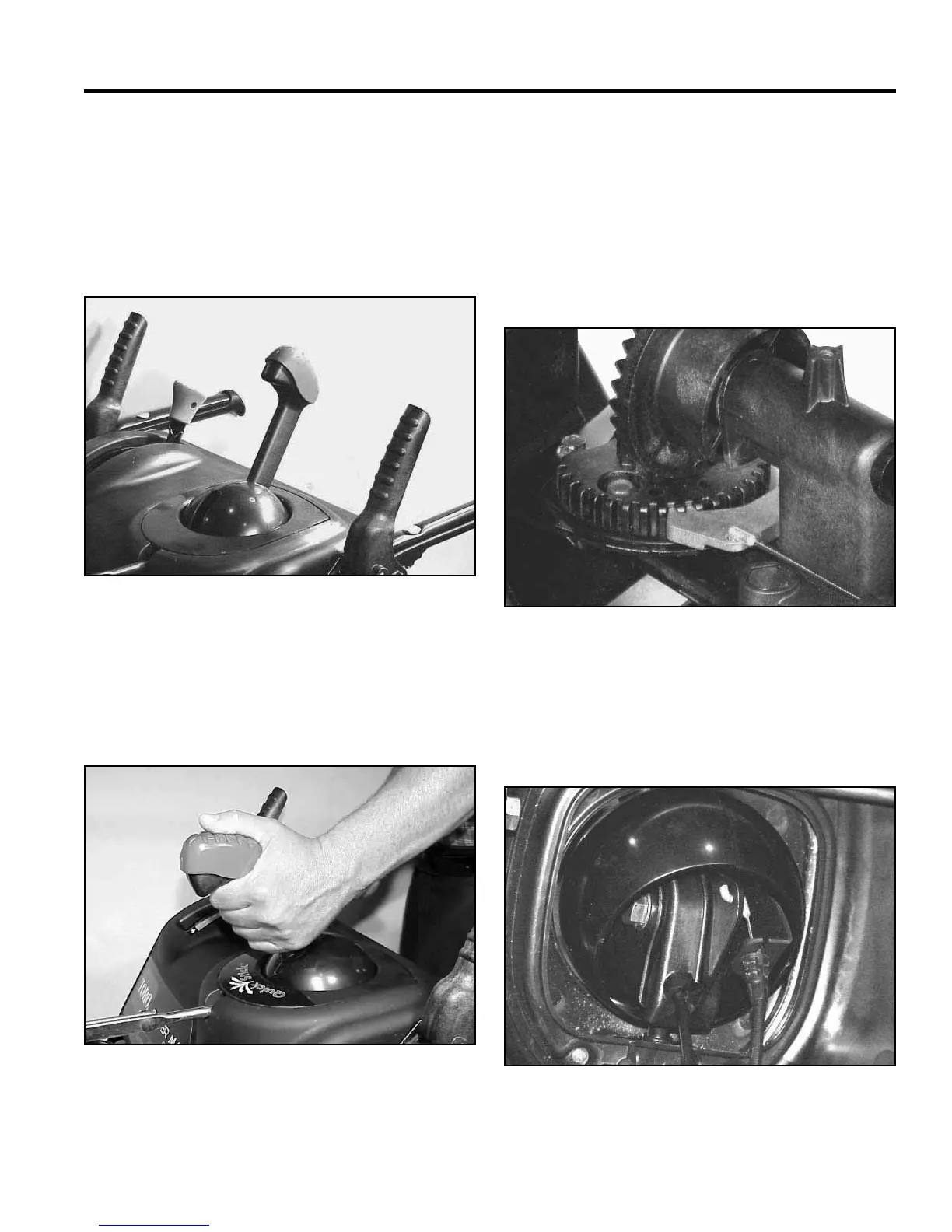

4-1Power Max Service Manual
Fig 012 MVC-039F
When the operator places their hand on the stick the
cover is depressed, which draws a cable to unlatch the
chute (Fig. 012). Side to side motion rotates the rod and
gear and causes the chute to pivot side to side.
Fig 011 MVC-775X
The Quick Stick is a single lever control for chute side-
to-side movement and vertical movement of the defl ector
(Fig. 011).
Operation
Fig 014 MVC-870XA
Fig 013 MVC-772X
The defl ector up and down motion is unlatched inside
the quick stick itself and a cable controls the up and
down motion.
Removing the cover just behind the chute allows access
to the chute rotation gears and chute latch (Fig. 013).
Since these gears are plastic they do not require
lubrication. The latch cable adjustment is covered in the
control adjustment section.
CONTROLS
QUICK STICK
1. To remove the Quick Stick, unhook the Z bend and
disconnect the defl ector cable from the underside of
the Quick Stick (Fig. 014).
Removal
