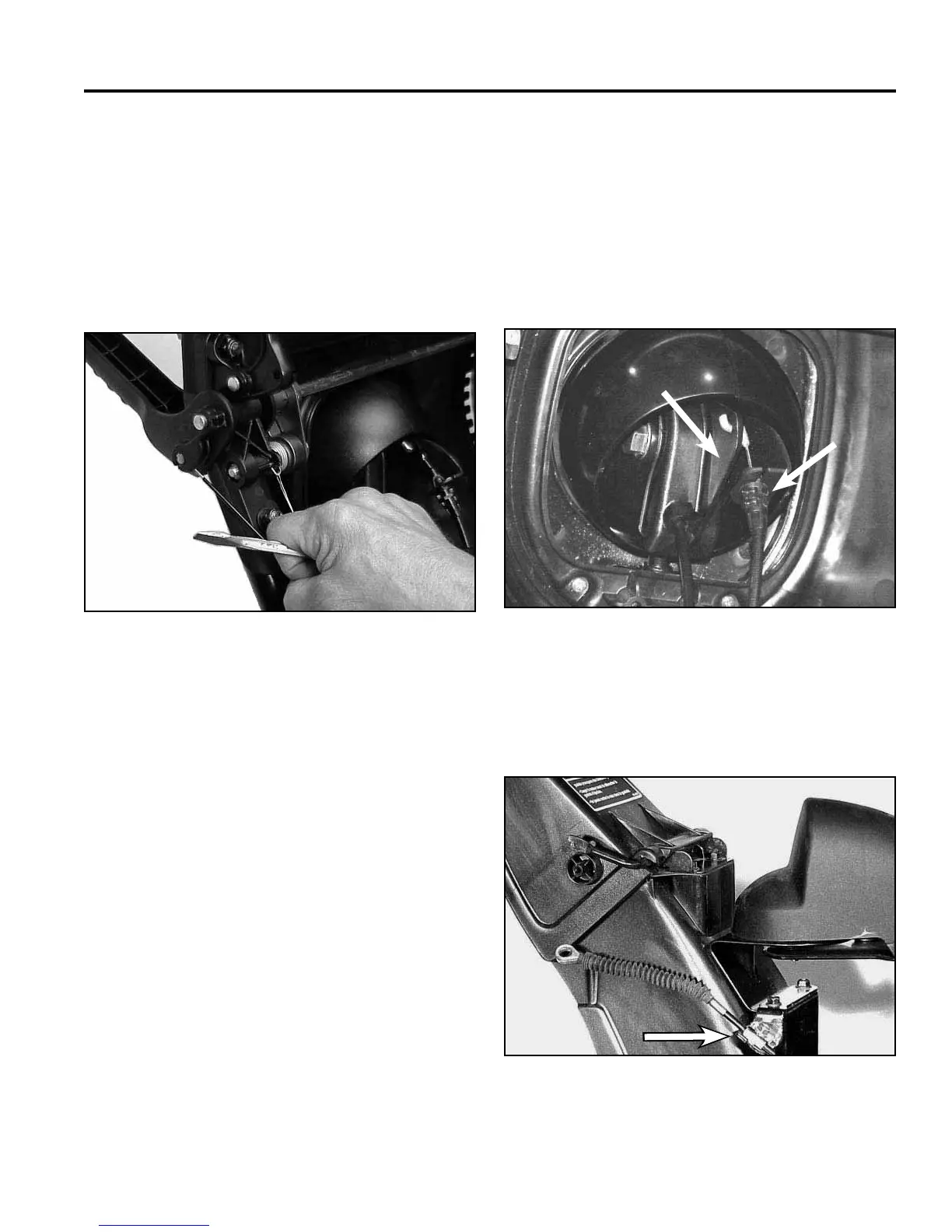

4-7Power Max Service Manual
CONTROL OPERATION,
REPLACEMENT, AND ADJUSTMENT
Defl ector Cable
CONTROLS
1. To remove the defl ector cable, depress the tabs that
retain the cable in the bracket, under the control
panel. Disconnect the Z bend on the end (Fig. 035).
Fig 035 MVC-870X
2. Remove the cable clamp and disconnect the cable
end from the defl ector. Reverse this process to
install a new cable (Fig. 036).
Fig 036 MVC-882X
Fig 034 MVC-176X
Reverse the above process for assembly.
Note the spring on the lockout latch. The end with the
slight bend goes behind the lockout latch and the hooked
end goes over the small tab. It is easiest to install the
latch mechanism then hook the end of the spring with a
wire and pull it into place (Fig. 034).
