8-6 Power Max Service Manual
Reassembly
Reassemble in reverse order.
Reassembly notes:

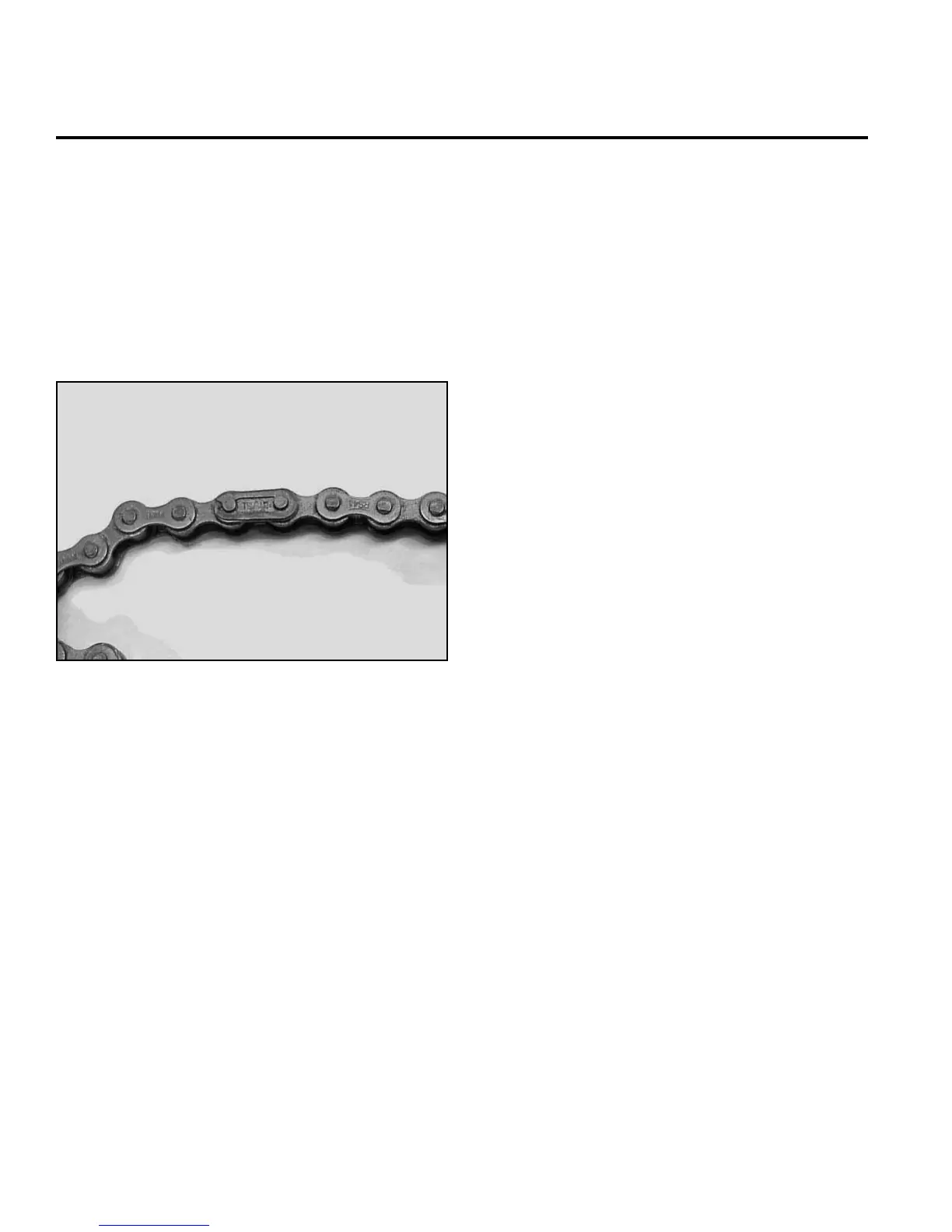

1. If you removed the master link from the chain, it
must be assembled with the closed end of the
master link going in the direction of rotation in
forward gear (Fig. 114).
Fig 114 MVC-051X.jpg
2. Fastener Torque
A. All fasteners seated against plastic should be
securely tightened but not deform the plastic.
B. Self tapping screw for the ends of the
intermediate shaft. 170 - 300 in-lbs.
(196 - 345kg/com).
3. Lubrication
A. Light coat of engine oil to intermediate shaft.
B. Apply light coat of anti-seize to outer 5” of axle
shaft (circumference of 44 tooth axle gear).
NON-WHEEL CLUTCH
TRACTION DRIVE SYSTEM
