9-11Power Max Service Manual
WHEEL CLUTCH
TRACTION DRIVE SYSTEM

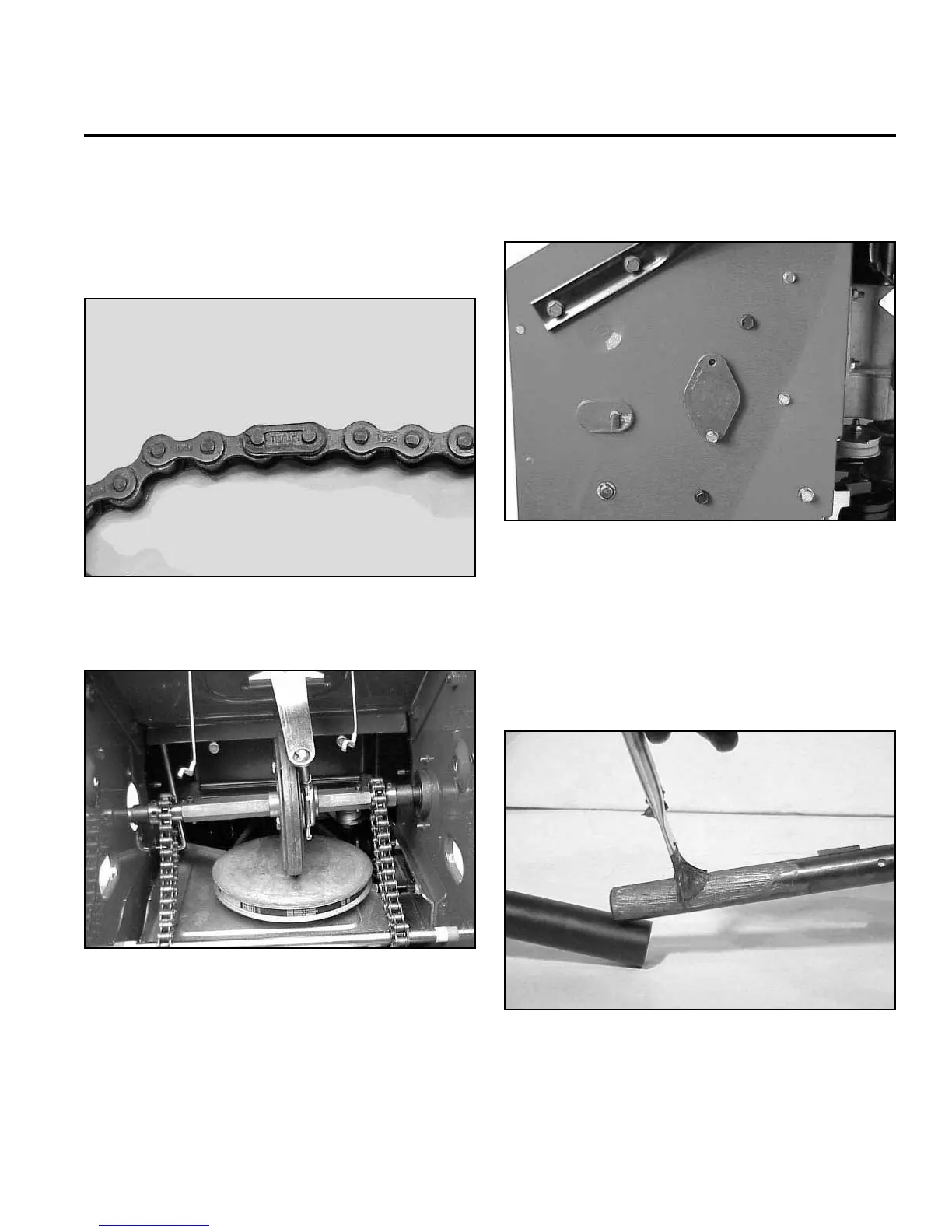

7. Install both bearing retainers (If both were removed)
(Fig. 155).
Fig 155 MVC-864XYZ.jpg
8. Before installing the axle with the 44-tooth sprockets
apply a light coat of anti-seize to the outer 5 inches
of both ends of the axle shaft. Also apply a light coat
to the inside diameter at both ends of the tube about
4 inches (Fig. 156).
Fig 156 MVC-046X.jpg
6. Before mounting the friction wheel assembly, install
the chains onto the 8-tooth sprockets making sure
the closed end of the master link is going in the
direction of rotation in the forward gears (Fig. 153
and 154).
Fig 153 MVC-051X.jpg
Fig 154 MVC-867X.jpg
