10-7Power Max Service Manual
DISCHARGE CHUTE

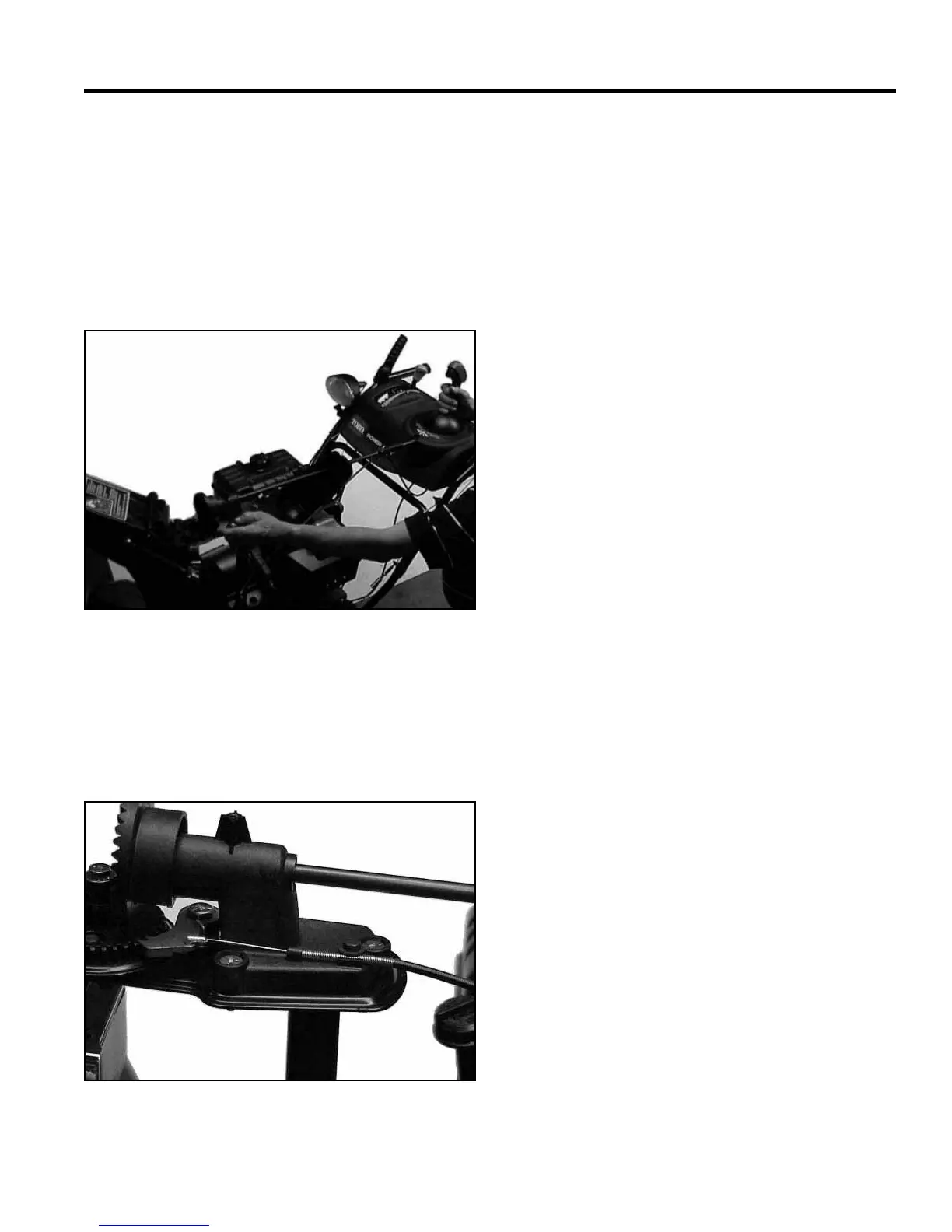

Fig 228 MVC-165X
7. Install the end of the latch cable in the latch and
slip the cable under the clamp screw. Pull the cable
to the rear until the latch just begins to move and
tighten the clamp (Fig. 228).
Fig 227 MVC-164X
6. The gear lash for the chute gears must now be
set. No actual measurement is necessary. The
3 shoulder bolts on the face gear mount are in
slotted holes. Push the face gear mount forward
to fully engage in the gears. Snug one or two of
the locknuts, hold the chute latch back and rotate
the chute using the quick stick (Fig. 227). It should
move smoothly. If not move the face gear mount as
needed. Secure the 3 locknuts.
8. Install the gear cover and screw.
