10-3Power Max Service Manual
DISCHARGE CHUTE

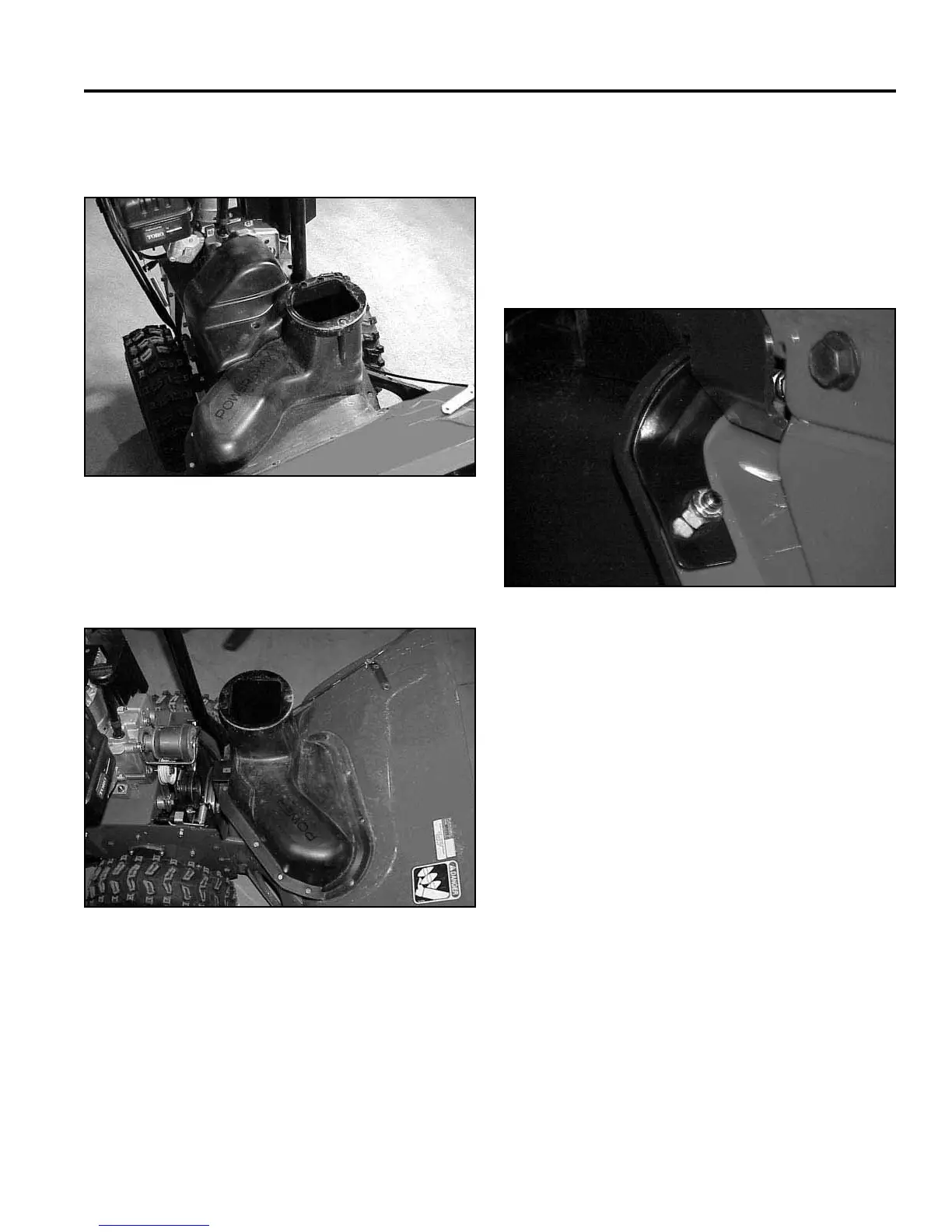

Fig 215 MVC-898XA
The auger cover is attached to the auger housing with
carriage bolts and locknuts (Fig. 215).
Fig 214 MVC-893XA
If the auger cover is to be removed the fi rst step is to
remove both of the belt covers (Fig. 214).
Fig 216 MVC-849X
Assemble in reverse order. The metal seal is installed
under the mounting fl ange on the left rear corner of the
auger housing. (Fig. 216).
Note: Do not over-tighten to the point the cover
starts to deform. Just seating the nut is
enough; the nylock feature will keep if from
loosening.
