4-12 Power Max Service Manual
CONTROLS
Assembly

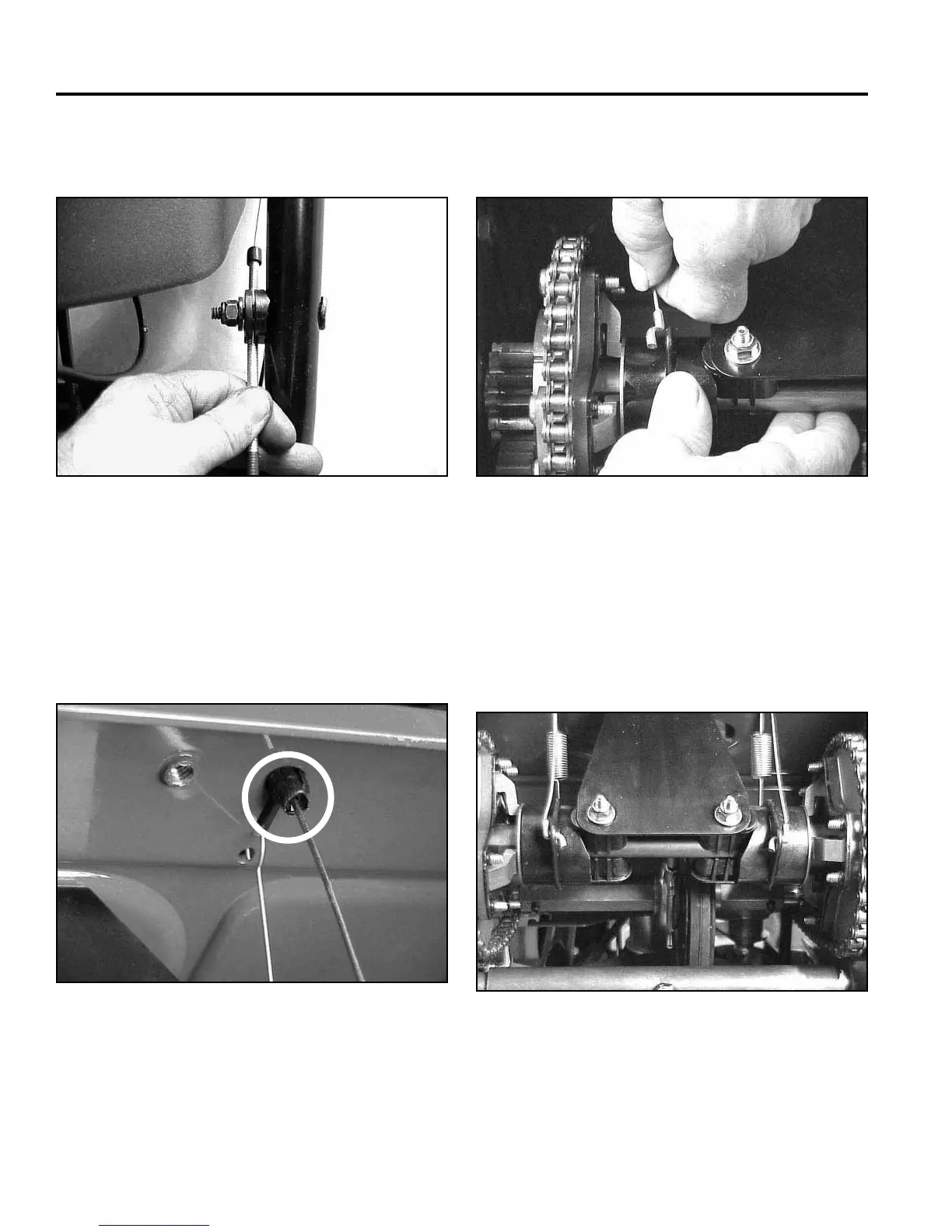

2. Remove nut and washer that attach the cable clamp
to the handle (Fig. 051).
Fig 051 MVC-889XYL
3. Slip the cable Z bend out of the wheel clutch lever
on the handle.
4. Reach under the shift plate and compress the small
ears on the cable fi tting (Fig. 052). The cable fi tting
can then be pushed out of the shift plate.
Fig 052 MVC-899X
Fig 054 MVC-878XYZ1
1. Feed the lower end of the cable through the shift
plate and snap the cable into the plate. Install the
lower end of the cable into the shift collar outside in,
as shown (Fig. 054).
Fig 053 MVC-898XB
5. Disconnect the lower end of the cable from the shift
collar (Fig. 053).
