9-2 Power Max Service Manual

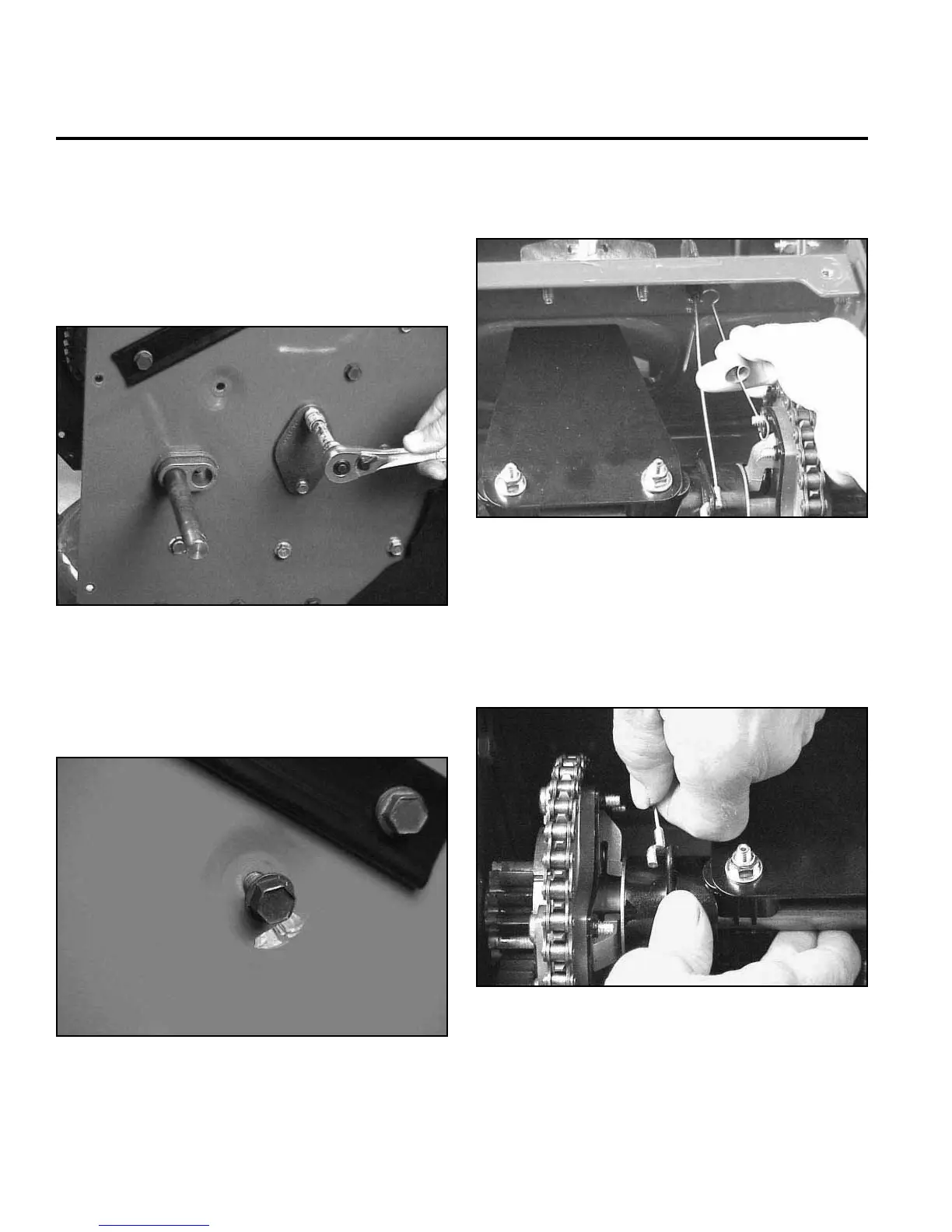

4. Remove 2 cap screws securing the bearing retainers
that hold the hex shaft to each side of the traction
assembly and remove both bearing retainers (Fig.
118).
Note: This will ease removal and reinstallation of the
drive chains.
Fig 118 MVC-786.jpg
WHEEL CLUTCH
TRACTION DRIVE SYSTEM
5. Remove both bolts that hold the wheel clutch
assembly to the housing (Fig. 119).
6. Remove extension spring - Unhook spring from
lower clutch collar and housing (Fig. 120).
Fig 119 MVC-895X.jpg
Fig 120 MVC-897springX.jpg
7. Remove clutch cables - Rotate the shift collar up to
release tension on the clutch cable and maneuver Z
bend of the cable end out of the upper clutch collar
(Fig. 121).
Fig 121 MVC-898XB.jpg
