9-19Power Max Service Manual
WHEEL CLUTCH
TRACTION DRIVE SYSTEM

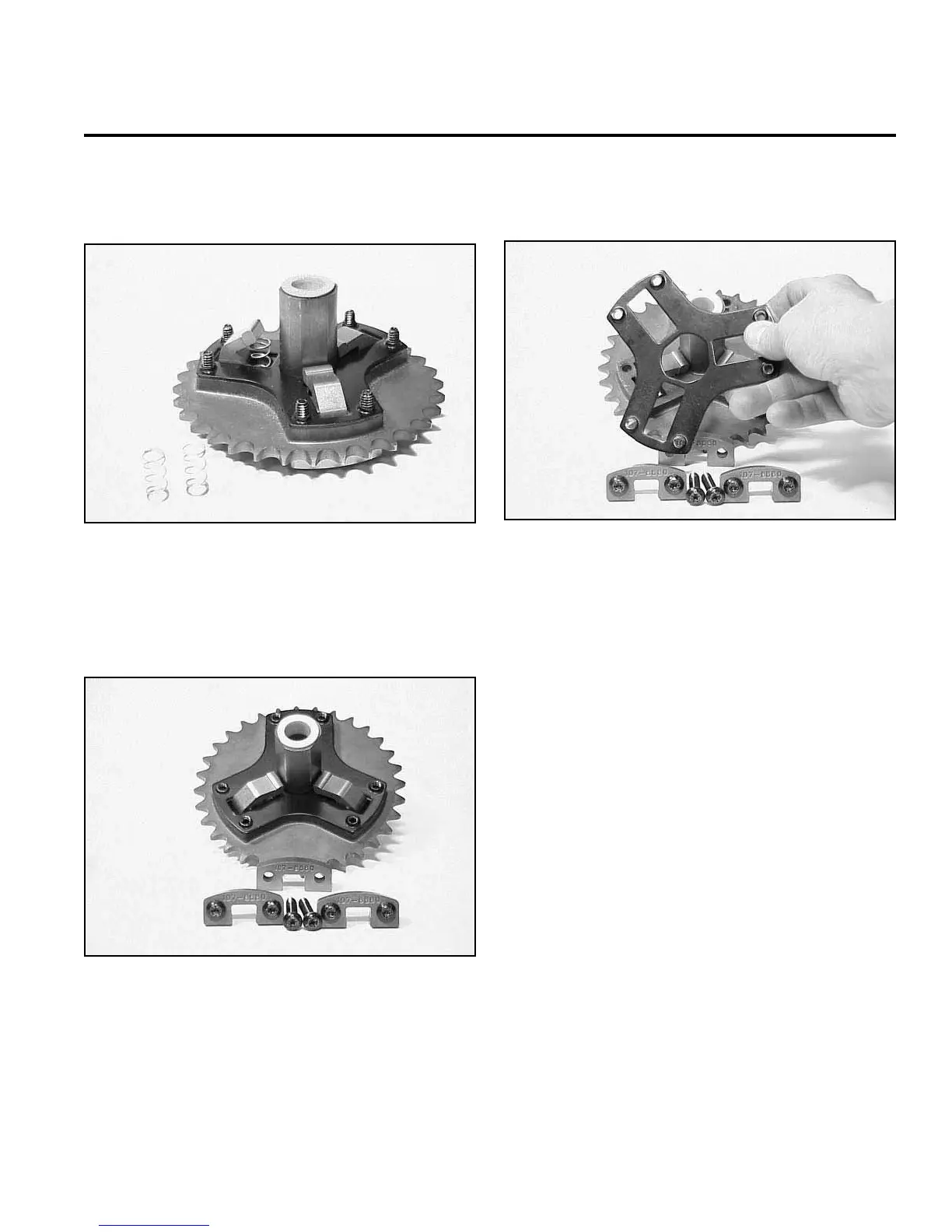

Fig 185 MVC-884XB.jpg
7. Remove the 3 (per gear) compression springs from
under the pawls and set aside (Fig. 185).
8. Remove 6 (per side) T-27 torx screws that hold the
pawl supports (Fig. 186).
Fig 186 MVC-886X.jpg
9. Remove the retainer plate off of the gear hub (Fig.
187).
Fig 187 MVC-888XWC.jpg
