Toro ProCore User Manual

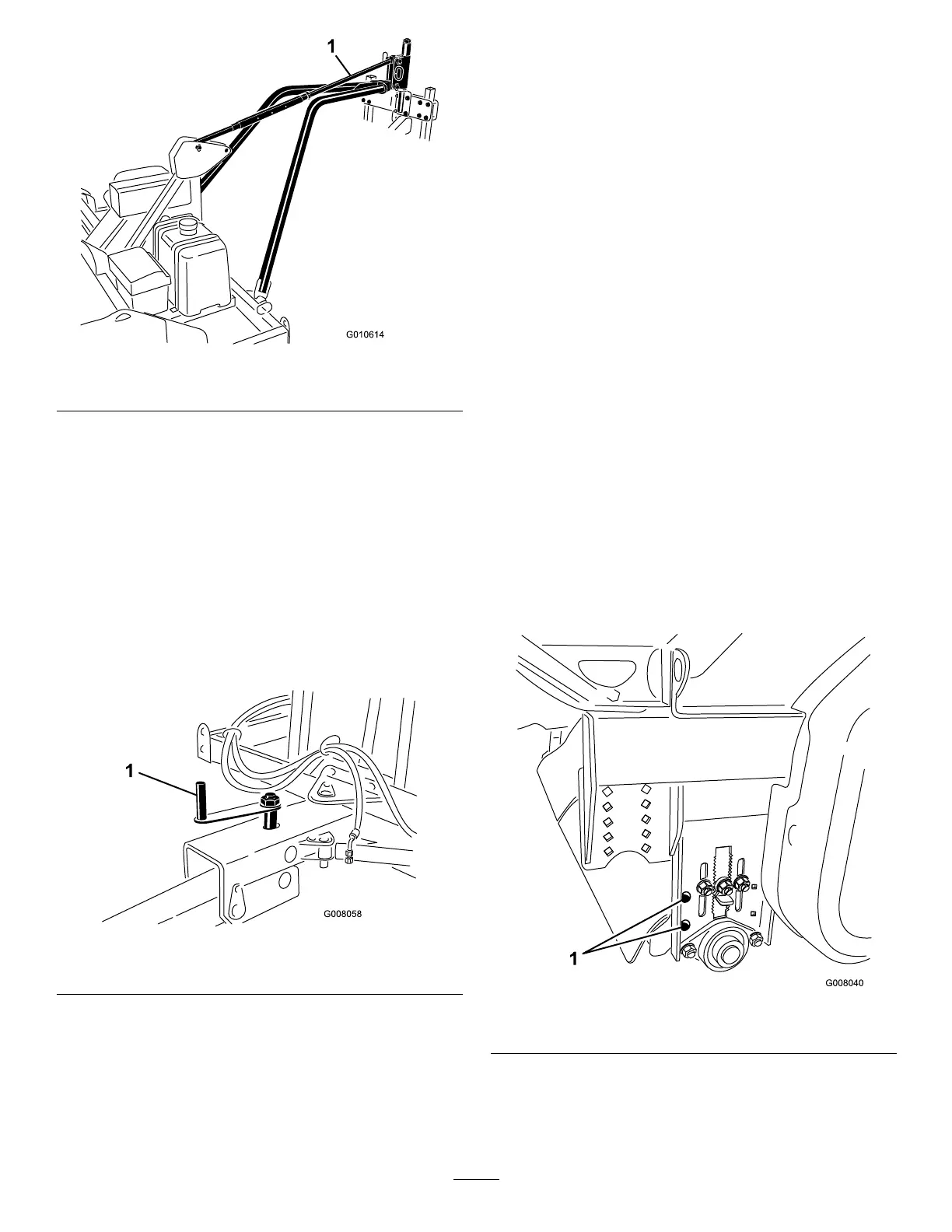

Figure31
1.Connectinglink
TowHitch
•Ifthefrontoftheframeislower,turnthe
levelingcrankclockwisetoraisetheframe.
•Ifthefrontoftheframeishigher,turnthe
levelingcrankcounterclockwisetolowerthe
frame.
Note:Whenturningthelevelingcrank,make
sureitdoesnotcontactthehydraulichoses.
Whendoneleveling,makesurethecrankis
positionedtotheleftsideofthetowhitchsoit
doesnotinterferewiththehoses.
Figure32
1.Levelingcrank
Note:Ifthelevelingcrankisdifcultto
turn,lowerthetransportwheelsontheCore
Processortorelievesomeofthepressureon
thecrank.
AdjustingtheBrushHeightin
theField
Whenoperatingthecoreprocessor,theframeshould
beleveltothegroundorthefrontoftheframeshould
beslightlyhigher.Adjusthebrushdownwarduntilit
justbeginstopickupcores.
WiththeOnePassHitch,lowerthebrushbyadjusting
theconnectinglinkuntilthebrushcollectsallofthe
cores.Shorteningtheconnectinglinkwilllowerthe
brush,whilelengtheningthelinkwillraisethebrush.
WiththeTowHitch,lowerthebrushbyadjustingthe
levelingcrankuntilthebrushcollectsallofthecores.
Rotatingthelevelingcrankcounterclockwisewillraise
thebrush,whilerotatingthelevelingcrankclockwise
willlowerthebrush.
Note:Becarefulnottoengagethebrushtoofarinto
thegrassasitcancauseprematurewearordamageto
thebrushandturfdamage.
AdjustingtheRollerScraper
Therollerscraper(Figure33)shouldbeadjustedso
thereis1/16"clearancebetweenthescraperandthe
roller.Loosentherollerscraperadjustingfasteners,
positionrollerasdesiredandtightenfasteners.
Figure33
1.Rollerscraperadjustingfasteners
25
