SPECIFICATIONS
2-5
Toro TimeCutter SW/SWX Service Manual
2
Hydro-Gear ZT-2800 Hydrostatic Transaxles

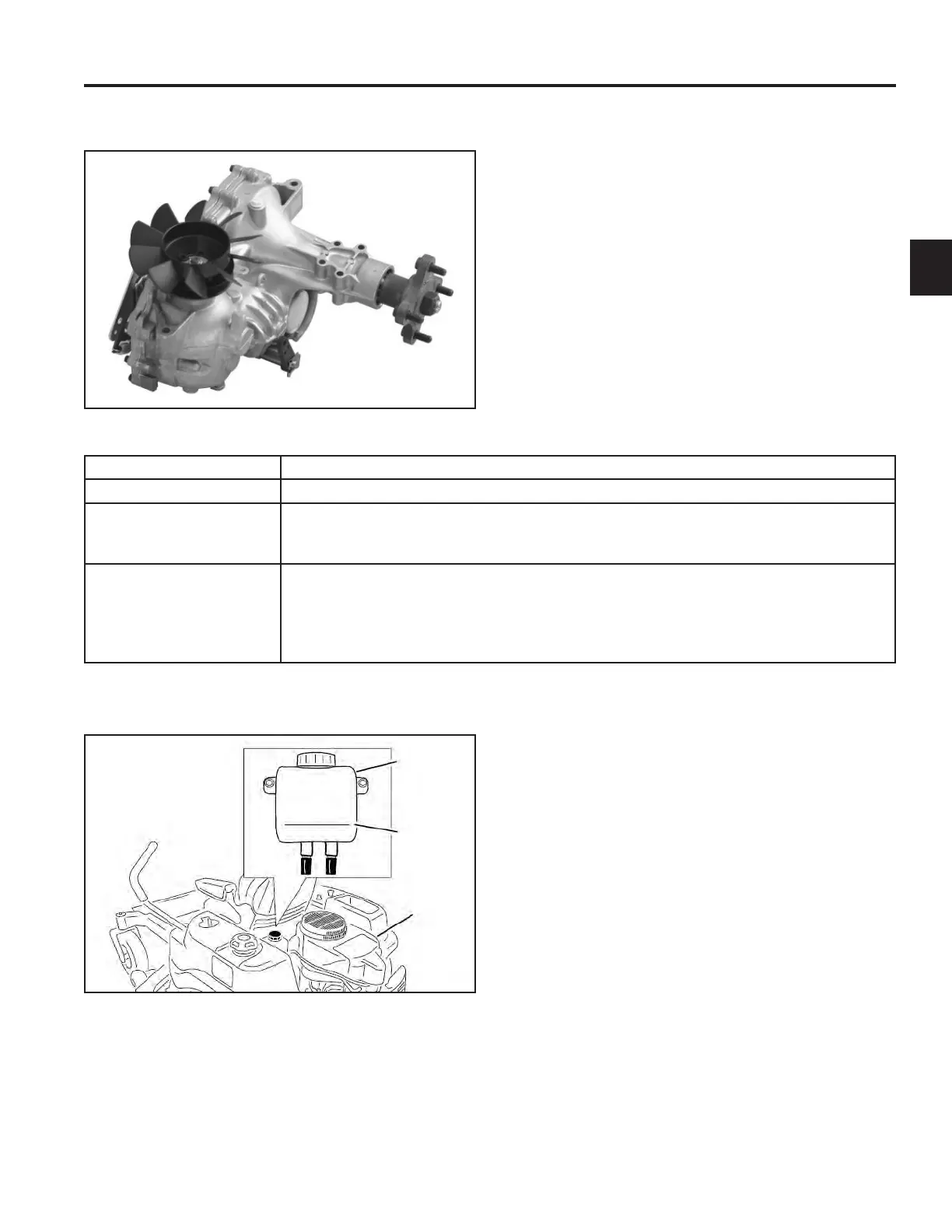

Fig. 003 PICT-1002
Lubrication Toro HYPR-OIL 500 or 20w50 Engine Oil
Oil Capacity ZT-2800 77.23 . oz. (2284ml) each
Oil Level Check Check expansion reservoir and if necessary add the specied oil to the FULL COLD
line. See illustration below. Also see the Hydro-Gear ZT-2800 service manual
(BLN-52441).
Fluid Change Interval After the First 50 hours - change the oil and lters for the hydraulic system and bleed
the system.
Every 400 Hours - change the oil and lters for the hydraulic system and bleed the
system.
Checking the Hydraulic Oil Level
Fig. 004 PICT-1003
A
C
B
A. Expansion reservoir C. Engine
B. Full cold line
