Toro TimeCutter SW5425 - Toro Timecutter SS;MX;ZS Service Manual

MOWER DECK
6-3
Toro Timecutter SS/MX/ZS Service Manual
6

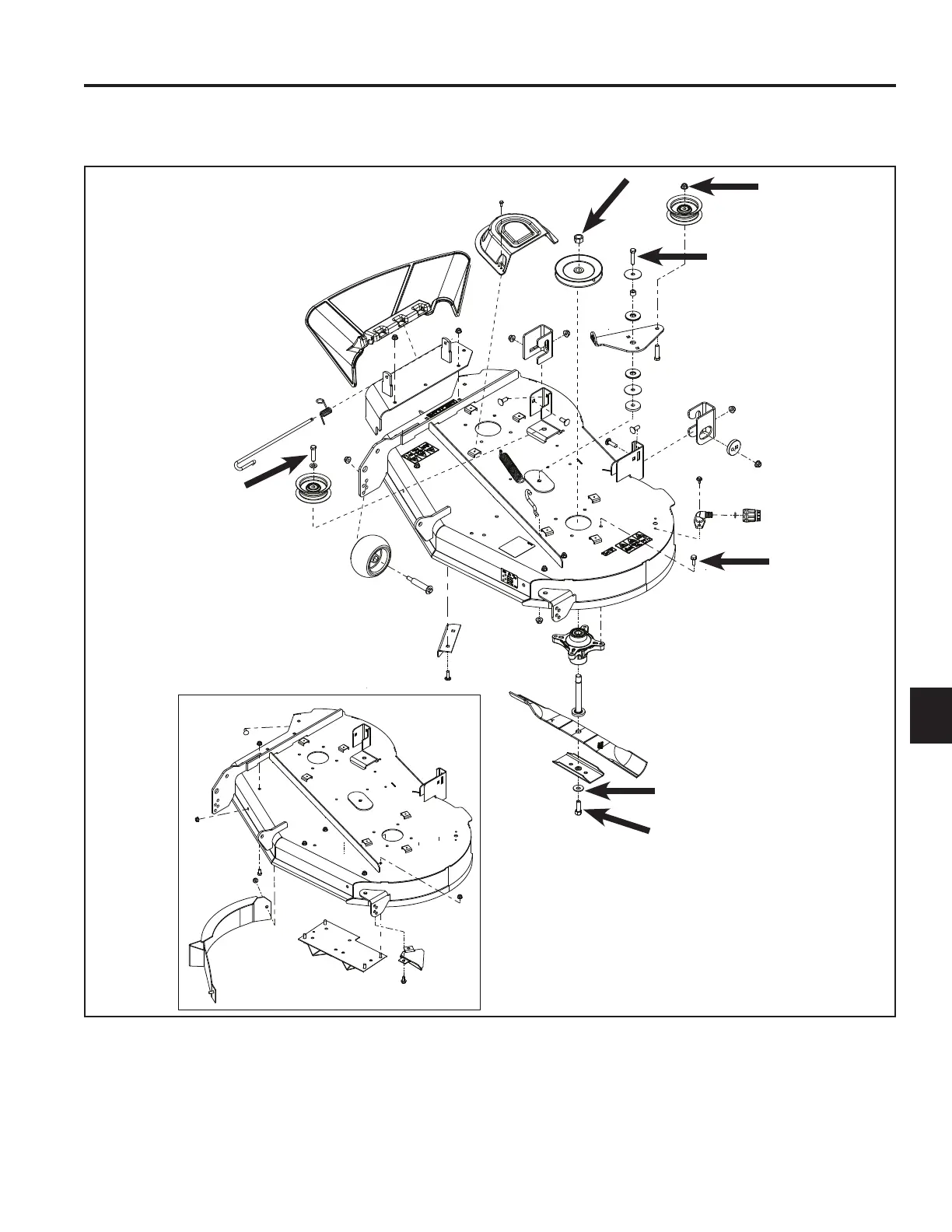

42 Inch Fabricated Deck
(Fig� 091)
Fig. 091 PICT-1058 42F
A� Blade bolt - 55 ft-lbs� (76 Nm)
B� Washer - concave side towards blade
C� Pulley nut - 55 ft-lbs� (76 Nm)
D� 30 ft-lbs� (40 Nm)
E� Spindle housing-to-deck bolts (8) - 17 ft-lbs� (23 Nm)
ZS Models Only
D
D
D
E
C
A
B
