MOWER DECK
6-2
Toro TimeCutter SS/MX/ZS Service Manual
6

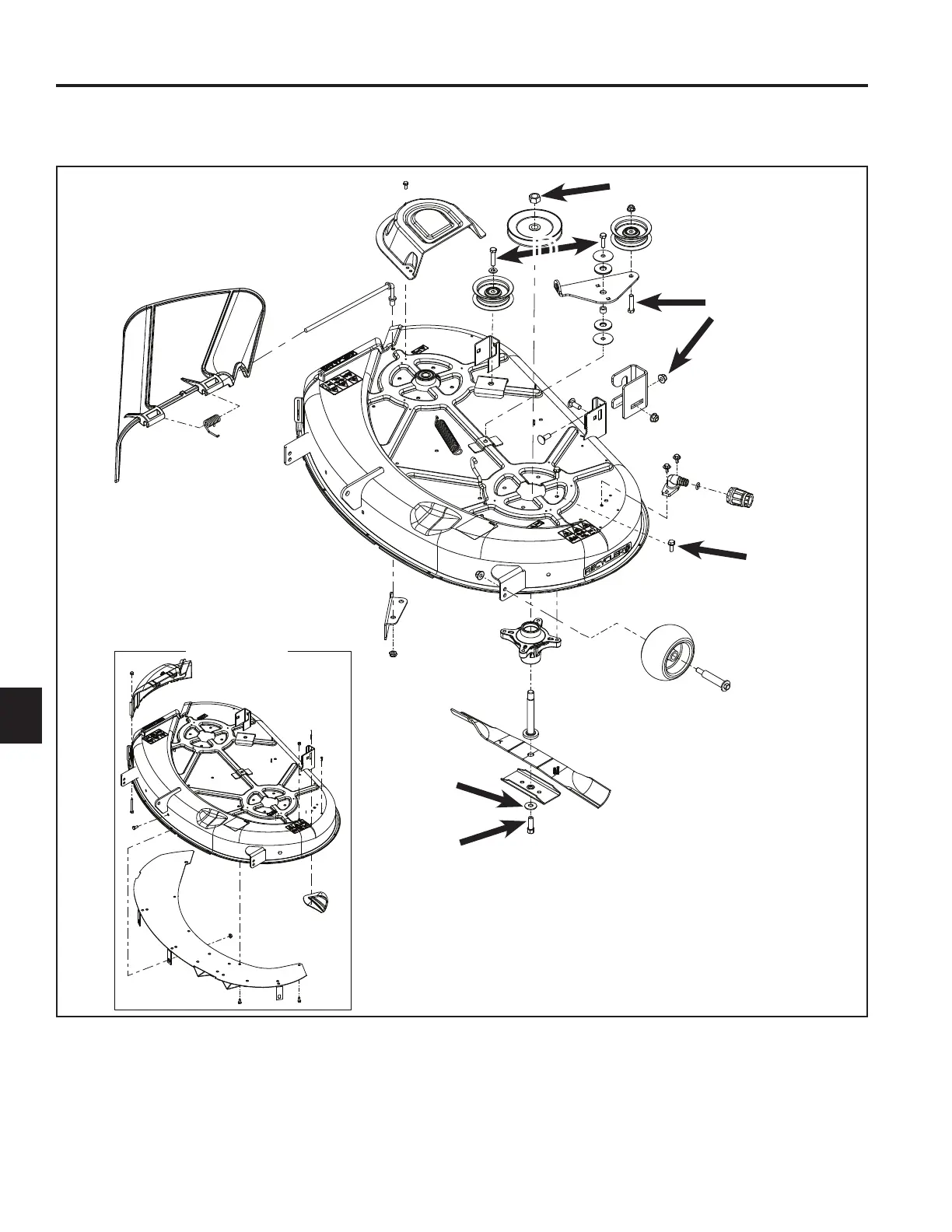

Fig. 090 PICT-1056 42S
42 Inch Stamped Deck
(Fig� 090)
A� Blade bolt - 55 ft-lbs� (76 Nm)
B� Washer - concave side towards blade
C� Pulley nut - 55 ft-lbs� (76 Nm)
D� 30 ft-lbs� (40 Nm)
E� Spindle housing-to-deck bolts (8) - 17 ft-lbs� (23 Nm)
ZS Models Only
C
D
E
D
A
B
