Toro TimeCutter SW5425 User Manual

MOWER DECK
6-6
Toro TimeCutter SS/MX/ZS Service Manual
6

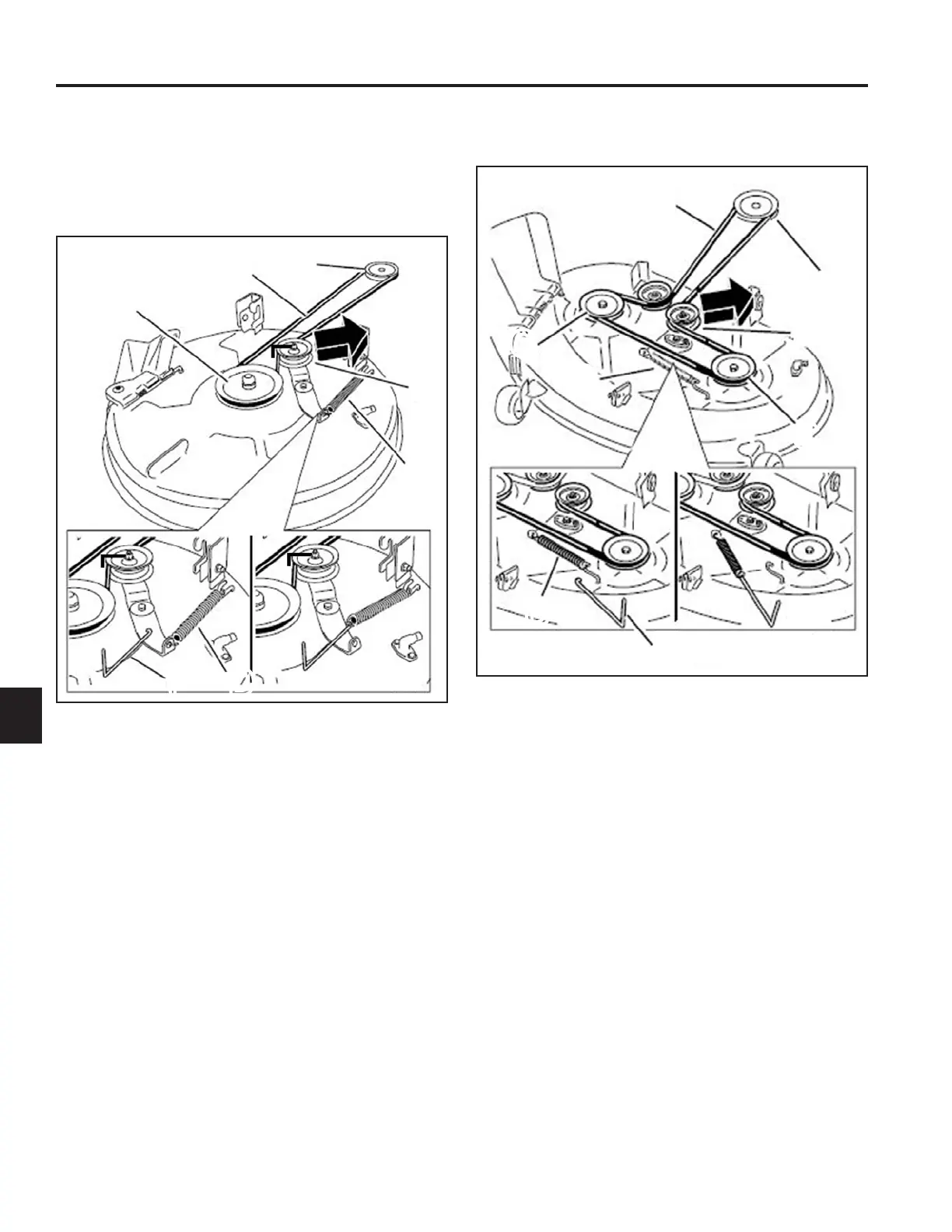

PTO Belt Replacement and Belt
Routing
32 Inch Stamped Deck
(Fig� 094)
Fig. 094 PICT-1061b
42 Inch Stamped Deck
(Fig� 095)
Fig. 095 PICT-1062a
A� Idler pulley D� Spring
B� Deck belt E� Engine pulley
C� Spindle pulley F� Spring tool
A� Idler pulley D� Spring
B� Deck belt E� Engine pulley
C� Spindle pulley F� Spring tool
A
D
D
F
E
B
C
A
E
F
B
C
D
D
C
