MOWER DECK
6-10
Toro TimeCutter SS/MX/ZS Service Manual
6
Mower Deck Installation
1� Park the unit on a level surface and disengage the
PTO switch�
2� Move the motion control levers outward to the park
position, stop engine, remove key, and wait for all
moving parts to stop before leaving the operating
position�
3� Slide the deck under the unit�
4� Set the height-of-cut to the lowest position�
5� Lift the rear of the deck and guide the hanger
brackets onto the rear lift rod (Fig� 103)�

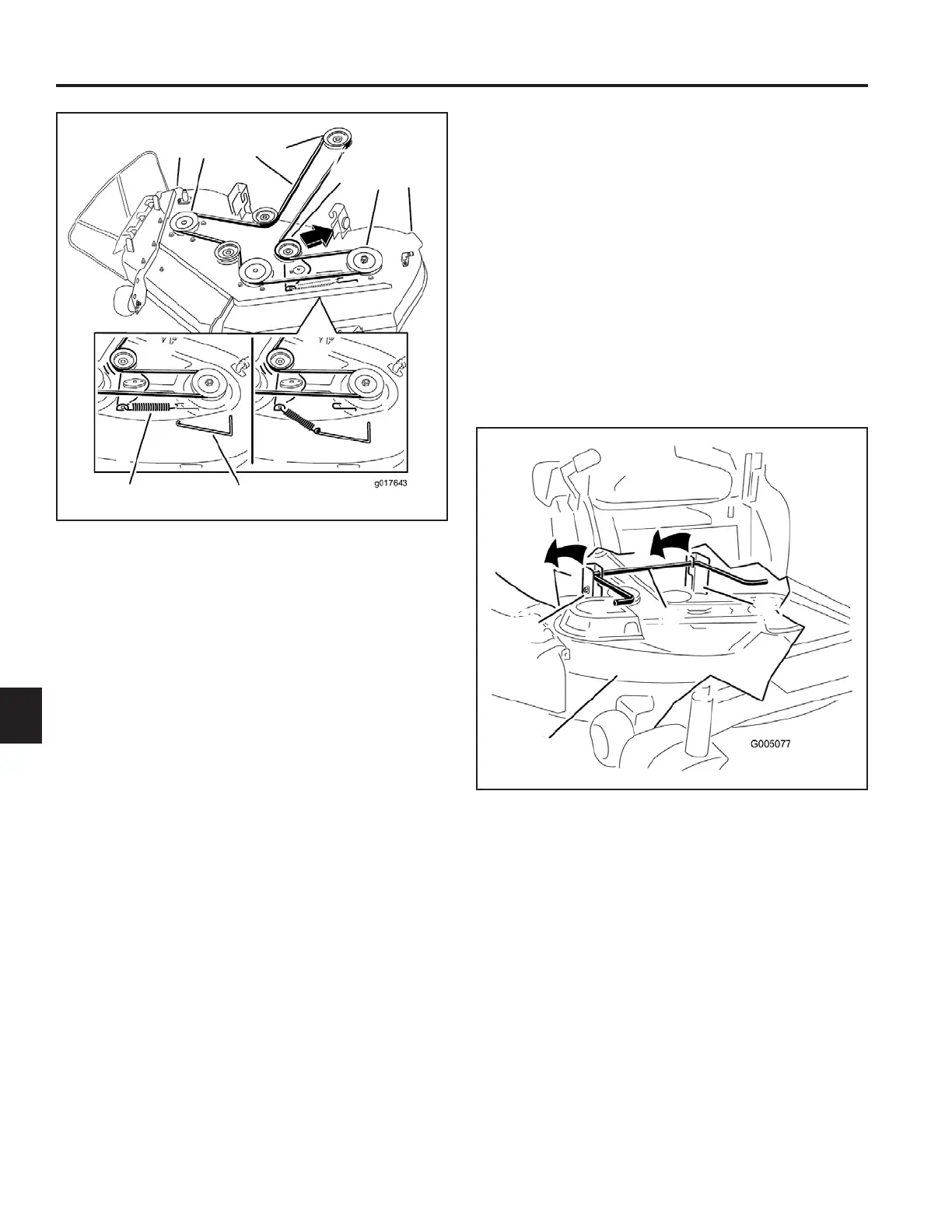

Fig. 102 g.62G017643
6� Slide the deck rearward to remove the deck belt
from the engine pulley�
7� Slide the deck out from underneath the unit�
Note: Retain all parts for future installation.
A� Idler pulley E� Engine pulley
B� Deck belt F� Spring tool
C� Spindle pulley G� Deck handles
D� Spring
A
B
C
G
D F
E
C
G
Fig. 103 g.61G005077
A� Deck C� Rear lift rod
B� Hanger brackets
A
B
B
C
