CHASSIS
3-6
Toro TimeCutter SW/SWX Service Manual
3

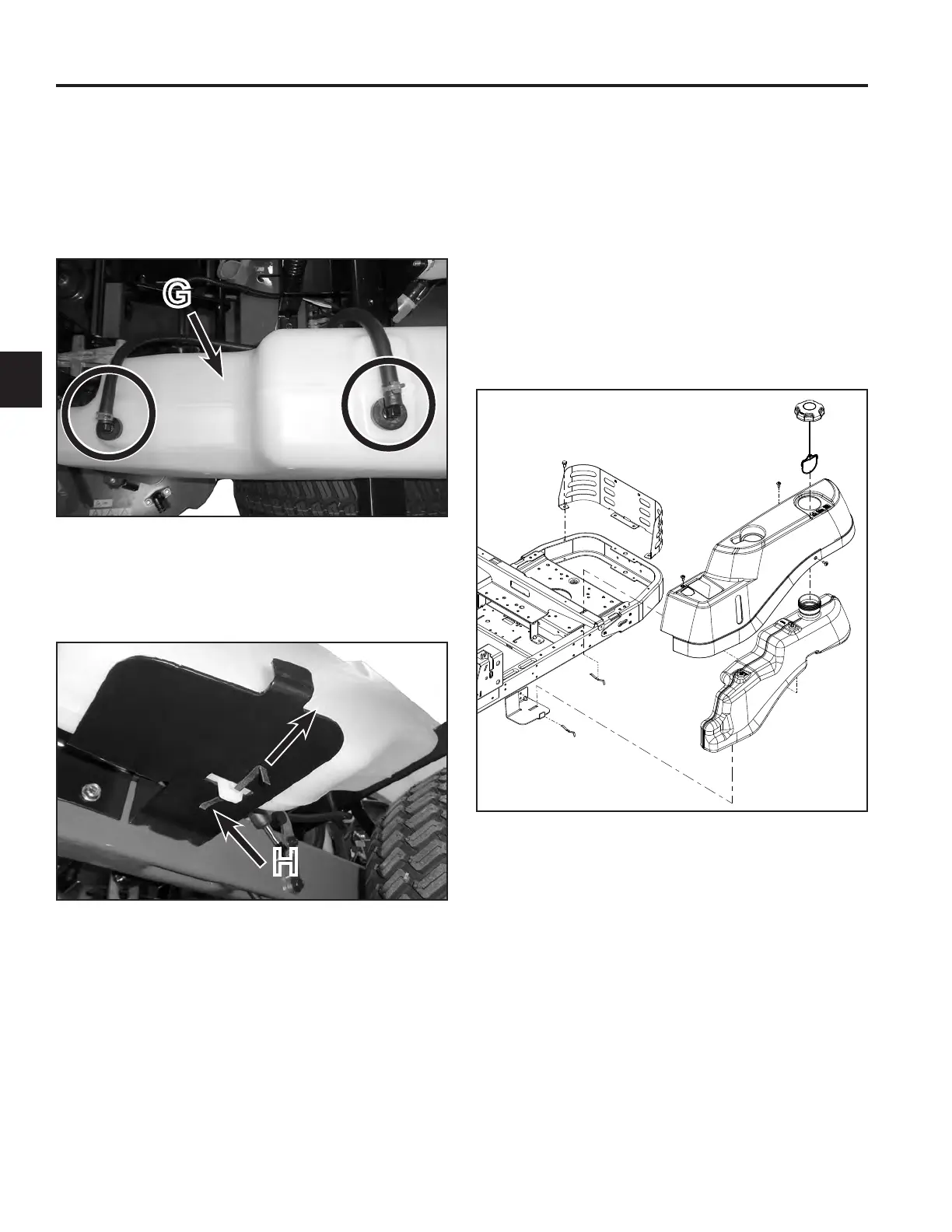

Fuel Tank Removal
1. Remove LH fender as shown in this chapter.
2. Disconnect and properly secure the (2) fuel / vent
lines from the top of fuel tank assembly (G).
(Fig. 013)
Fuel Tank Installation
1. Position fuel tank assembly (G) into the frame slots.
2. Install the (2) fuel tank retaining springs (H) to
secure fuel tank to the frame.
3. Properly connect the (2) fuel / vent lines.
4. Install LH fender as shown in this chapter.
5. Verify proper installation of the fuel tank and fuel /
vent lines.
(Fig. 015)
Fig. 013 PICT-1054
Fig. 015 PICT-1041
3. Remove the (2) fuel tank retaining springs (H) by
pulling them outward (Fig. 014).
Fig. 014 PICT-1042
4. The fuel tank is now loose and can be removed
vertically from the frame.
H
G
H
H
G
