CHASSIS
3-23
Toro TimeCutter SW/SWX Service Manual
3
SPEED CONTROL ASSEMBLY - ZERO TURN TRACTOR

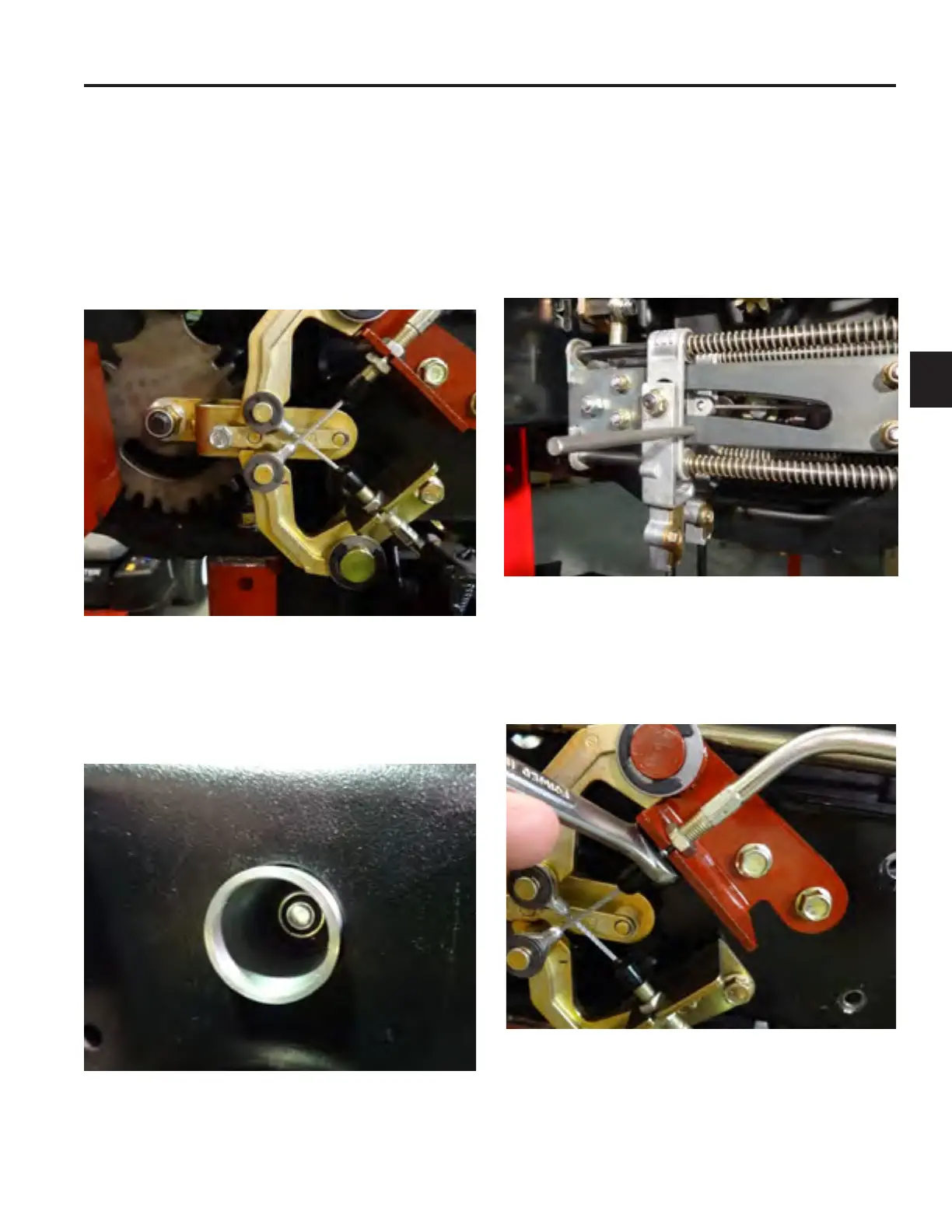

Cable Adjustment
1. When the cables are properly adjusted, both of
the cable arms will contact the cabel lever at the
same time when the wheels are straight and the
traction pedal is in neutral
The cable arms should contact the rollers
and stop on the bracket before the cables are
installed and adjusted.
2. If adjustment is required, rst make sure the
wheels are straight forward and insert the
steering arm spacer over the center nut. Refer
to “Steering System - Alignment” Service
Information Sheets for more detail.
3. Insert a 1/4 in. dowel pin through the center
hole on the speed control assembly to lock the
speed control assembly in place. The dowel
should be pushed through the hole far enough
to hold both slide assemblies in place.
4. Loosen the jam nut on the cable and lengthen or
shorted the cable as needed.
