CHASSIS
3-24
Toro TimeCutter SW/SWX Service Manual
3

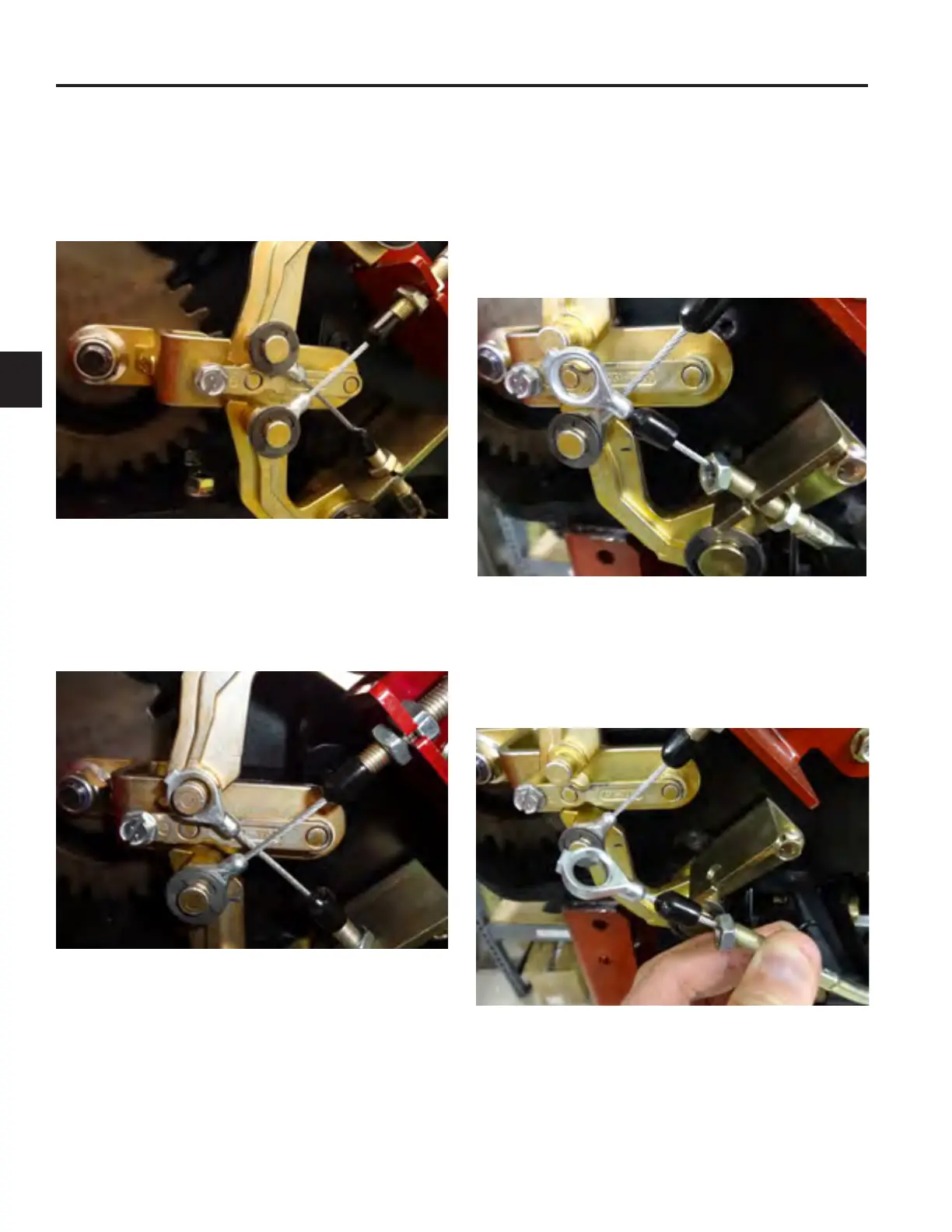

5. When the cables are adjusted correctly, both
steering arms will be contacting the steering link
and the cables will be tight.
6. Tighten the jam nuts and remove the dowel pin.
Cable Removal
1. Remove the E-clip and washer securing the
cable to the cable arm.
2. Slide the cabel cover off of the threaded portion
of the cable. Loosen the jam nut on the cable
and move the lock nut all the way down the
cable.
3. Slide the cable through the slit in the bracket to
remove the cable from the bracket.
