CHASSIS
3-20
Toro TimeCutter SW/SWX Service Manual
3
RETURN TO NEUTRAL ASSEMBLY - ZERO TURN TRACTOR

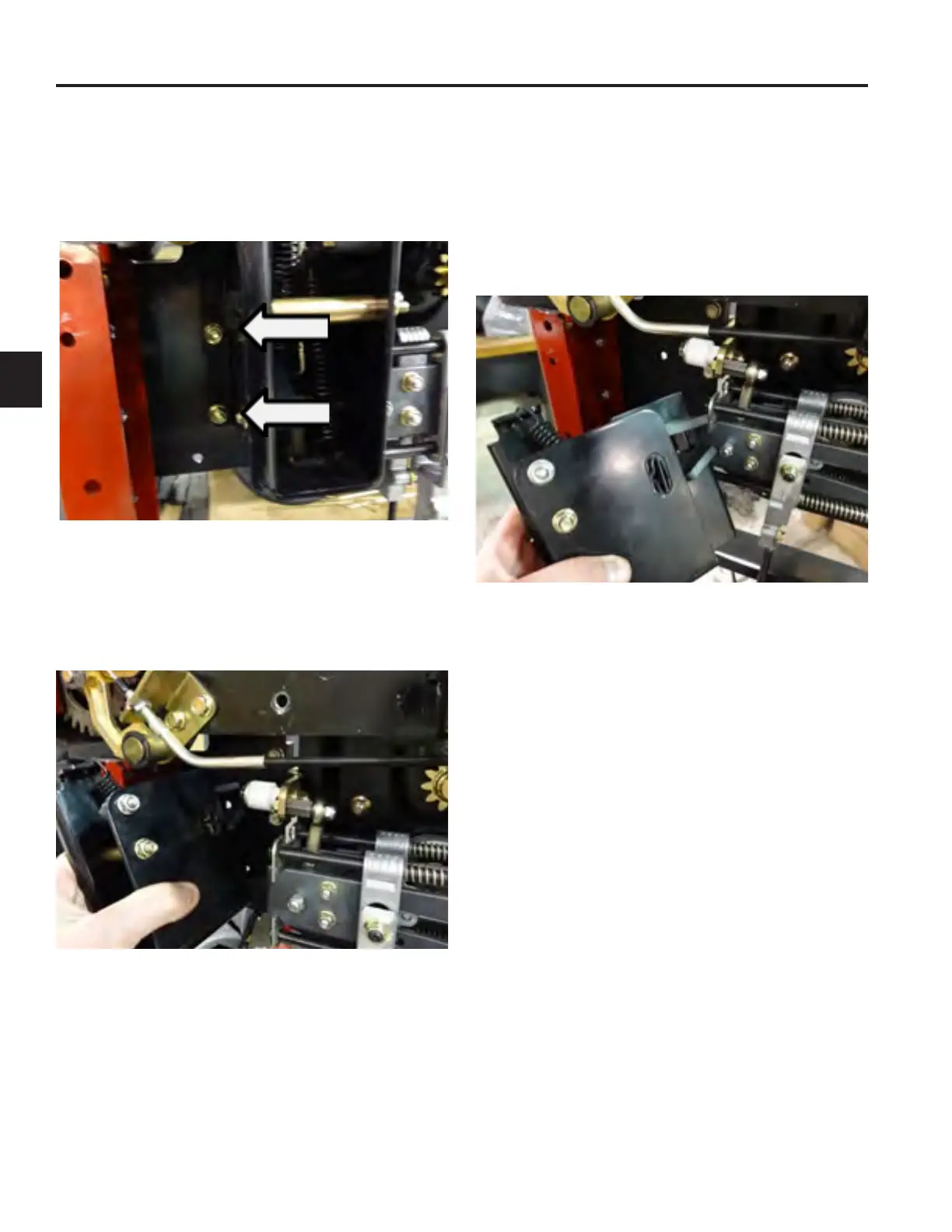

Return to Neutral Assembly Removal
1. Remove the two bolts holding the RTN assembly
to the chassis.
2. Slide the unit to the side and remove the switch
connectors from the switches.
3. Remove the assembly.
