CHASSIS
3-8
Toro TimeCutter SW/SWX Service Manual
3
CNZ0009a
Front Column
Pivot Bracket
Upper Steering Shaft
Back Column

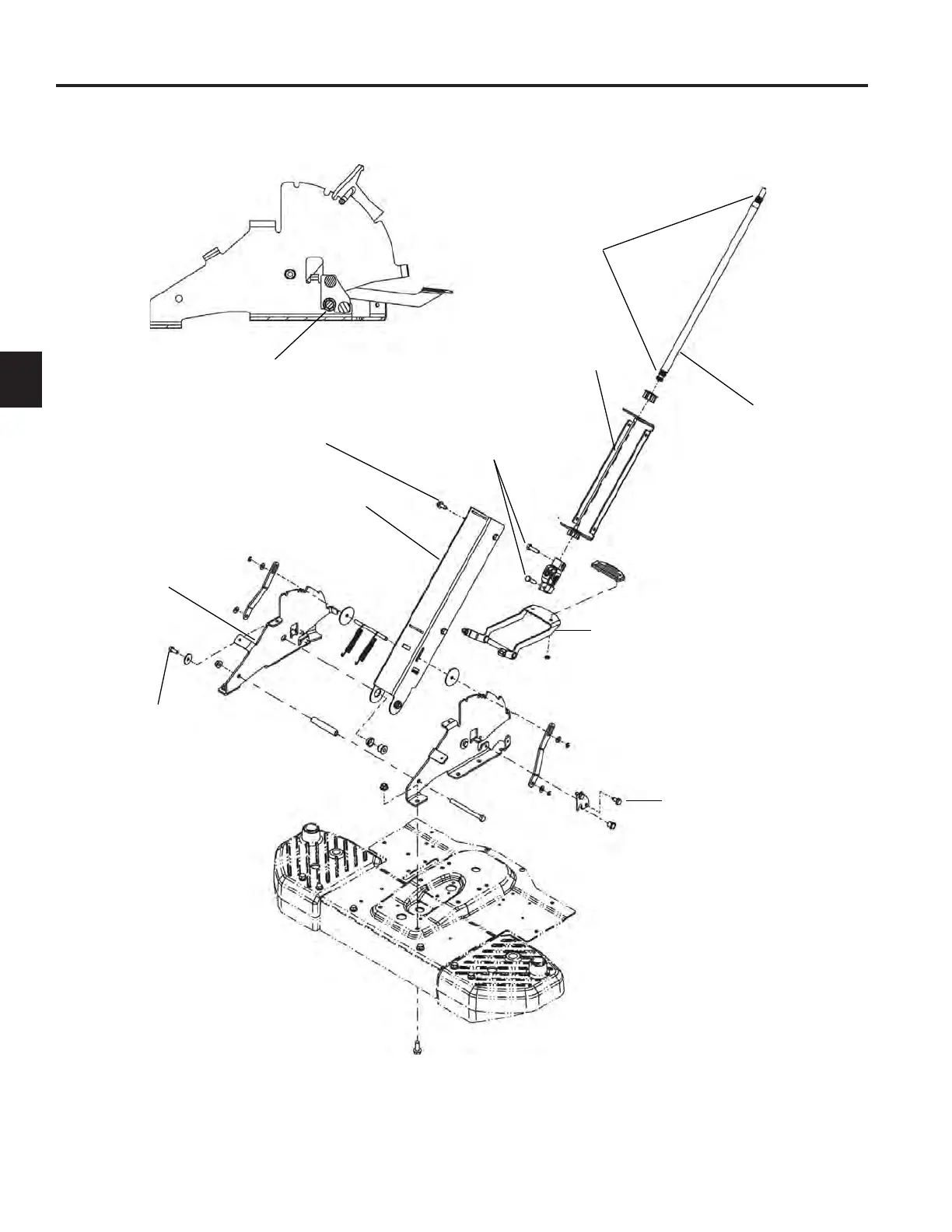

STEERING COLUMN – ZERO TURN TRACTOR
Pedal Asm Release
Apply Blue
Loctite. Torque to
175-225 in-lbs
(20-26 Nm)
Apply Blue Loctite
Flange of bushing is located on the outside
of the retainer plate.
Apply anti-seize to
upper shaft splines
and U-joint splines
Torque to 150-200 in-
lbs (17-23 Nm)
Torque to 150-200 in-
lbs (17-23 Nm)
