CHASSIS
3-13
Toro TimeCutter SW/SWX Service Manual
3
FRONT SHROUD - ZERO TURN TRACTOR

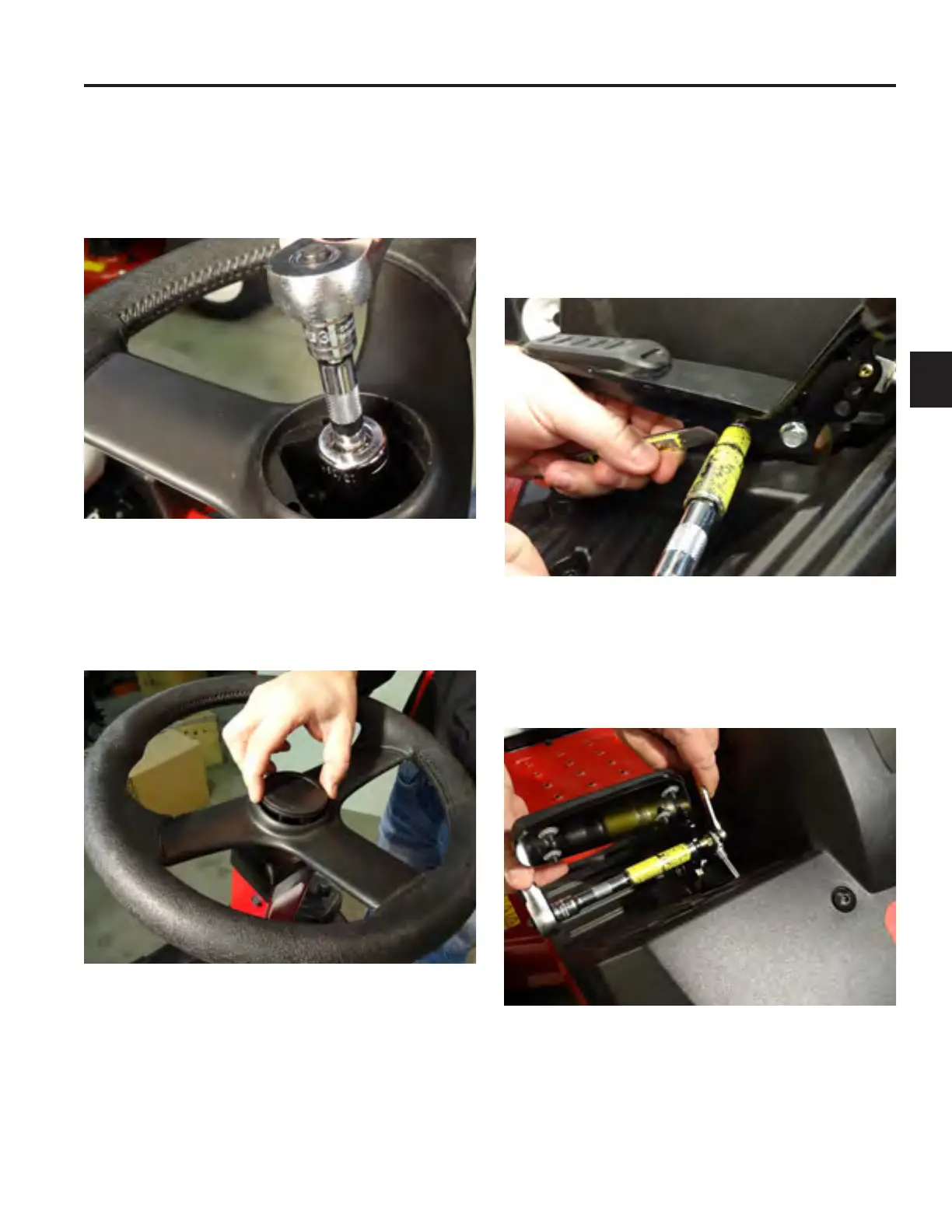

5. Install the lock nut and torque to 27-44 ft-lbs (37-
46 Nm).
6. Install the steering wheel cap.
7. Install the traction pedal to the pedal pivot mount,
torque to 5 ft-lbs. (7 Nm).
8. Install the damper to the traction pedal.
Note: It must be placed in the correct position,
torque to 5 ft-lbs. (7 Nm).
